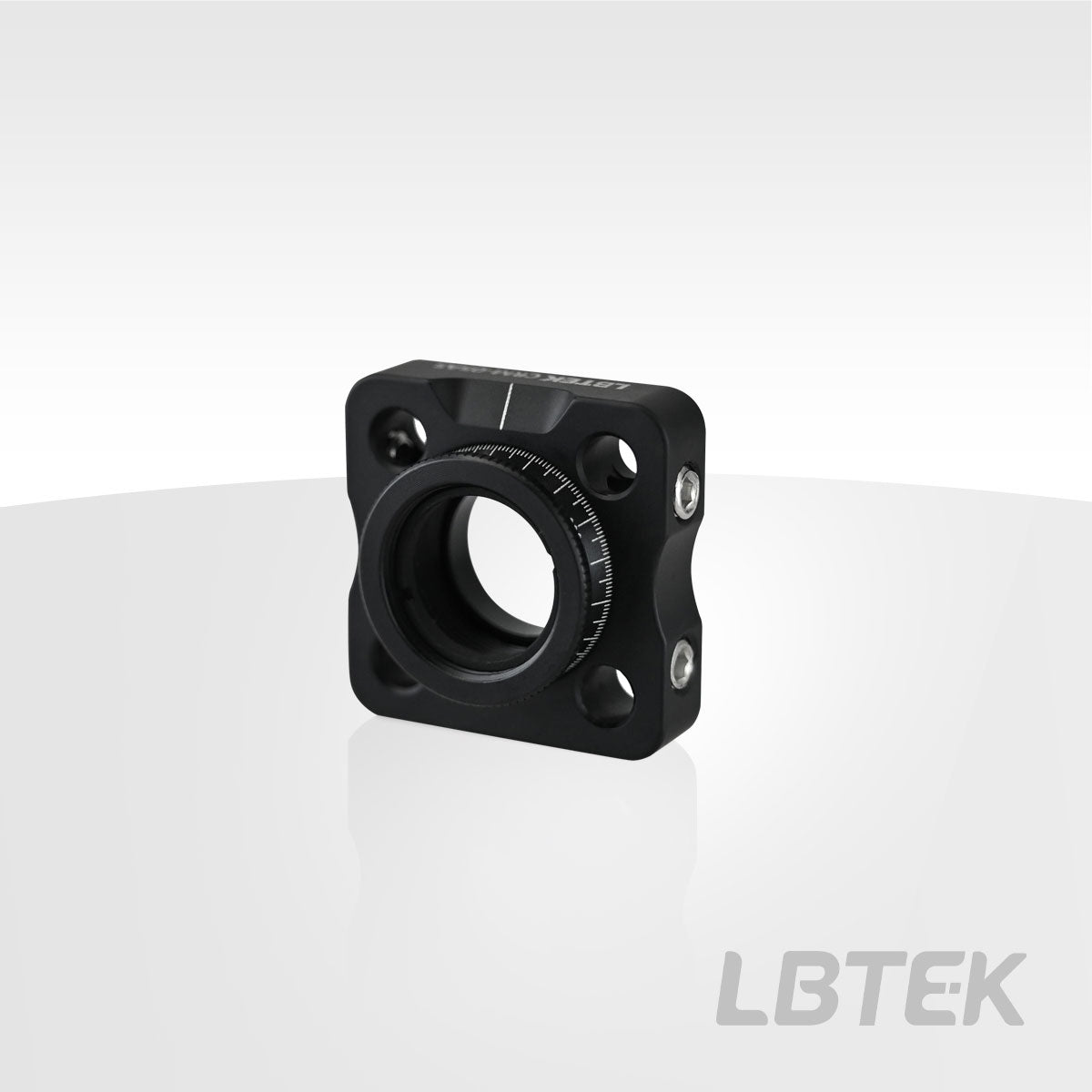

16mm Coaxial System Rotary Adjustment Mount
LBTEK 16 mm Coaxial System Rotation Mount, compatible with 16 mm coaxial systems, designed for mounting Ø12.7 mm optical components with retaining ring fixation. The mount provides continuous 360° rotation with 2° scale precision, featuring angle markings every 40°. Equipped with a side M4 rubber-tipped locking screw (compatible with 2 mm hex wrench) for rotation locking. Includes four Ø4 mm through holes for mounting to 16 mm coaxial systems via side M4 set screws. The base contains M3 threaded holes for connecting to mounting posts in free-space applications.
