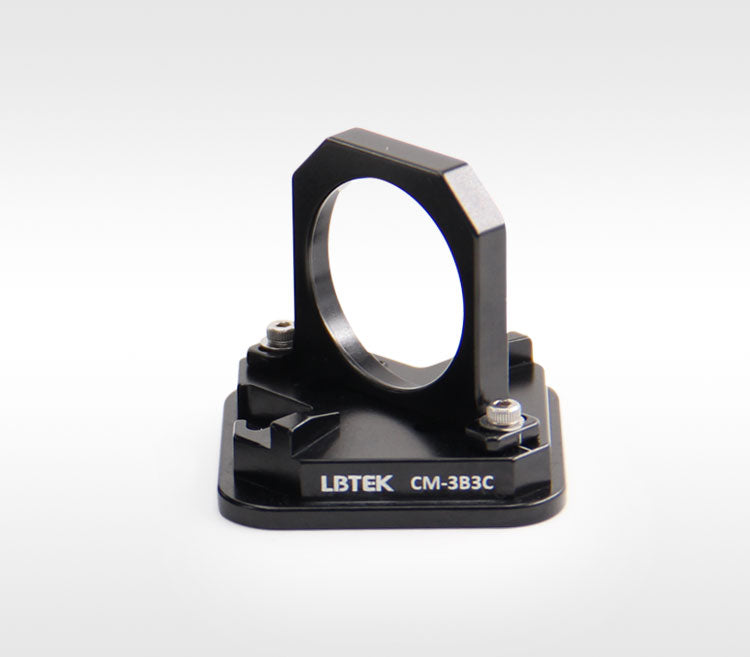

30 mm coaxial flat optical element mount

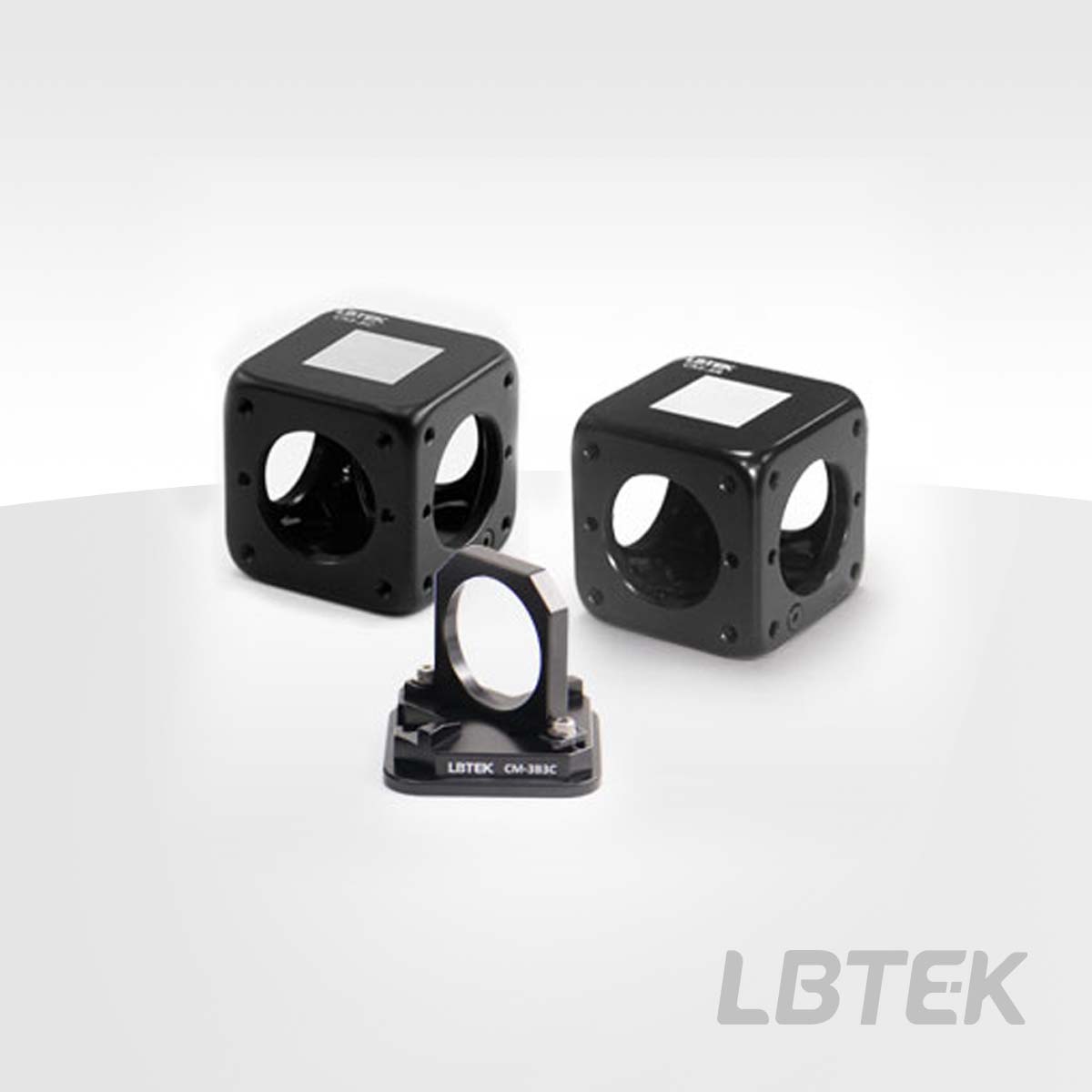

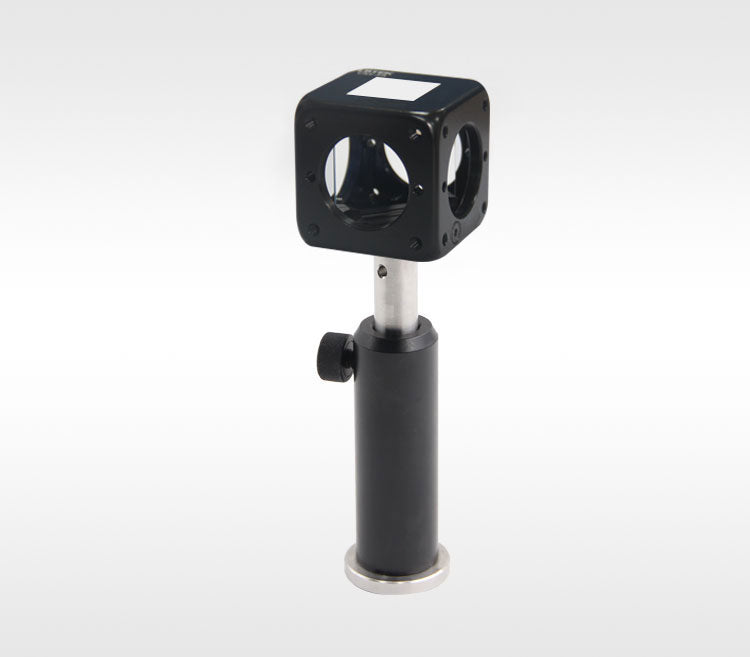

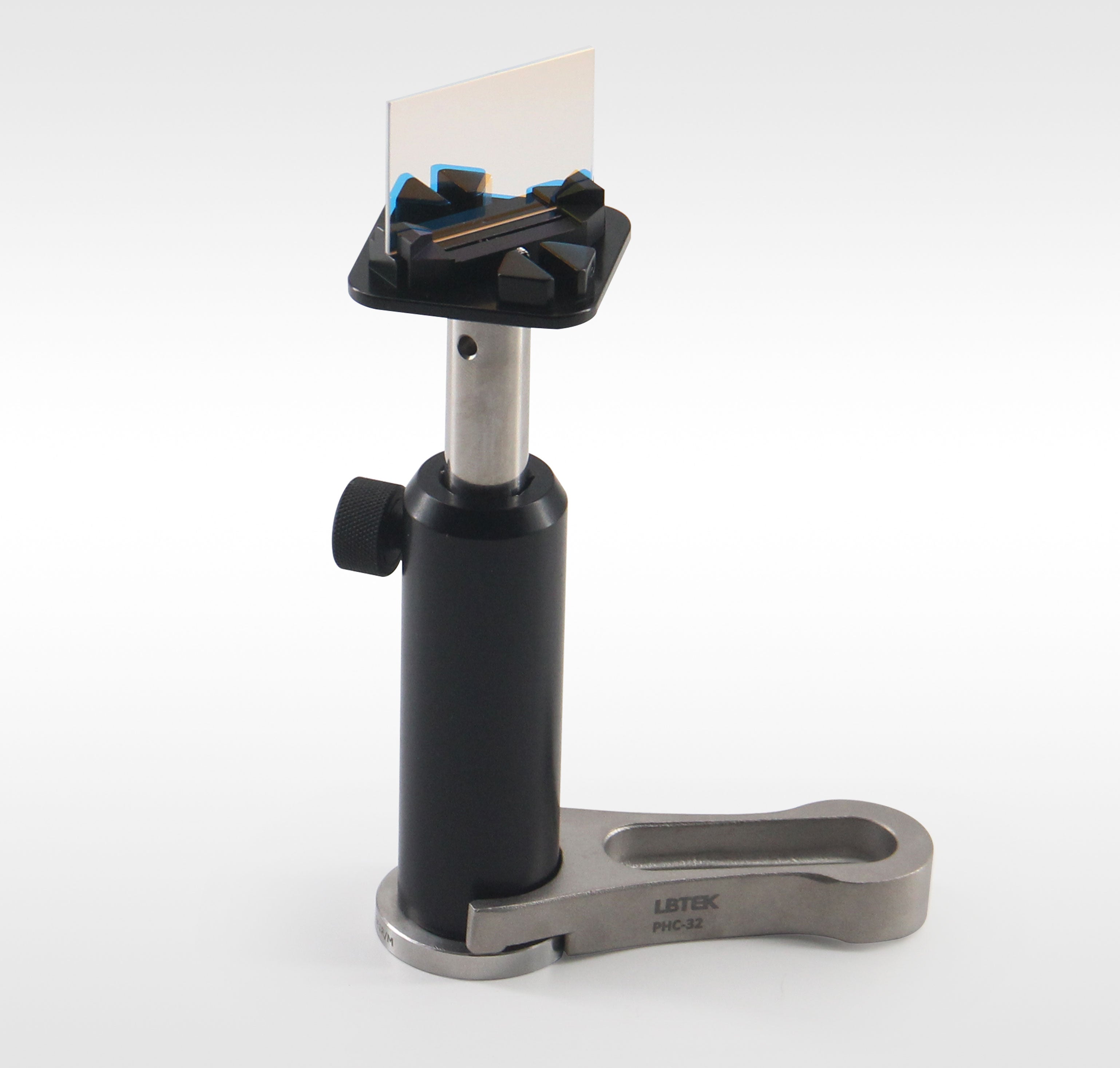

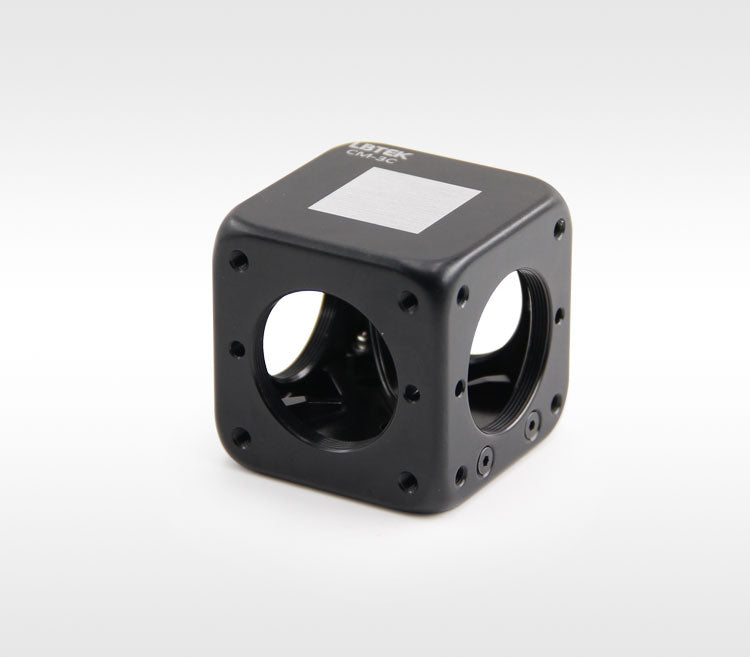

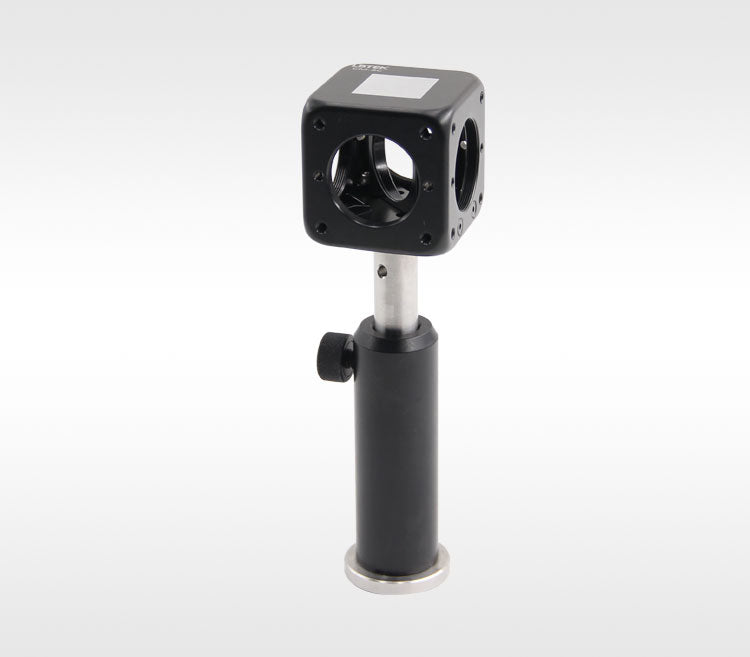

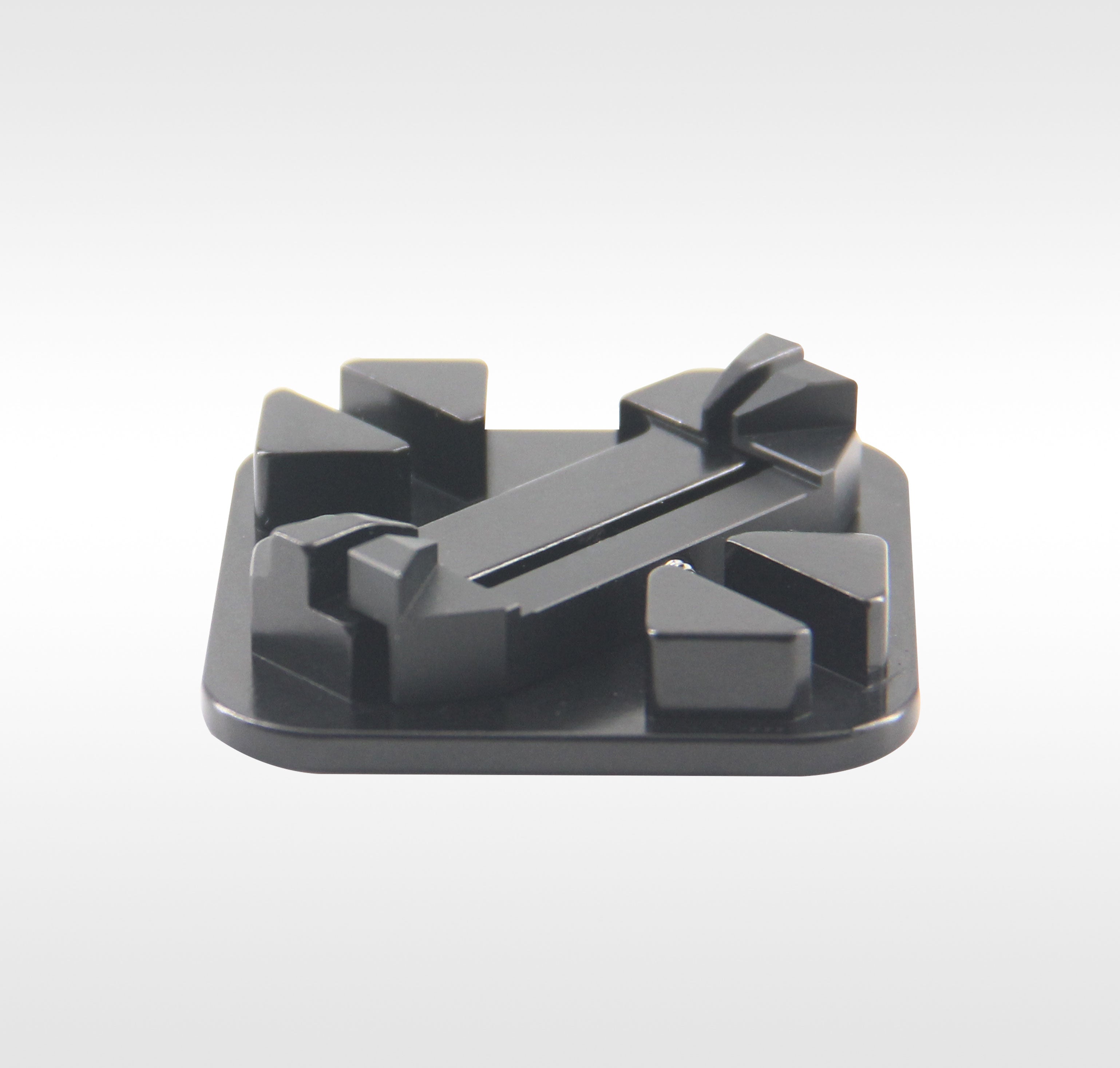

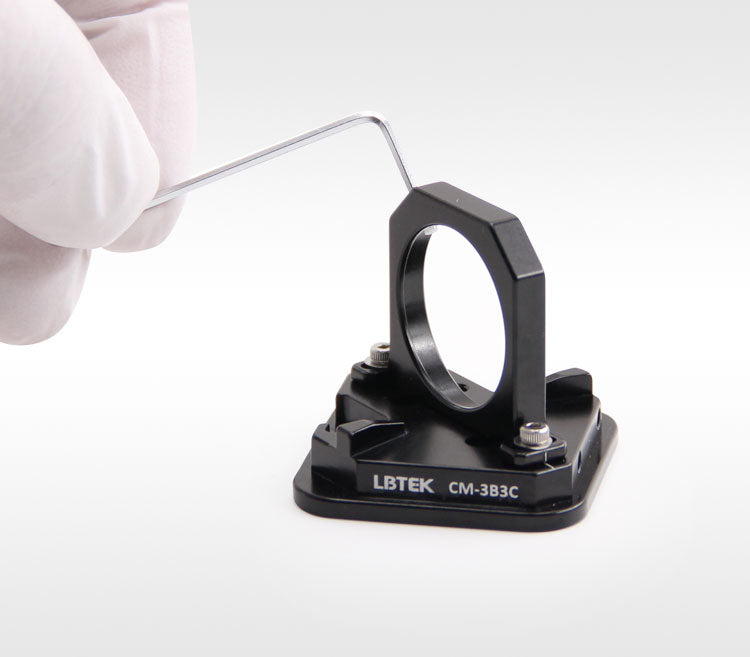

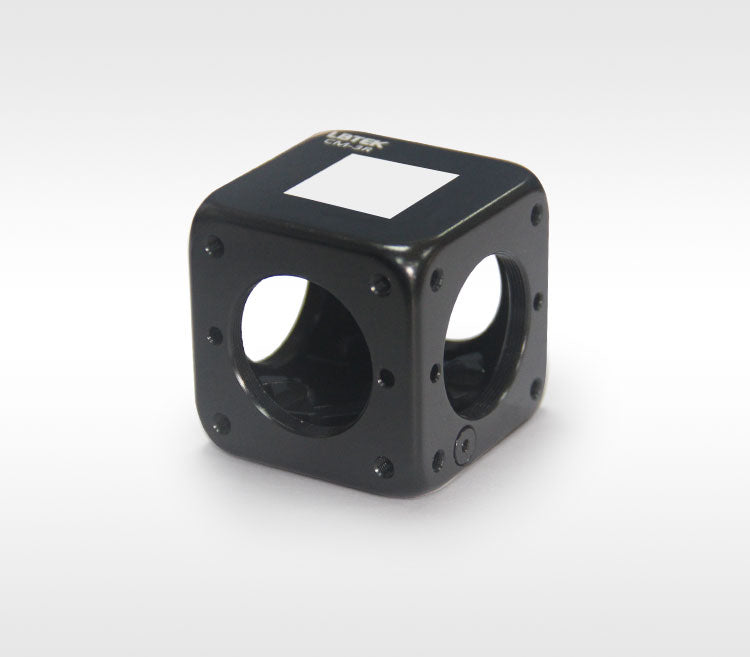

The LBTEK coaxial flat optical component mount is commonly used for 45° installation of circular and rectangular optical components, such as dichroic mirrors and other optical components. The CM-3C can directly mount optical components with a diameter of Ø25.4 mm and a thickness range from 3 mm to 8 mm; the CM-3R is suitable for mounting rectangular optical components with dimensions of 36 mm × 25 mm, with a maximum thickness of 3 mm. The mount includes a coaxial cube, which can be used to install a 30 mm coaxial system while also protecting the optical components. The base of the mount features an M4 threaded hole for connecting to a Ø12.7 mm stainless steel optical post.
