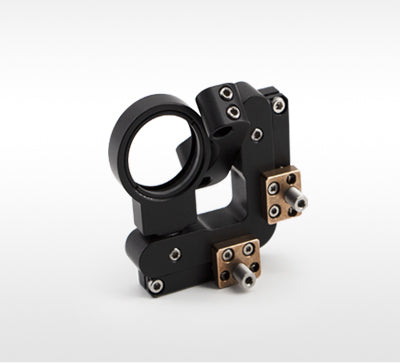

30 mm Coaxial Gimbal Mount

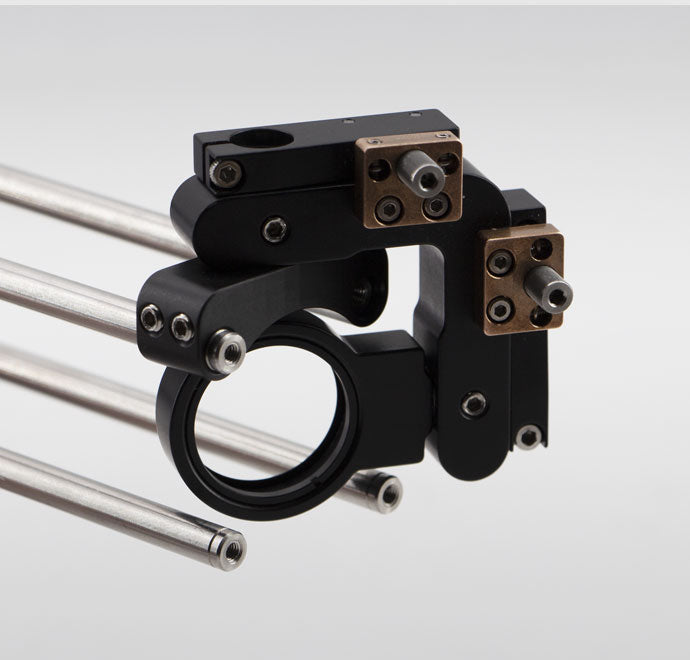

The 30 mm coaxial gimbal mount provided by LBTEK features a gimbal adjustment design, allowing optical components to rotate 360° around the center point within a coaxial system. It offers both coarse and fine adjustment modes, enabling 360° rough adjustment of optical components before locking. After locking, fine-tuning can be performed using the adjuster to achieve omnidirectional adjustment. It can accommodate optical components with a maximum thickness of 6 mm and Ø25.4 mm, designed for use in 30 mm coaxial systems.
