30 mm coaxial system XYZ displacement adjustment plate

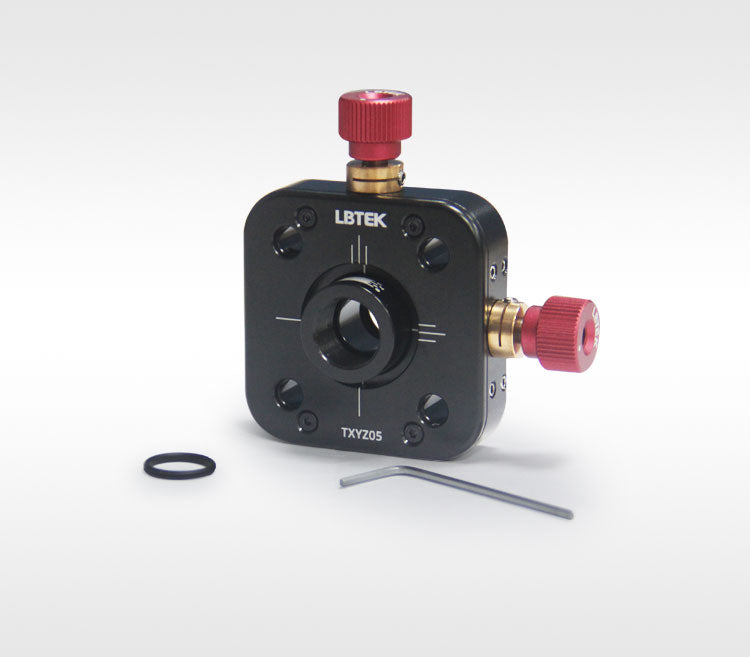

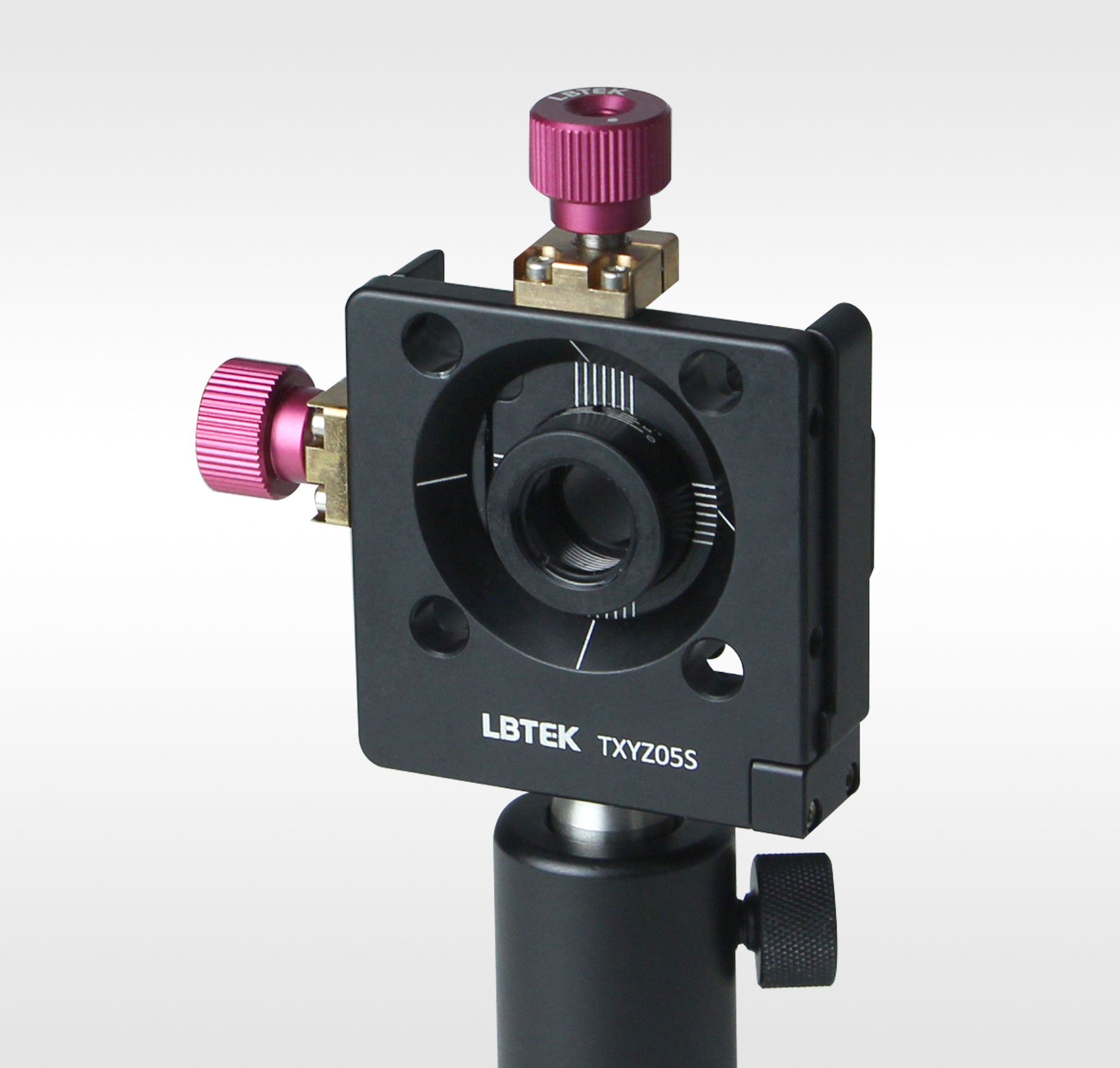

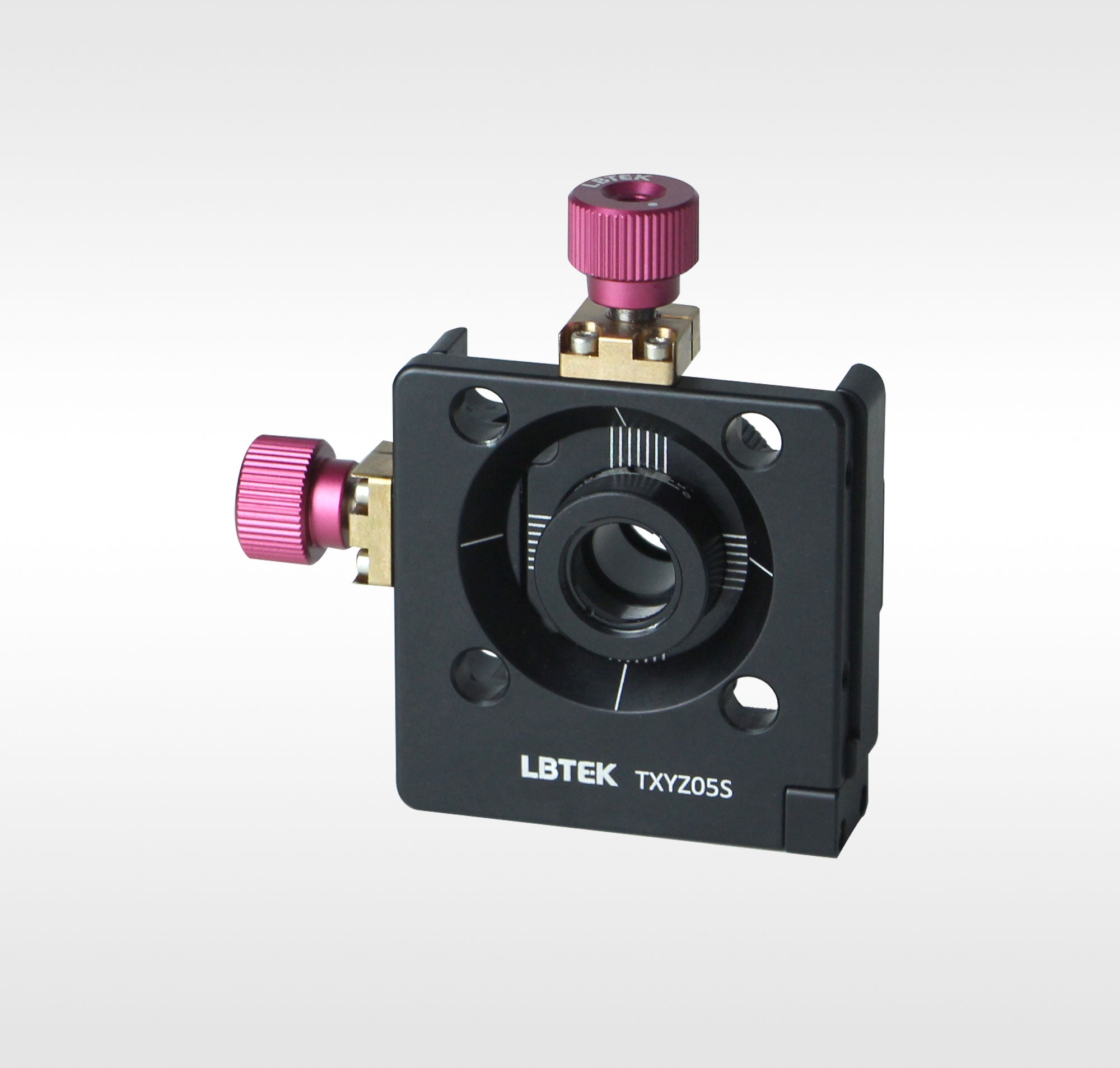

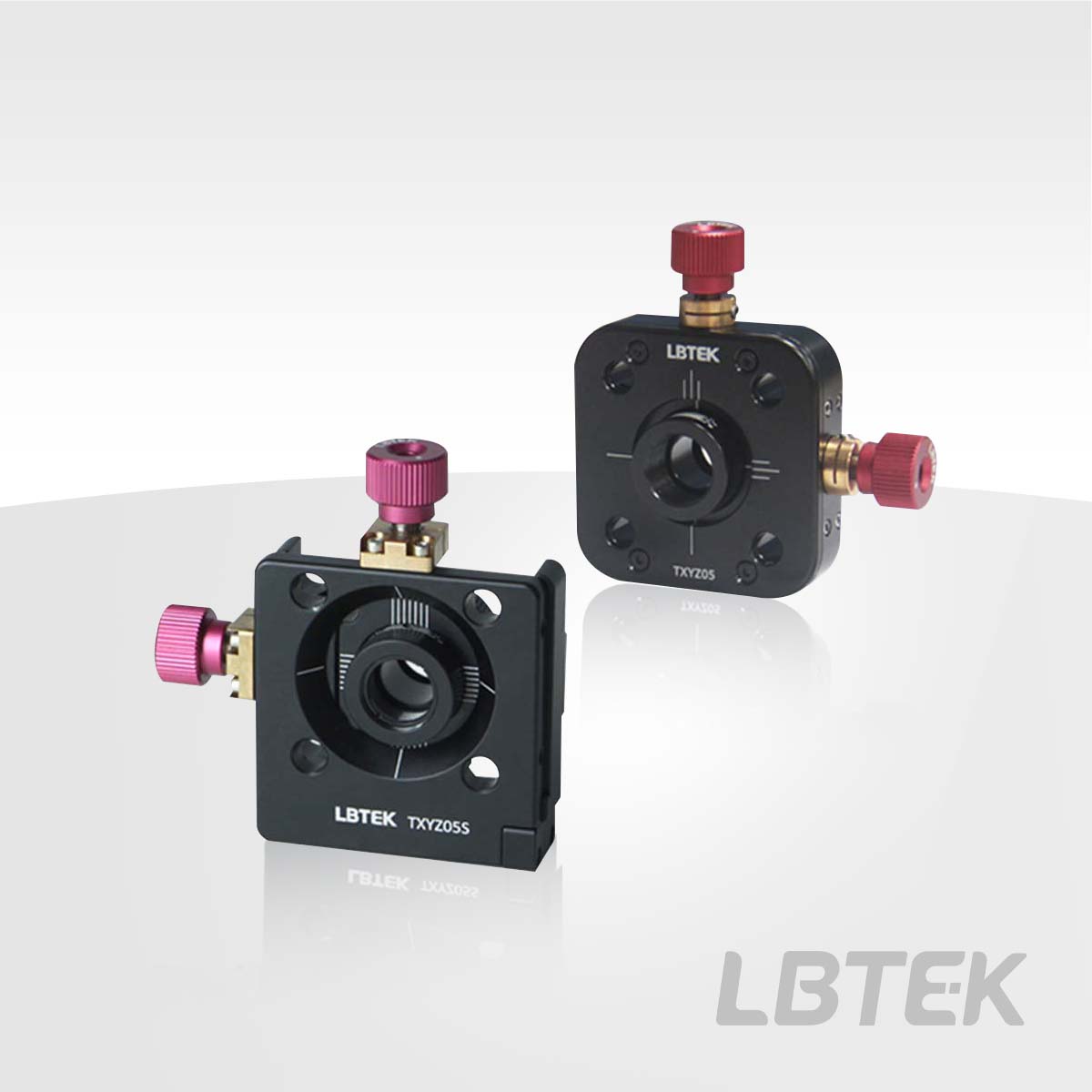

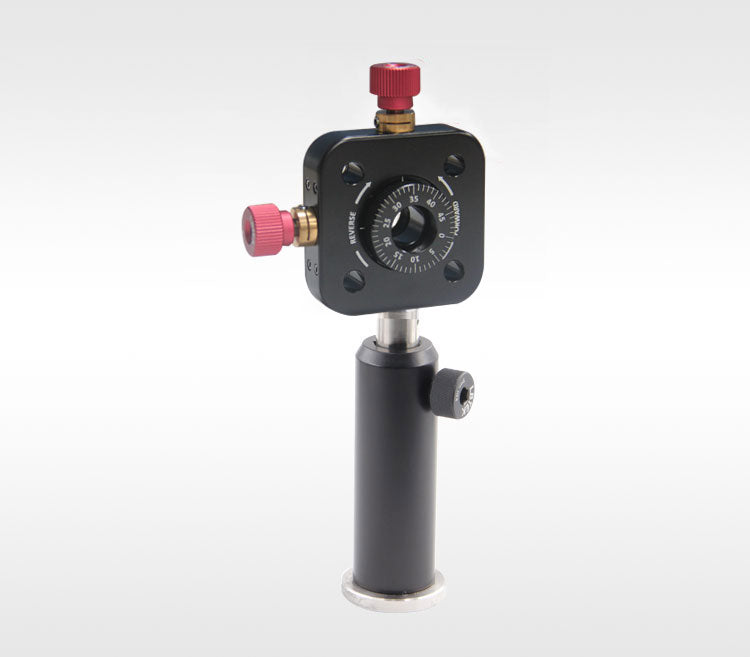

The LBTEK XYZ translation stage is designed for mounting Ø12.7 mm optical components, enabling precise adjustments in the XYZ directions. The stage offers a travel range of ±1.5 mm/±2.0 mm in the XY directions and ±1.5 mm in the Z direction, with adjustment precision of 0.25 mm/revolution in XY and 0.5 mm/revolution in the Z-axis. It features a central SM05 internal thread and includes a retaining ring for securing optical components. Compatible with 30 mm coaxial systems, it has a Ø6 mm through-hole on the side with an M3 set screw (compatible with 1.5 mm hex wrench) for fixing coaxial system mounting rods. The base includes threaded mounting holes for attaching optical posts.
