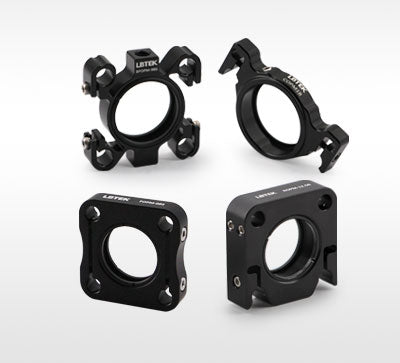

30 mm Flexible Coaxial Mounting Plate

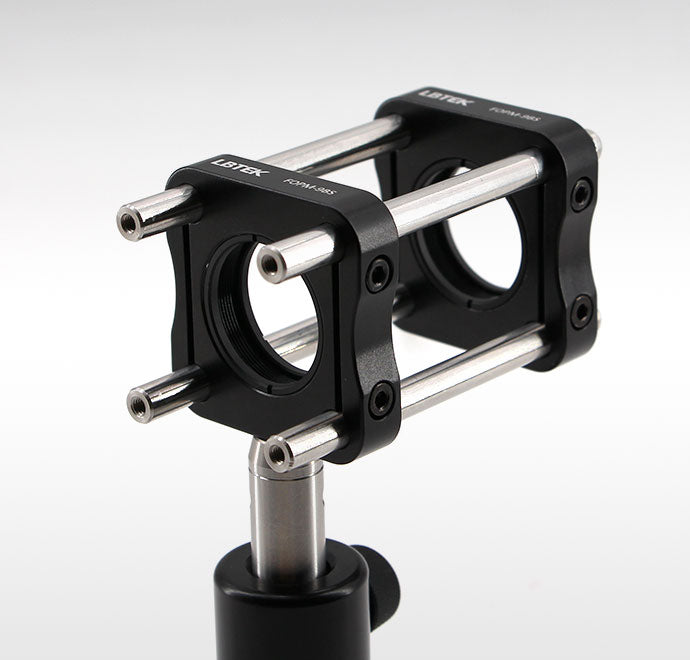

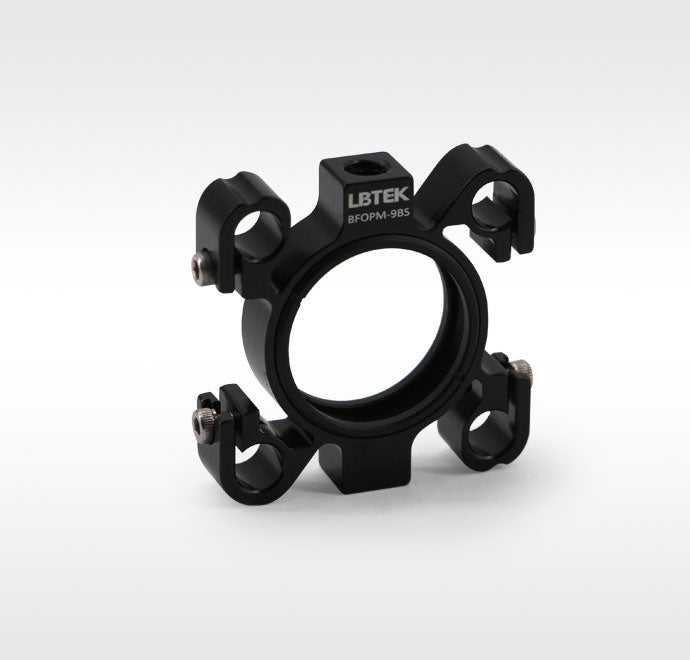

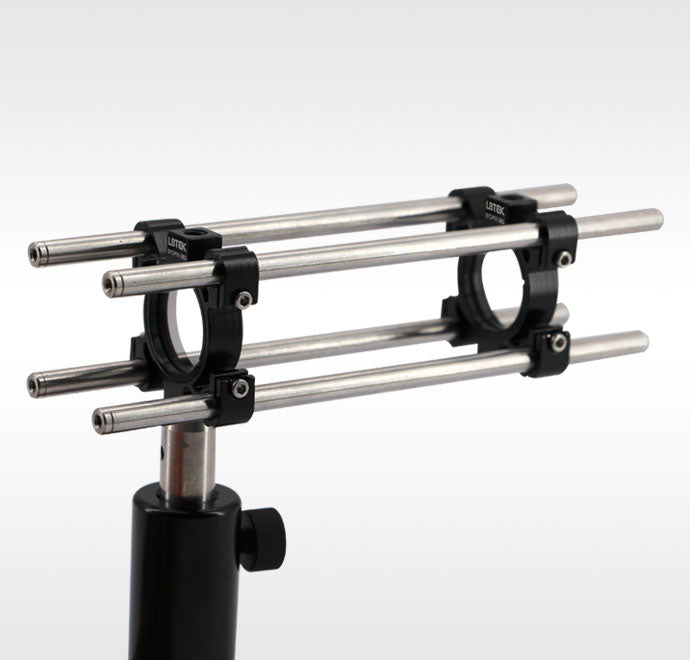

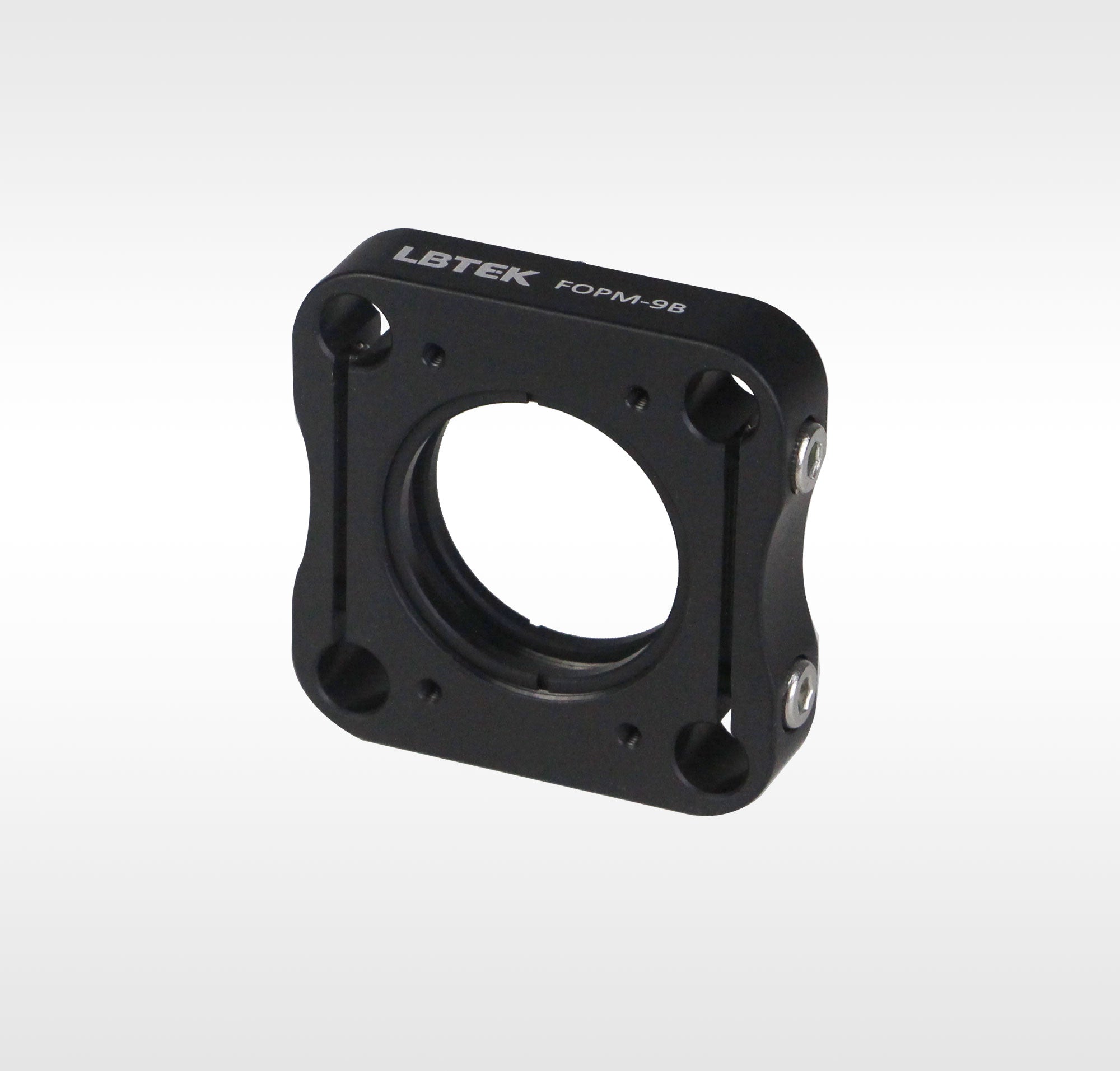

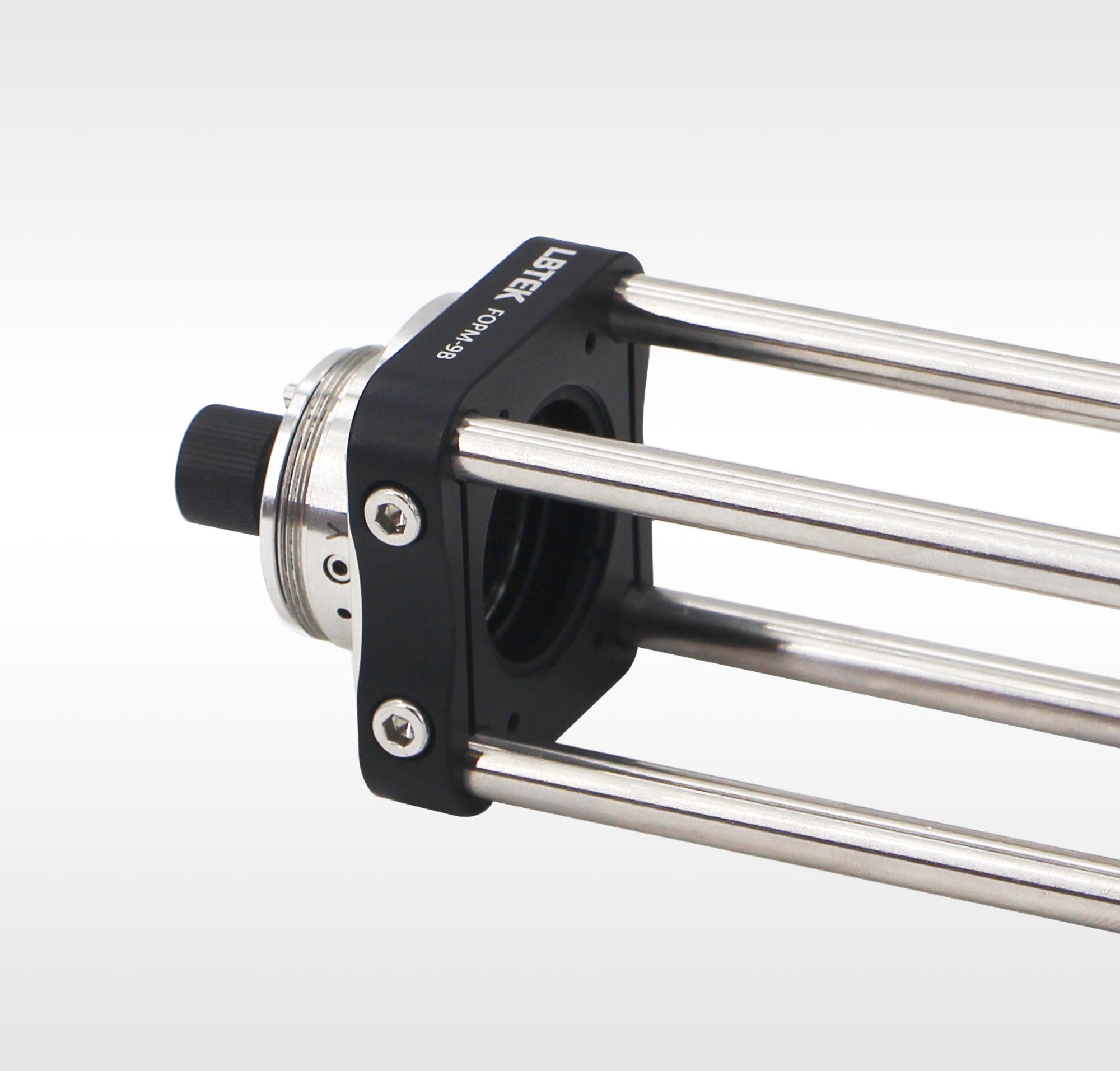

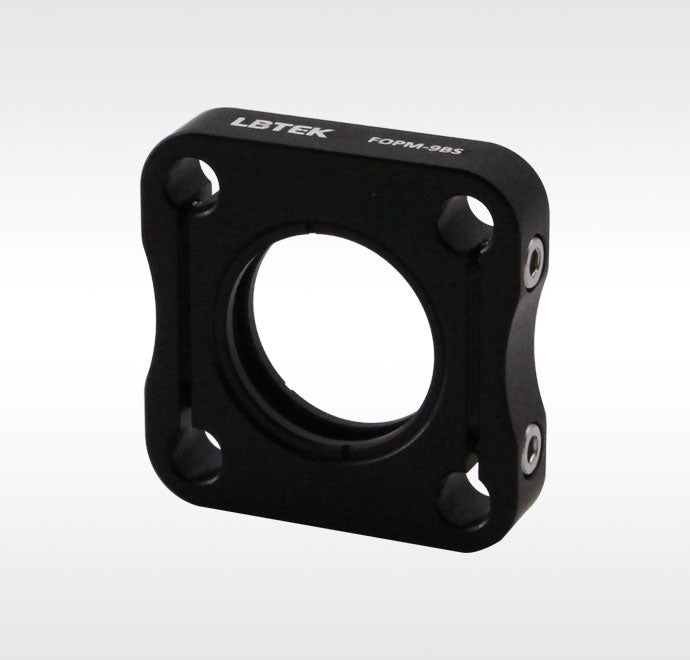

The flexible coaxial mounting plate provided by LBTEK is suitable for Ø25.4 mm optical components or lens sleeves, compatible with 30 mm coaxial systems, and can slide freely along the coaxial rod. It features a side-mounted M2.5 hex socket head screw that can be tightened with a 2 mm hex wrench. All coaxial mounting plates come with flexible locking. In addition to flexible locking, the BFOPM-9BS also includes a flexible arm to prevent excessive binding in coaxial systems. The BFOPM-9BS, FOPM-9BS, COPM1A, ROPM-9B, and ROPM-12.5B models have a central SM1 threaded through-hole and include two SM1R retaining rings. The bottom features an M4 threaded hole for connecting to optical rods. The BFOPM-9BS additionally has an M6 threaded hole on top. The COPM1B model has a light wall mounting hole at the center and uses a rubber-tipped screw to secure optical components.
