60 mm coaxial system XYZ displacement adjustment plate

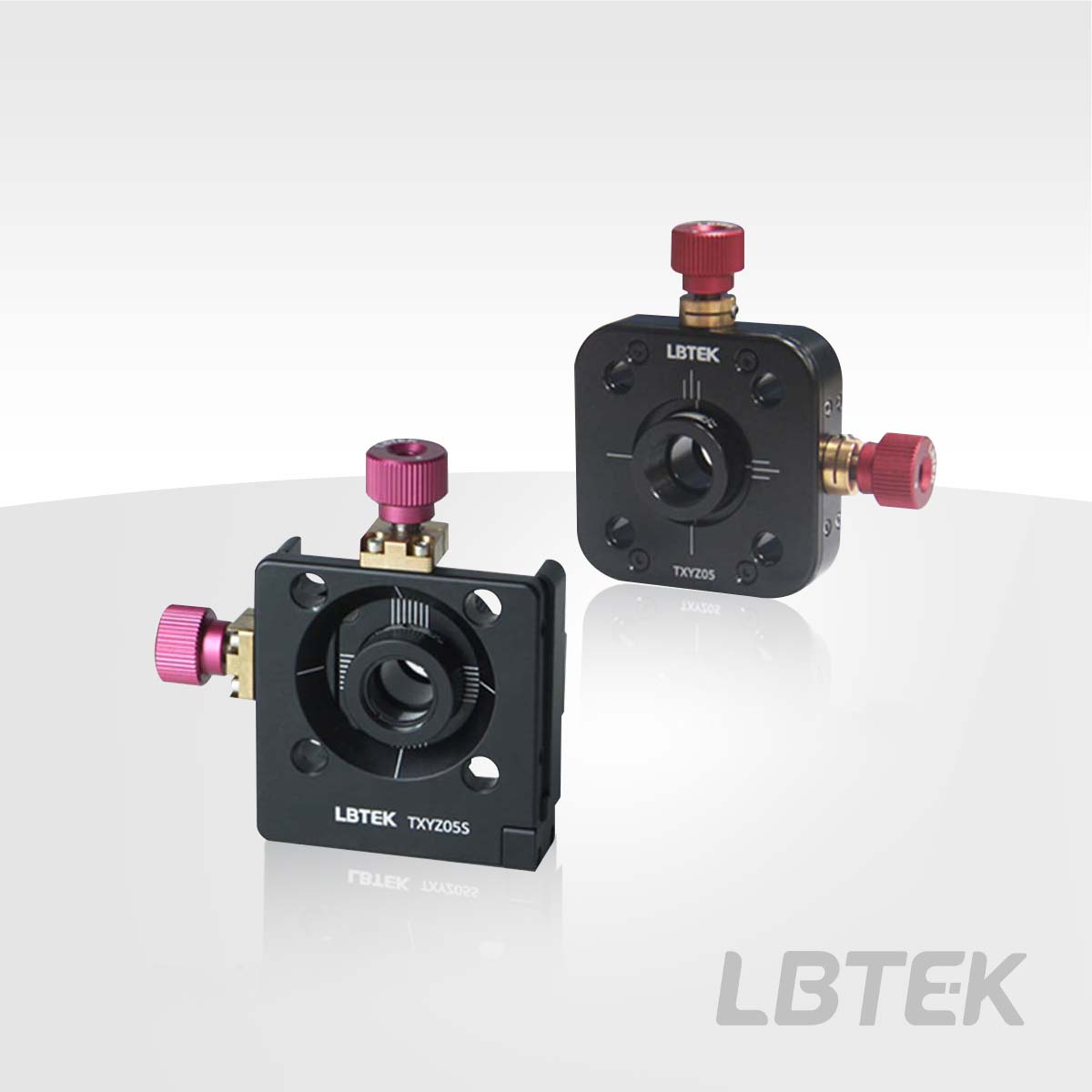

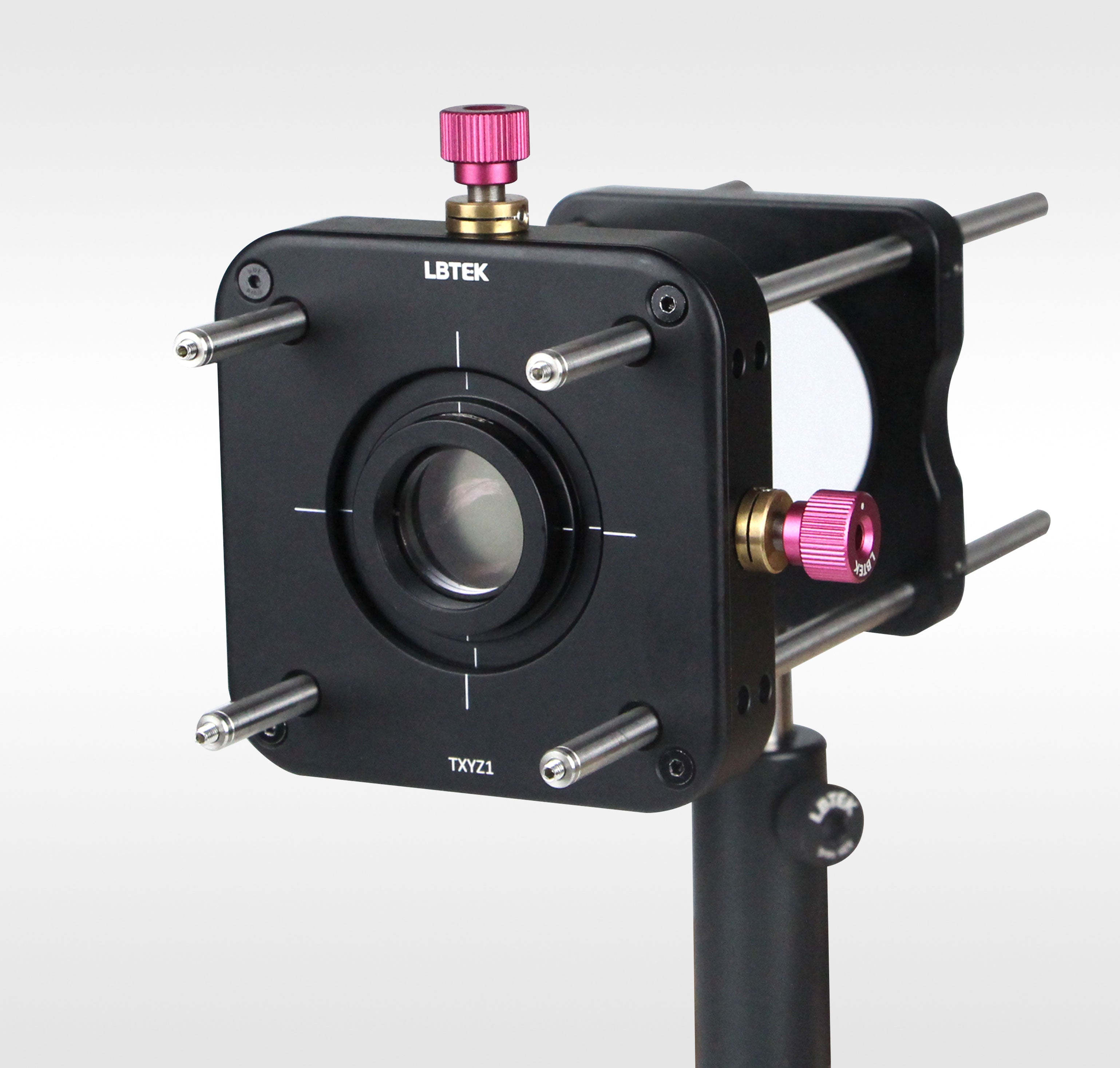

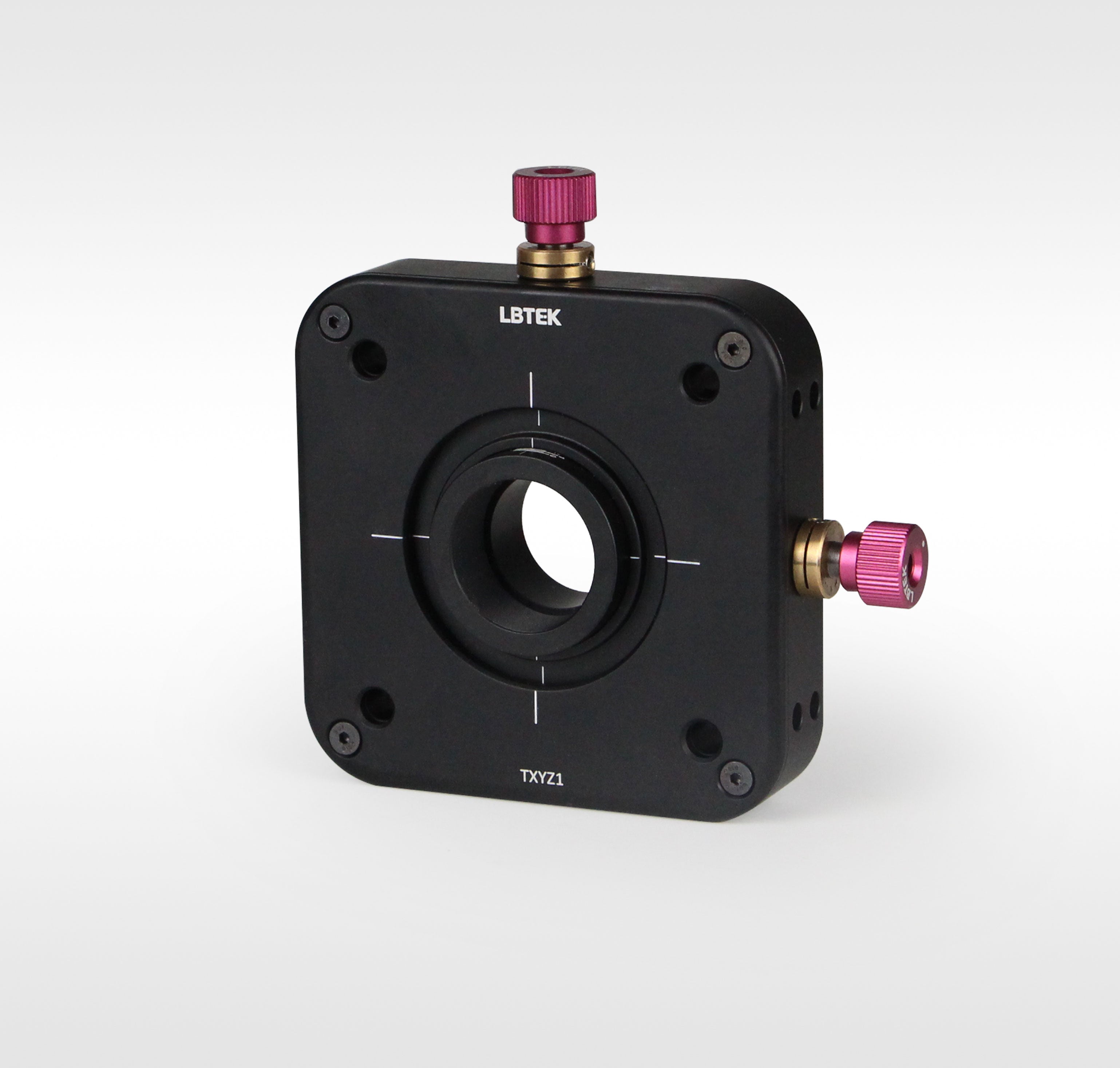

The LBTEK XYZ translation plate is designed for mounting Ø25.4 mm optical components, enabling precise adjustments in the XYZ directions. The plate offers a travel range of 2.5 mm in the XY directions and ±1.5 mm in the Z direction, with adjustment precision of 0.25 mm/revolution in XY and 0.5 mm/revolution in the Z-axis. It features a central SM1 internal thread and includes a retaining ring for securing optical components. Compatible with 60 mm coaxial systems, it has a Ø6 mm through-hole on the side with an M3 set screw (compatible with a 1.5 mm hex wrench) for fixing coaxial system mounting rods. The base includes threaded mounting holes for attaching optical rods.
