Coaxial system adapter board

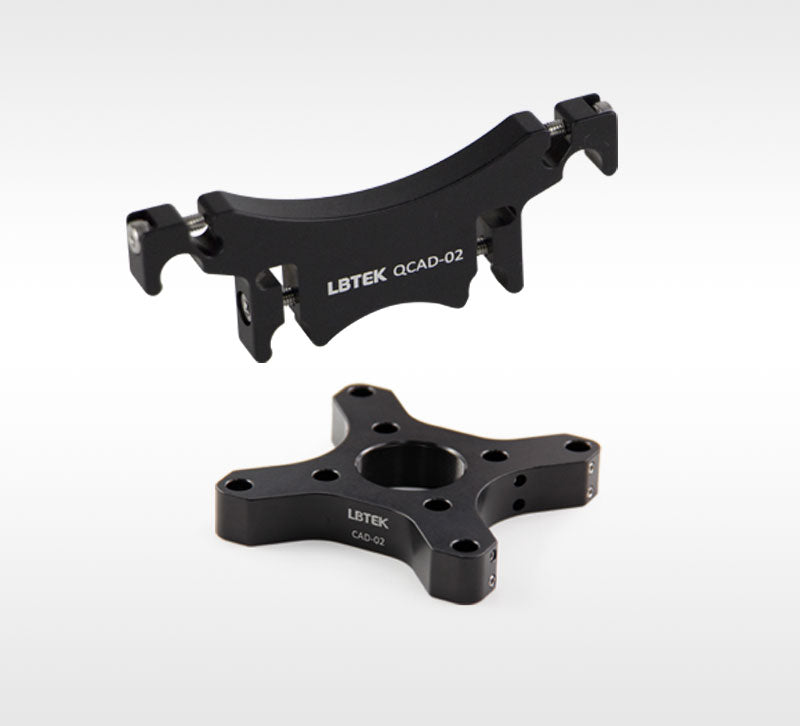

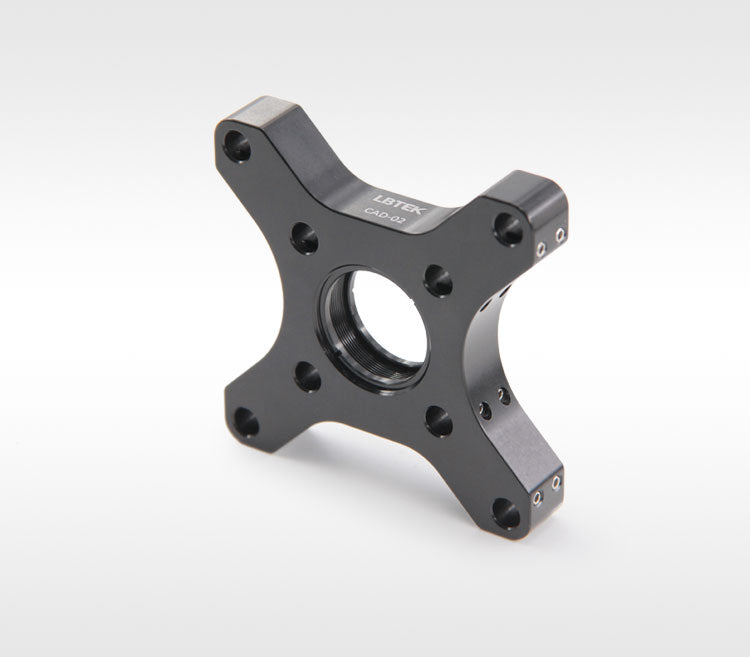

The LBTEK coaxial adapter plate is designed for transitioning between 30 mm and 60 mm components in coaxial systems. The CAD-02 features a central SM1 threaded-through hole that can accommodate Ø25.4 mm optical components with a maximum thickness of 8.5 mm. It includes one M4 threaded hole for connecting to mounting posts, and each coaxial rod through-hole is flanked by two M3 hex key screws compatible with a 1.5 mm hex wrench. The QCAD-02 allows for embedding 30 mm coaxial system components within a 60 mm coaxial system but cannot directly mount optical elements. Each coaxial rod side is equipped with one M2.5 screw to lock tight, compatible with a 2.0 mm hex wrench.
