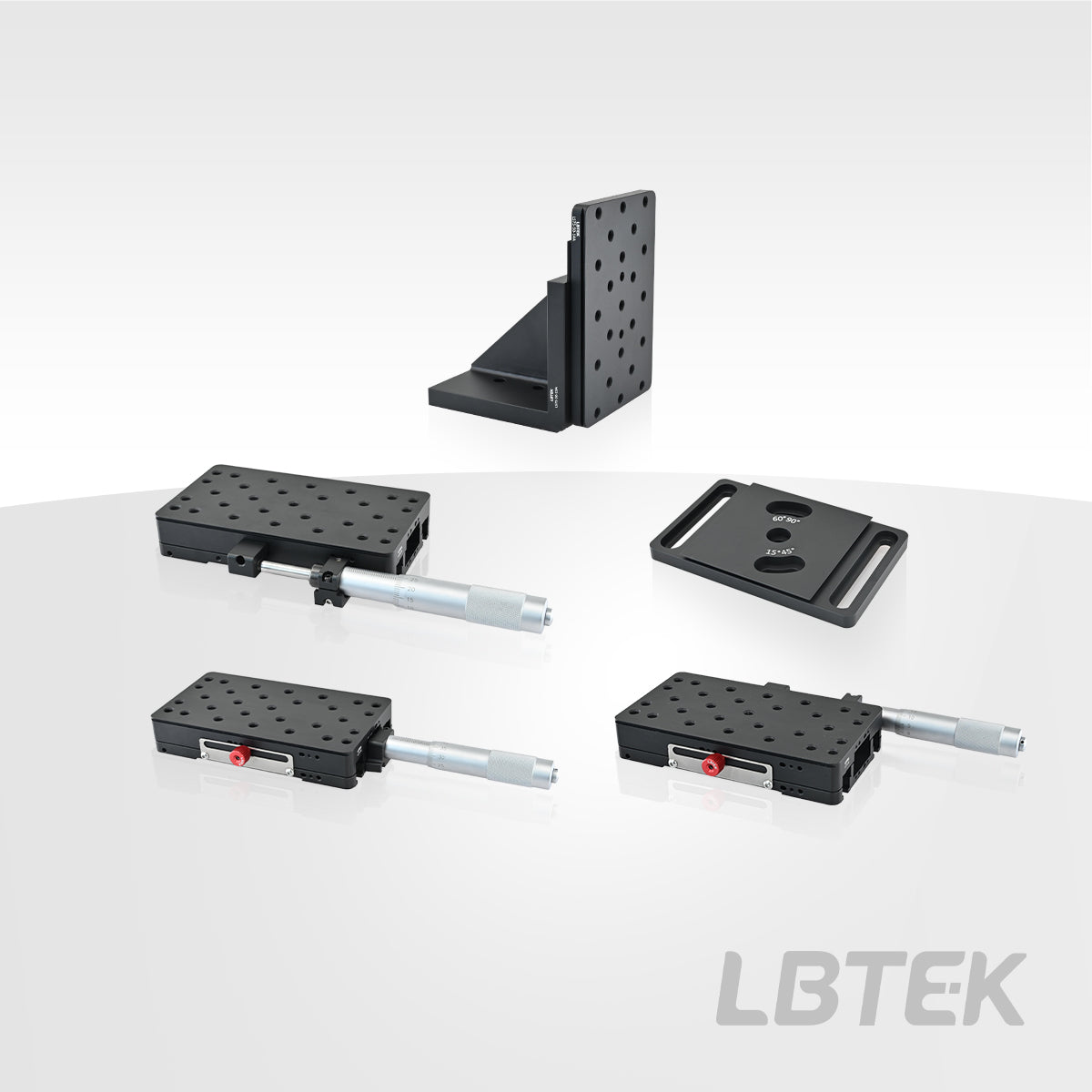

50 mm Travel Manual Linear Translation Stage

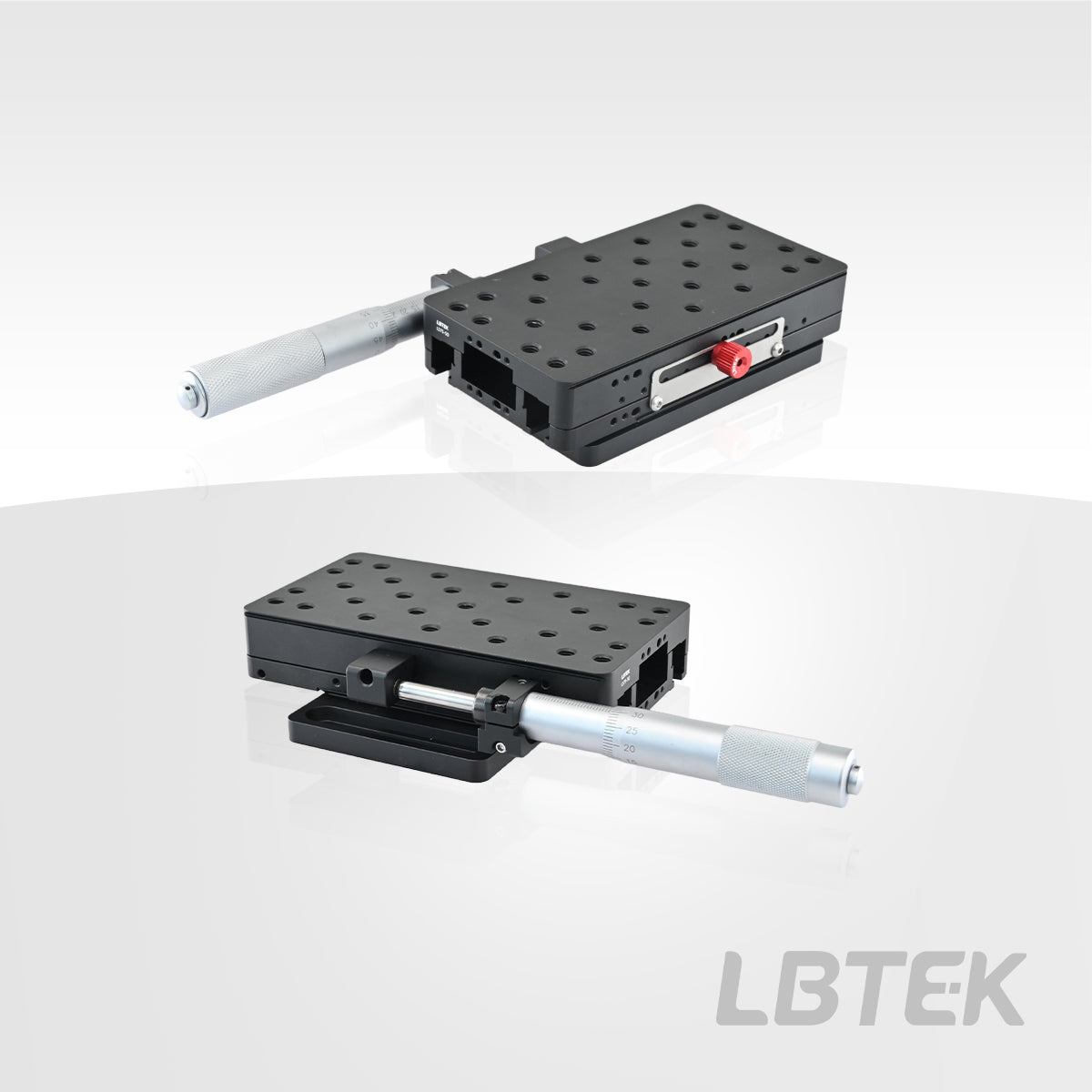

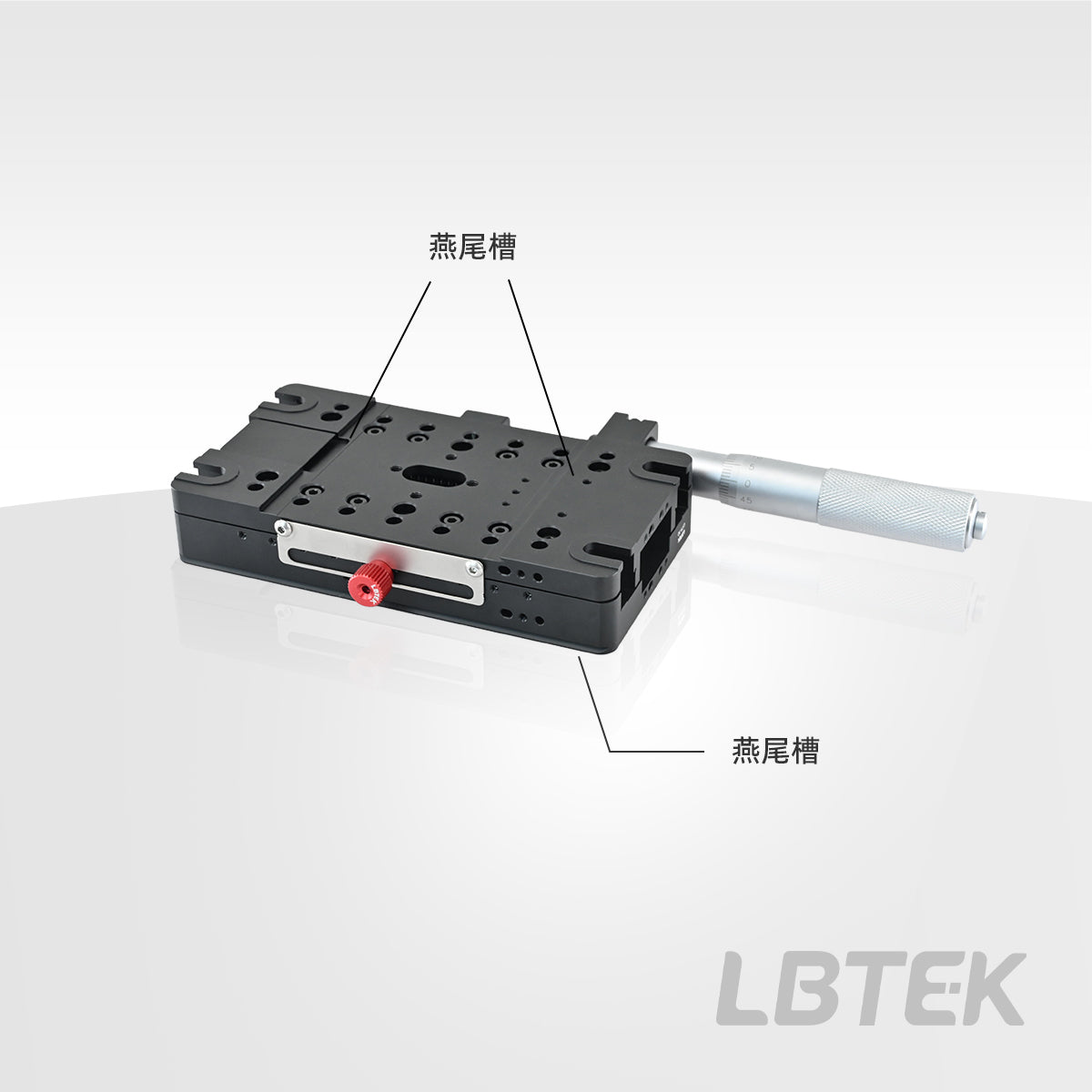

The LS75-50 series translation stage from LBTEK utilizes linear crossed roller ralis, providing high load capacity while delivering ≤3 μm straightness and ≤15 μm motion parallelism across the entire travel range. The stage surface has dimensions of 75.7 mm × 140 mm with M6 tapped holes, and offers three drive types: end direct drive, left-side drive, and right-side drive. The base plate and top plate of the stage are equipped with quick-connect dovetails, enabling flexible assembly of multi-axis stages without additional adapters. The Z-axis stage assembly kit from LBTEK allows integration of an XY-axis linear translation stage and a Z-axis single-axis linear translation stage into an XYZ-axis linear translation stage.
-

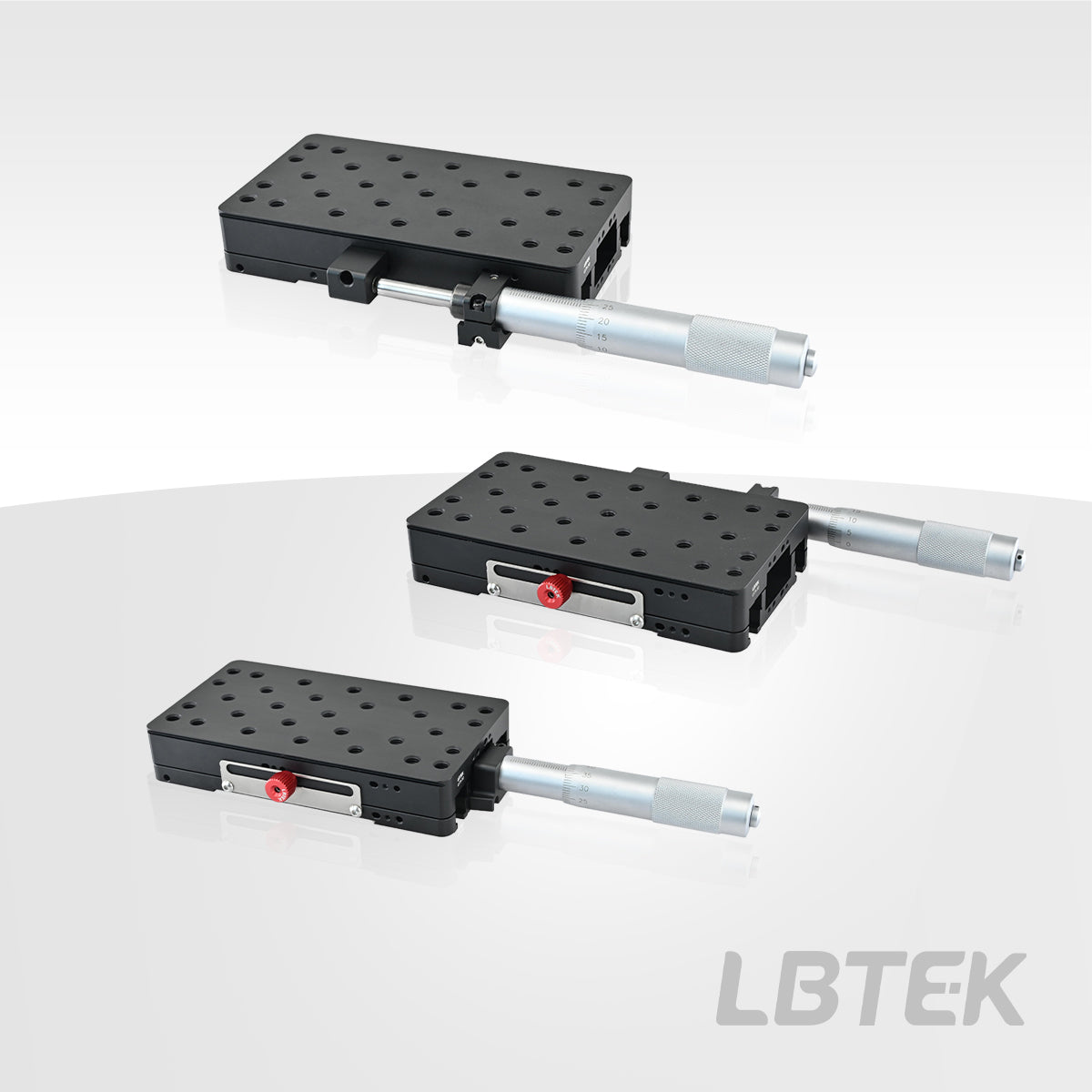

50 mm Single-Axis Linear Translation Stage with Surface Dovetais LS75-50R -
50 mm Single-Axis Linear Translation Stage with Surface Dovetais LS75-50L -
50 mm Single-Axis Linear Translation Stage with Surface Dovetais LS75-50C -

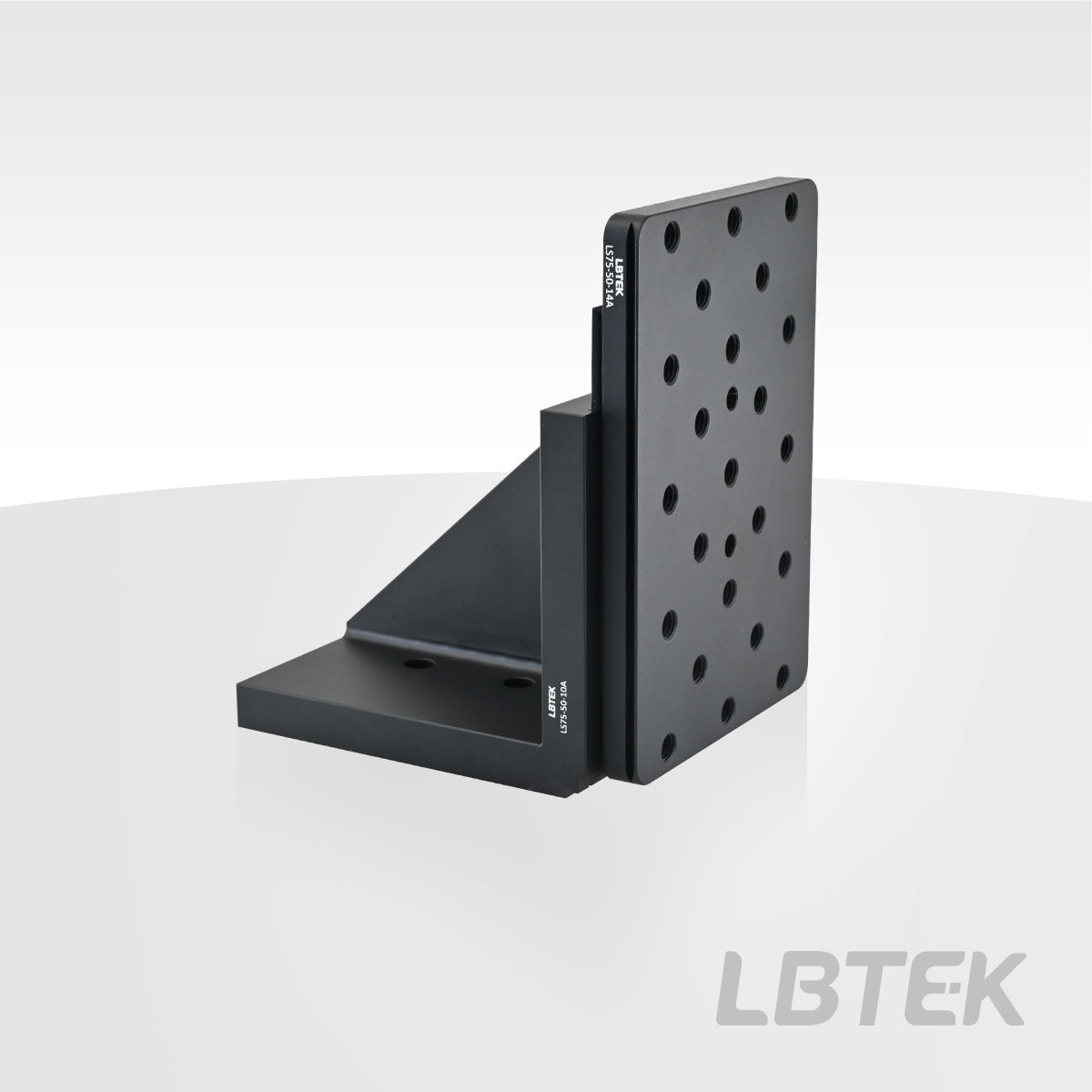

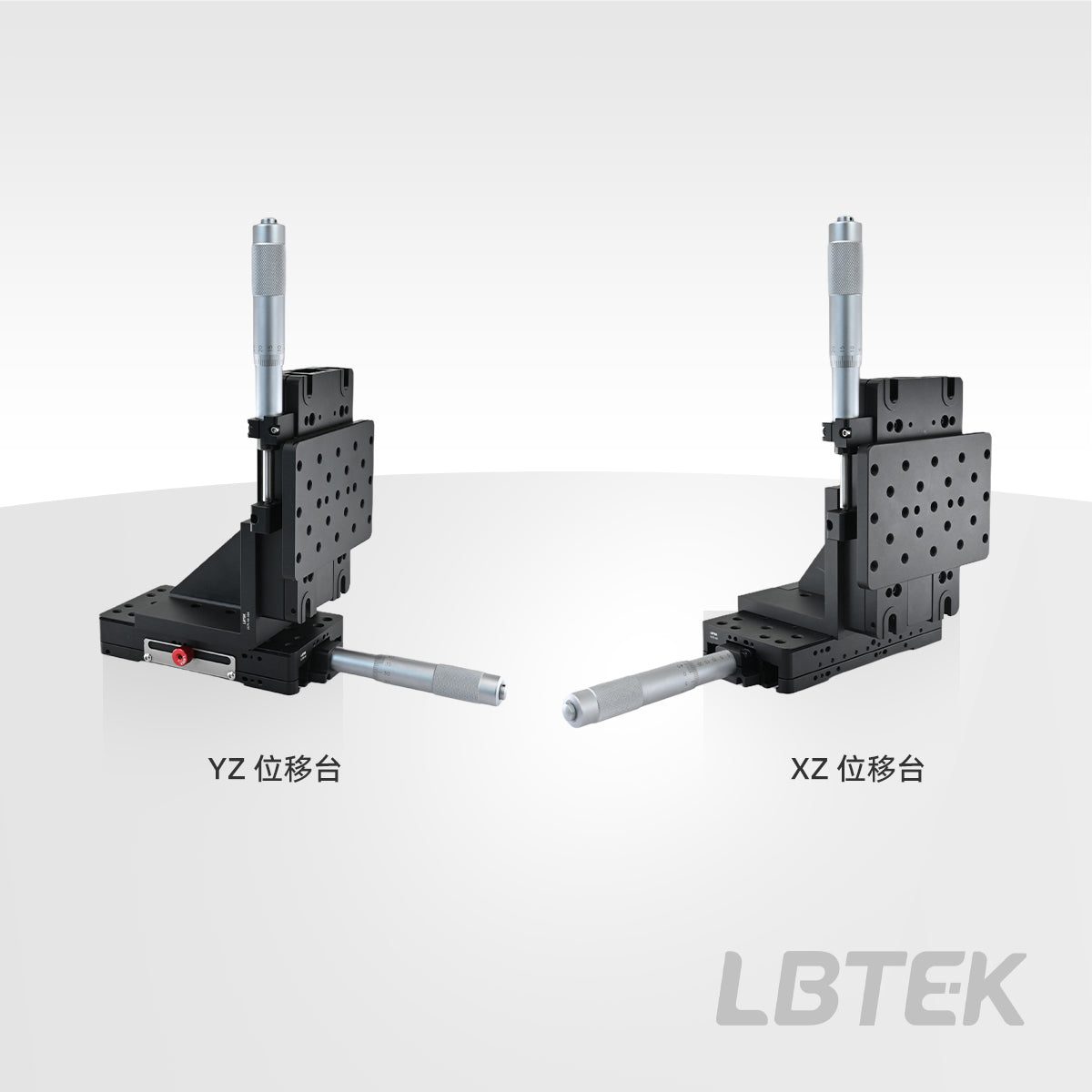

Z-axis Translation Stage Assembly Kit LS75-50-YZ -

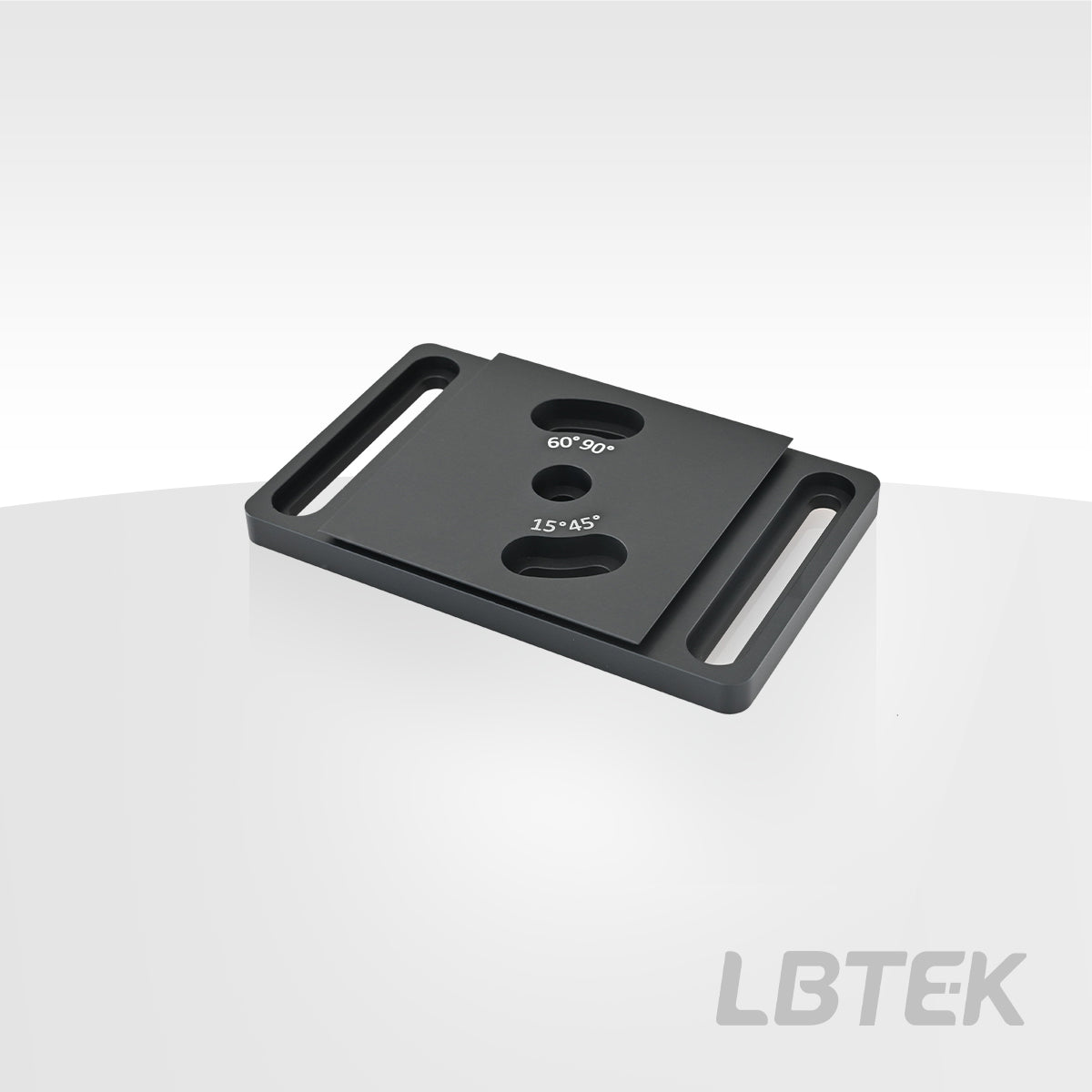

Base Plate with Rotation Adjustment LS75-50-D -
Z-axis Translation Stage Assembly Kit LS75-50-XZ -
50 mm Travel Manual Linear Translation Stage LS75-50-D -
50 mm Travel Manual Linear Translation Stage LS75-50-XZ -
50 mm Travel Manual Linear Translation Stage LS75-50-YZ -
50 mm Travel Manual Linear Translation Stage LS75-50C -
50 mm Travel Manual Linear Translation Stage LS75-50L -
50 mm Travel Manual Linear Translation Stage LS75-50R
