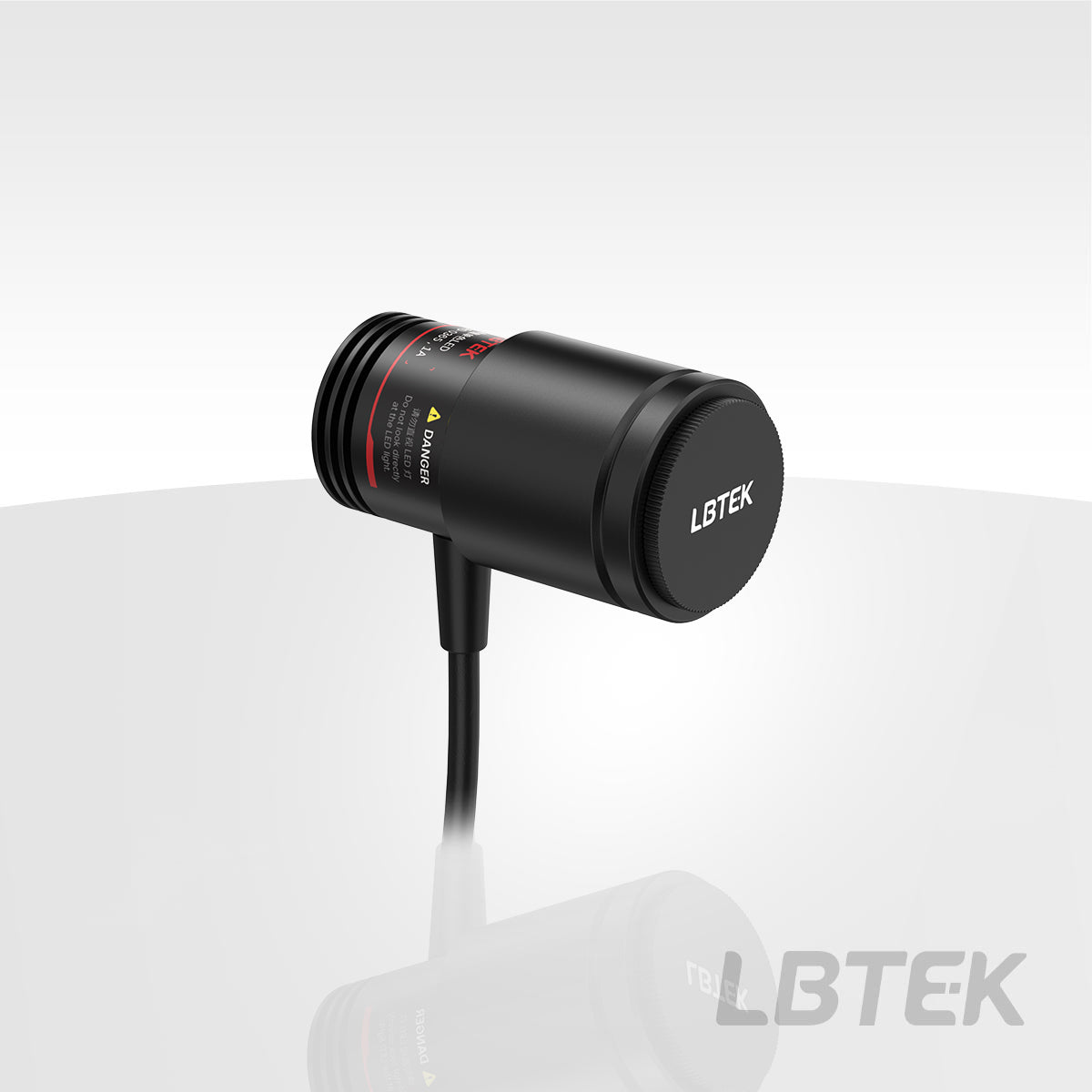

Collimated LED Light Source

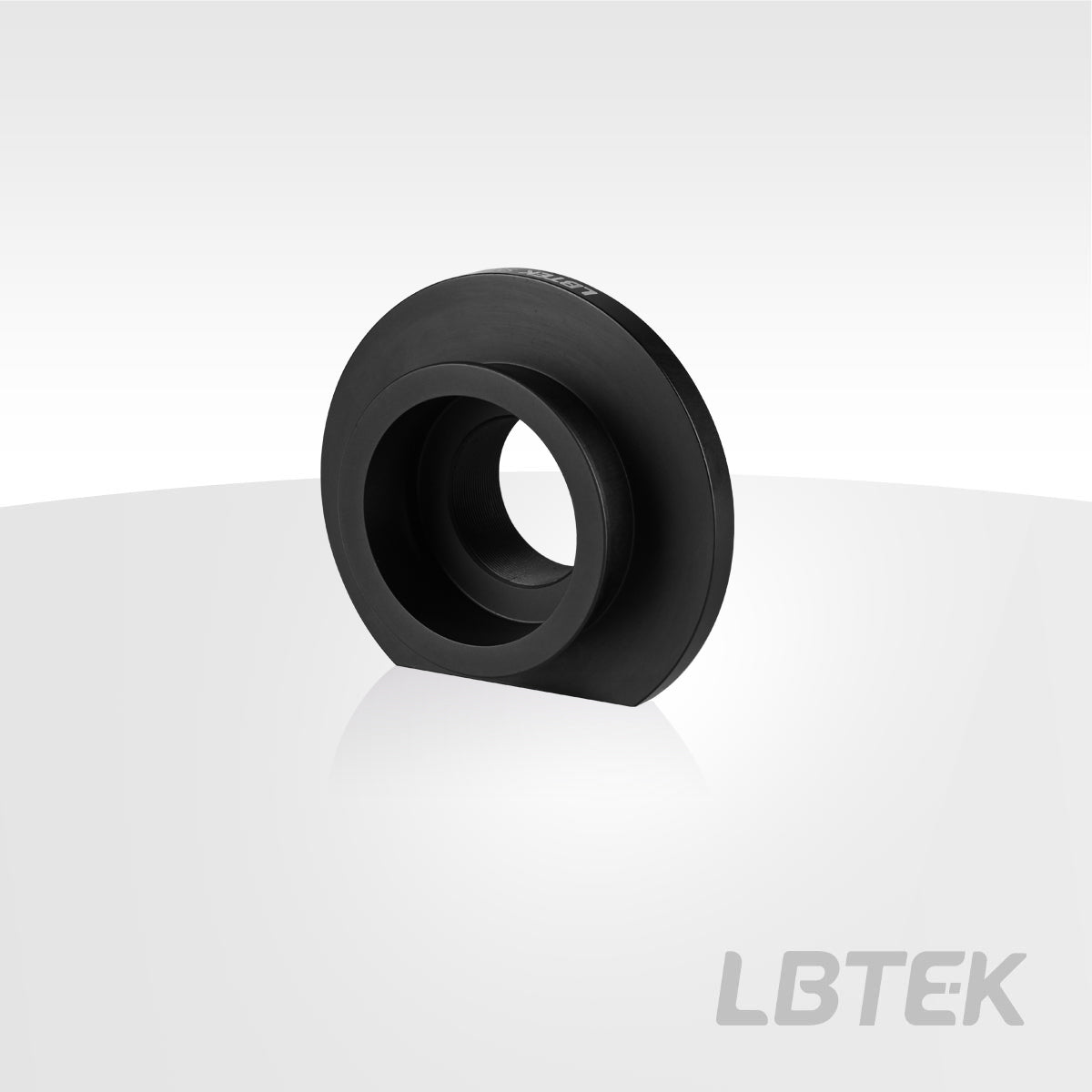

LBTEK's collimated LED light sources incorporate collimating optical elements, enabling the output beam divergence angle of collimated monochromatic LEDs to be <10°, and that of collimated white LEDs and high-power white LEDs to be <7°. The collimated LED light sources feature an integrated heat dissipation structure, which minimizes overheating damage and eliminates power fluctuations caused by temperature changes, ensuring stable output power. They are suitable for applications such as microscope illumination, fluorescence excitation, brightfield illumination, projection systems, and photocatalysis. The collimated LED light sources must be used with a controller, which supports continuous light output or millisecond-level pulse output, with continuously adjustable light intensity. There are three methods of use: ① Directly adjust the light source output power via the knob on the controller; ② Supports external trigger mode, with an external SMA connector for TTL external modulation; ③ Connect via Mini USB to control the light source through software. Additionally, transmission illumination port adapters are provided below this page, compatible with Olympus BX and IX microscopes, Zeiss Axioskop and Examiner microscopes, Nikon Eclipse (Ti, Ti2, or upright) microscopes, and Leica DMI microscopes, available for selection as needed.
