Objective Lens Mounting Assembly

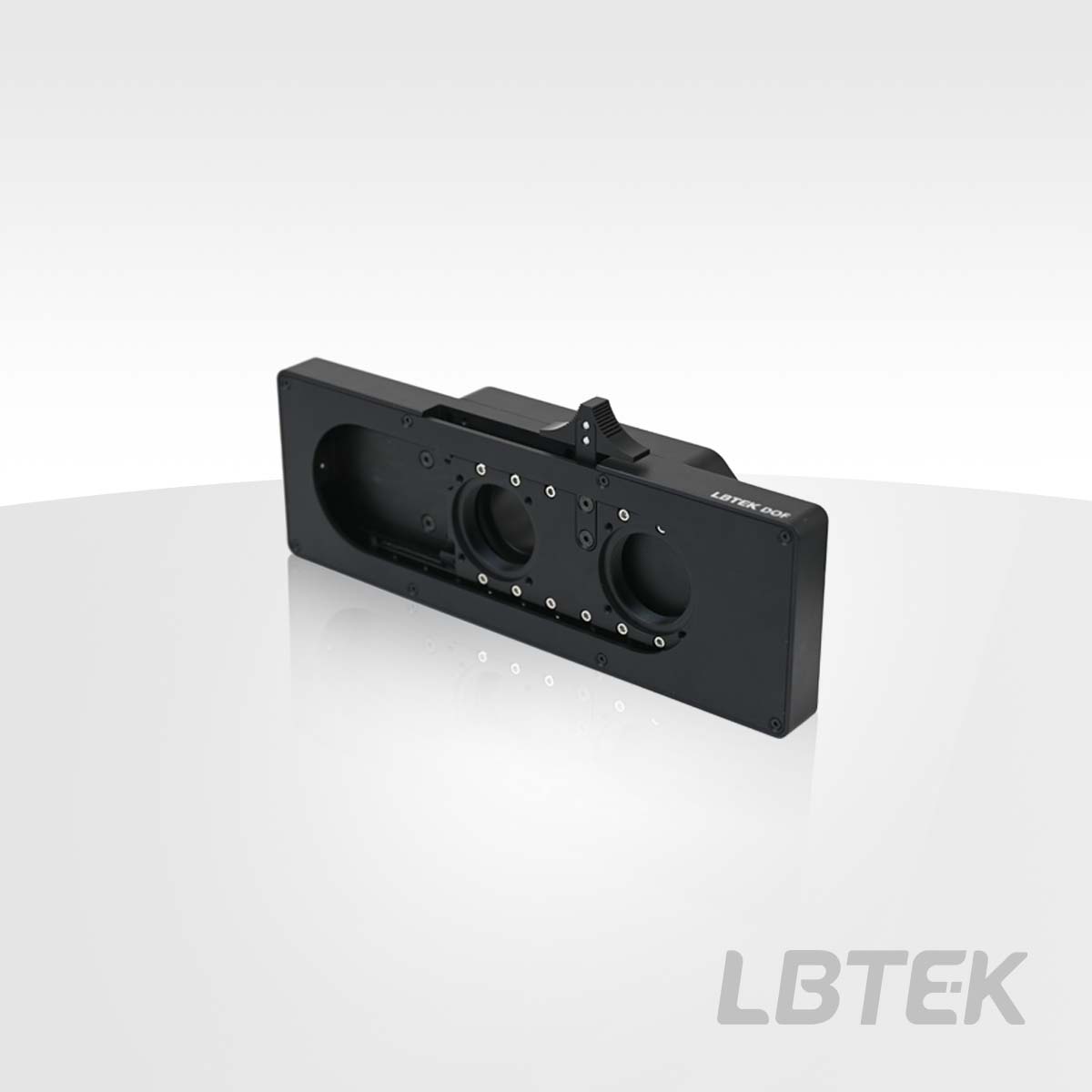

Some of LBTEK's objective lens mounts feature multiple mechanical interfaces for mounting microscope objectives and other optical components along the optical path of a self-built microscope system. We currently offer single-objective and dual-objective mounts; single-objective mounts compatible with 60 mm cage systems, one with a thinner profile and another with a detachable magnetic base; single-objective and dual-objective mounts. Two five-objective mounts facilitate rapid objective lens changes. LBTEK also offers manual focusing modules (provided below) with a travel of 25.4 mm along the Z-axis, which can connect objective lens mounts and mounting arms to the microscope main body frame via an angle bracket (sold separately). LBTEK also provides other main body frame accessories and extensions to integrate Thorlabs' lens tube systems, cage systems, and other optomechanical components with our self-built microscope platform. We also offer condenser mounting arms for mounting condensers at a distance of 196.5 mm from the edge of the rail in the optical path of a self-built microscope system. For optical components that do not require frequent adjustment, we also provide fixed mounting arms that can directly mount lens tubes and cage systems along the microscope's optical path.
