XY-Axis Translation Stage

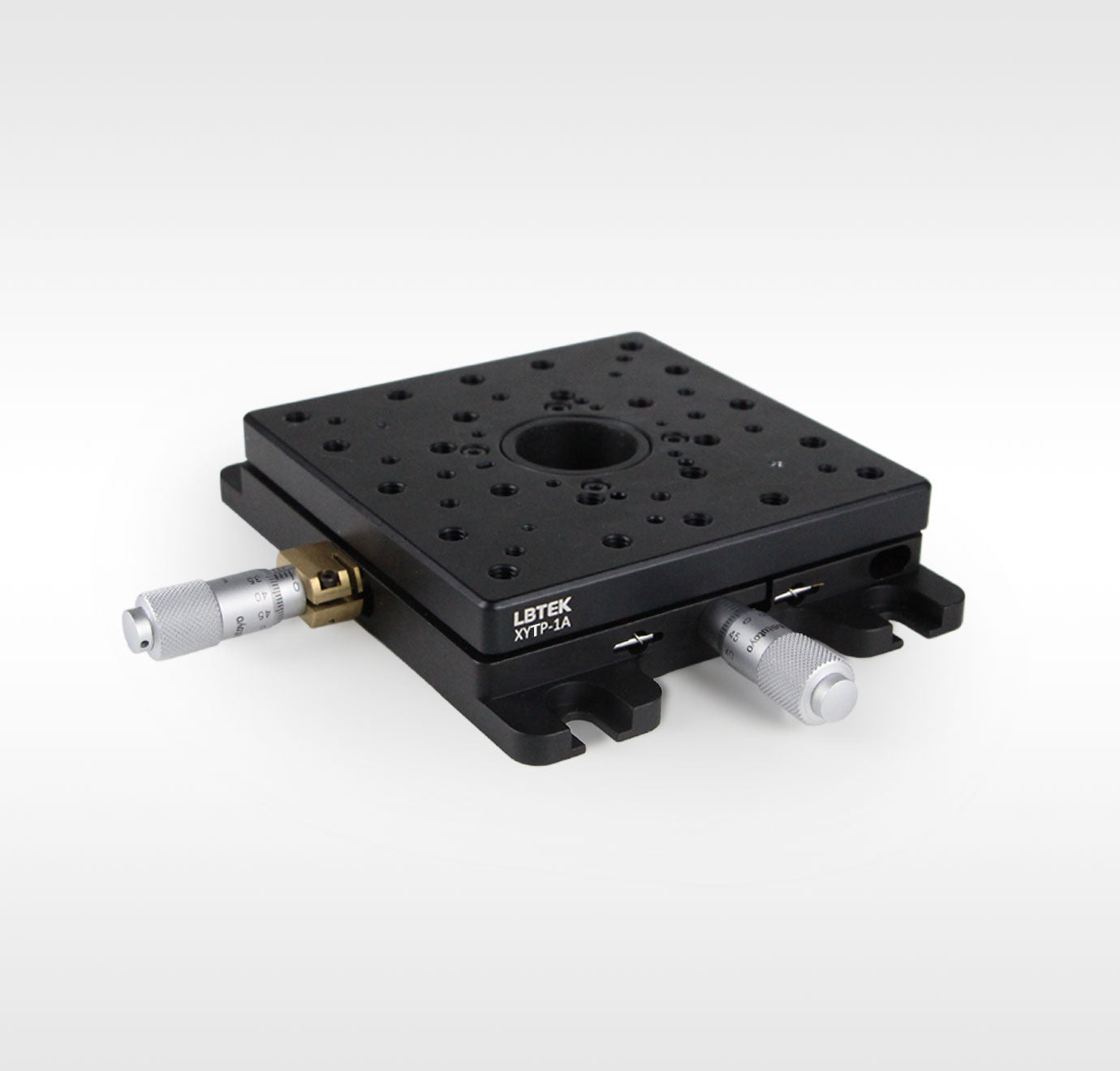

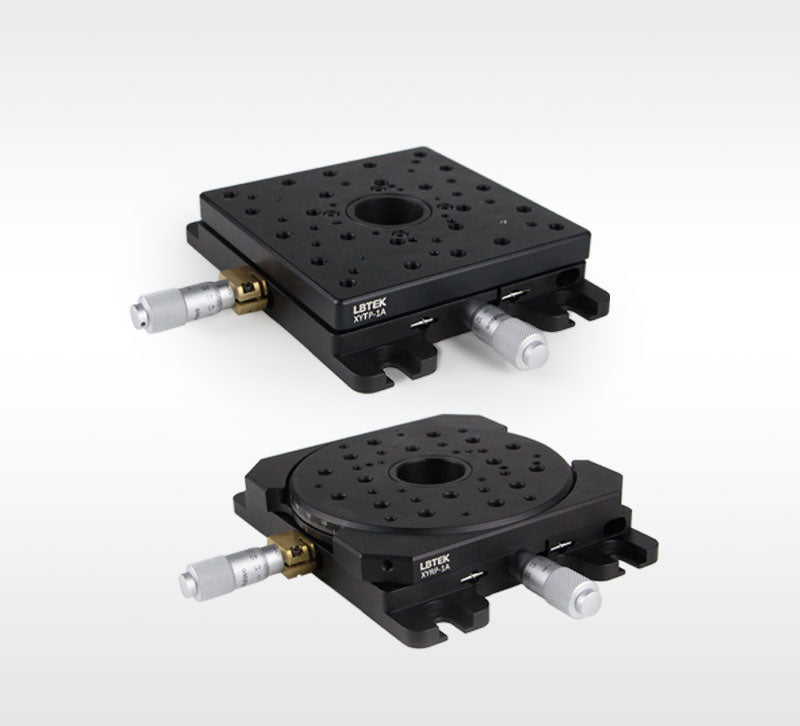

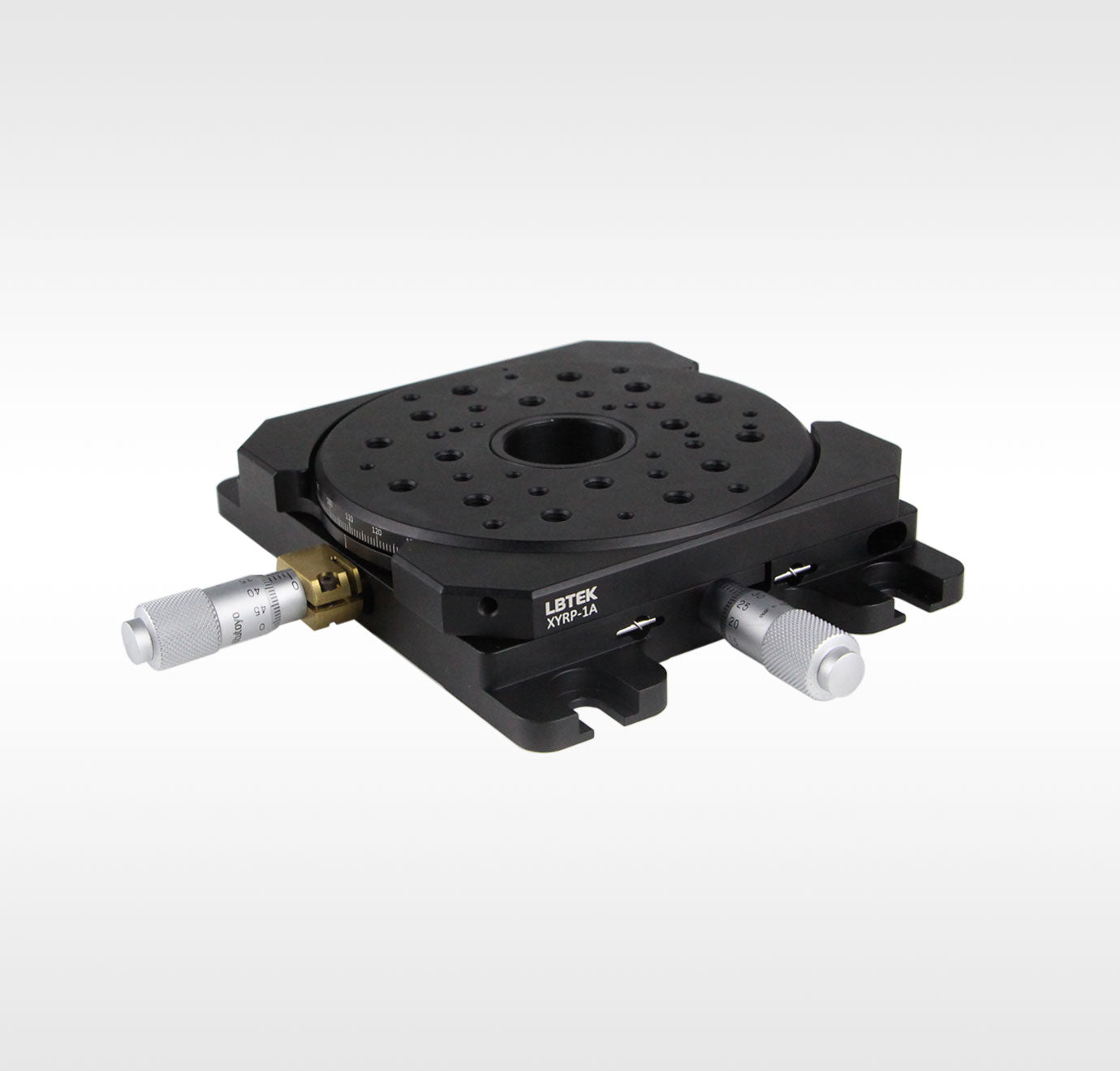

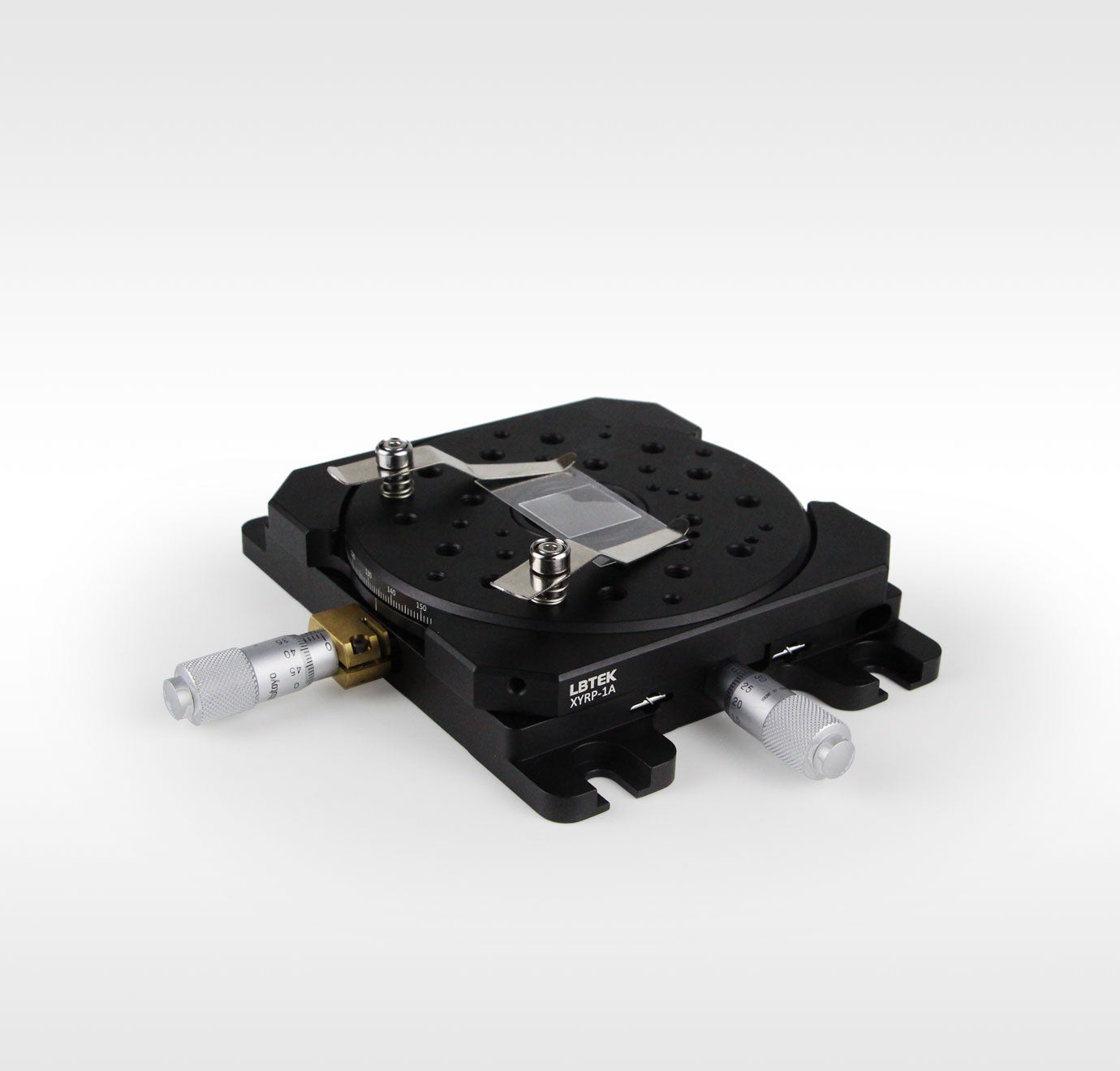

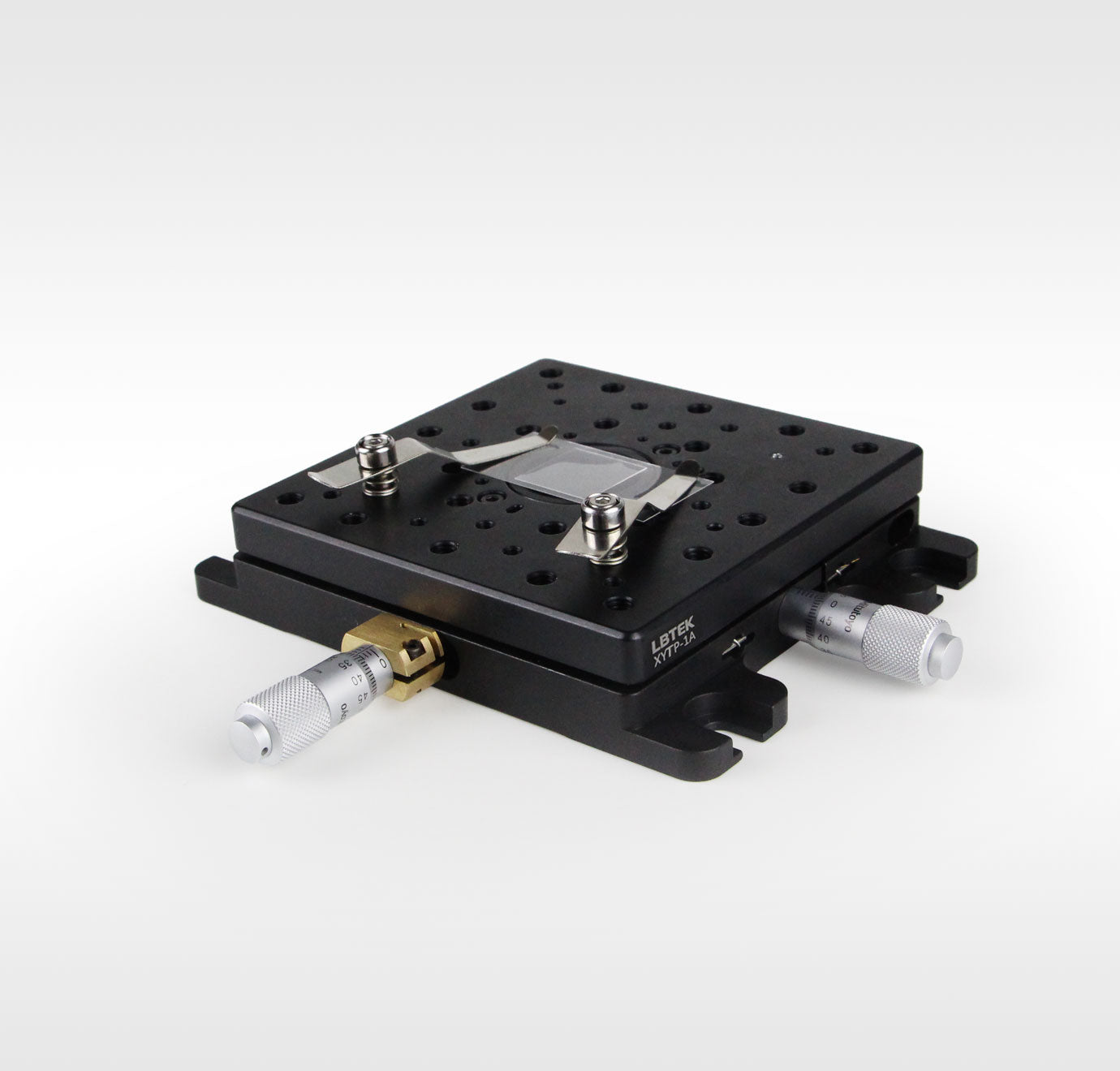

The XY translation stage from LBTEK features a low profile design with a central SM1-tapped hole for mounting 25.4 mm diameter optical components, making it ideal for imaging systems requiring bottom illumination. The stage maintains uninterrupted SM1 through-hole alignment during X-Y axis movement. In addition to the SM1 mounting hole, the translation stage includes multiple M3, M4, and M6 tapped holes for stage installation and accessory mounting, ensuring compatibility with both 30 mm and 60 mm coaxial systems. The stage surface accommodates microscope slide spring clamps. LBTEK offers both fixed plate and rotary plate XY translation stage variants.
