6-Axis Optical Mounts

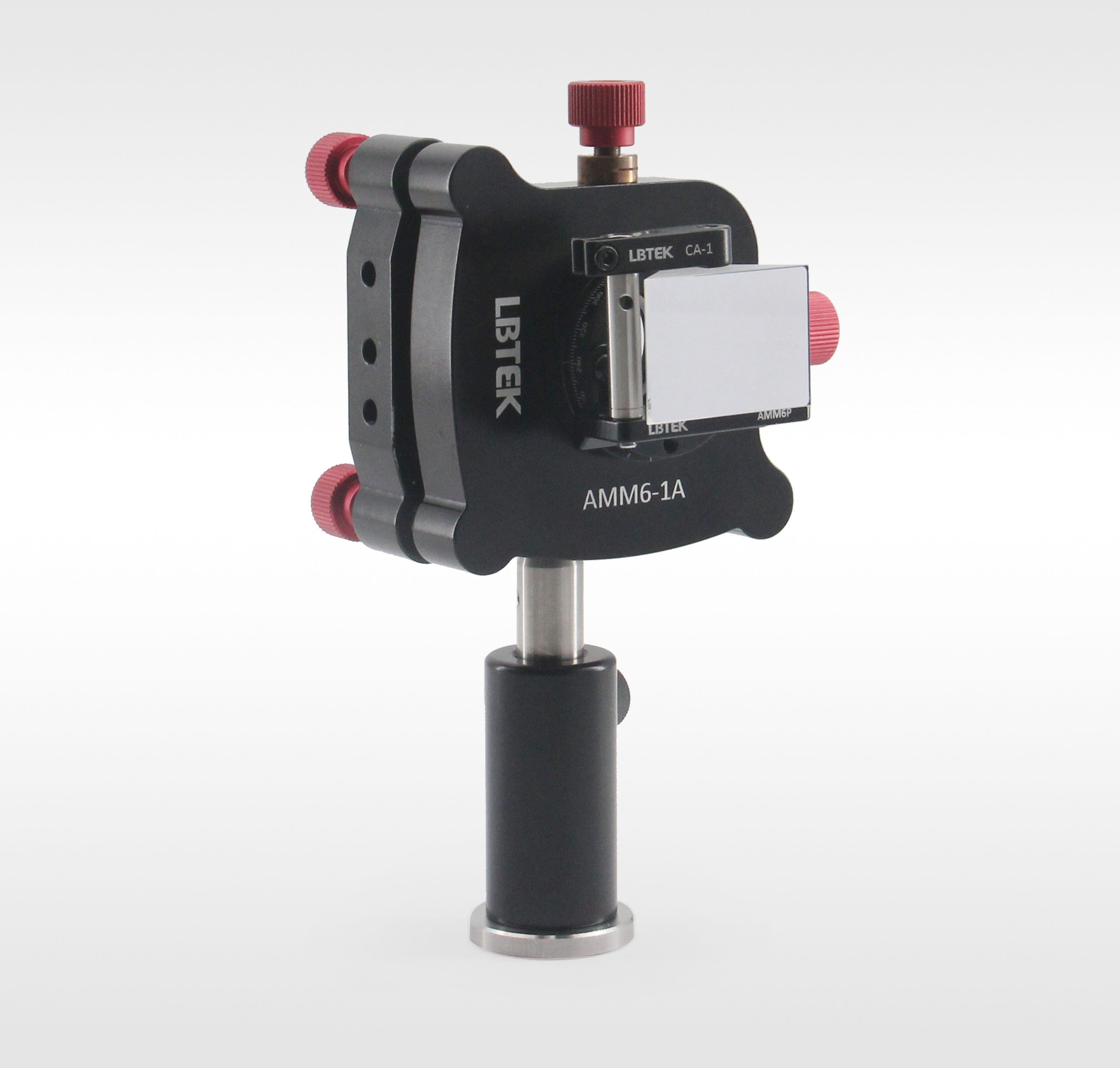

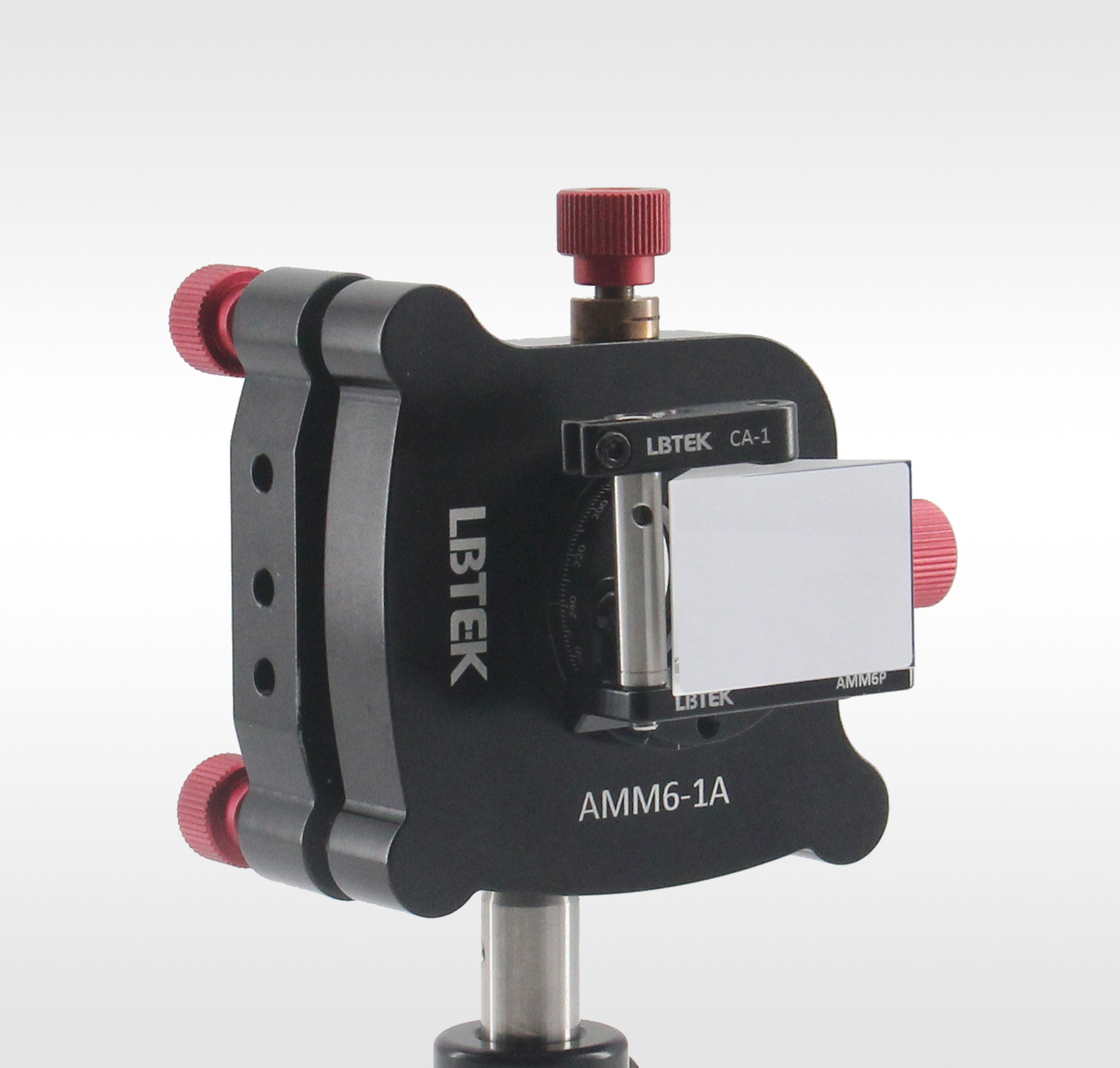

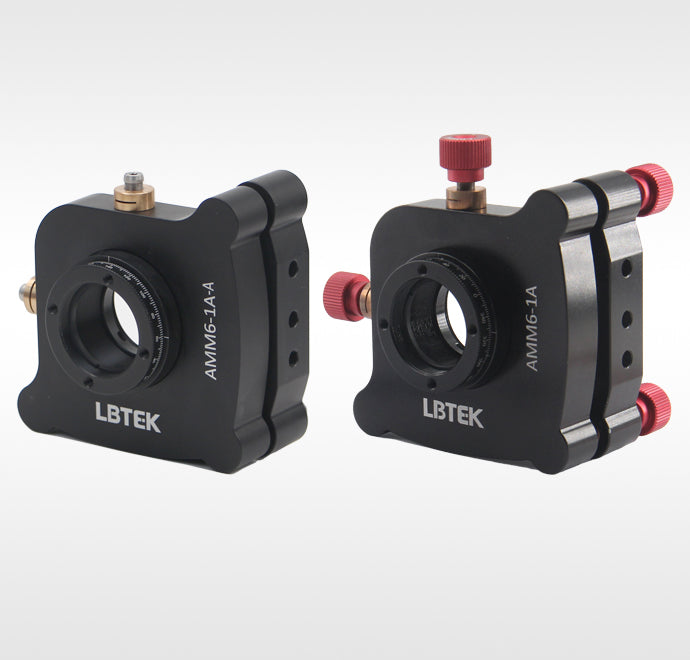

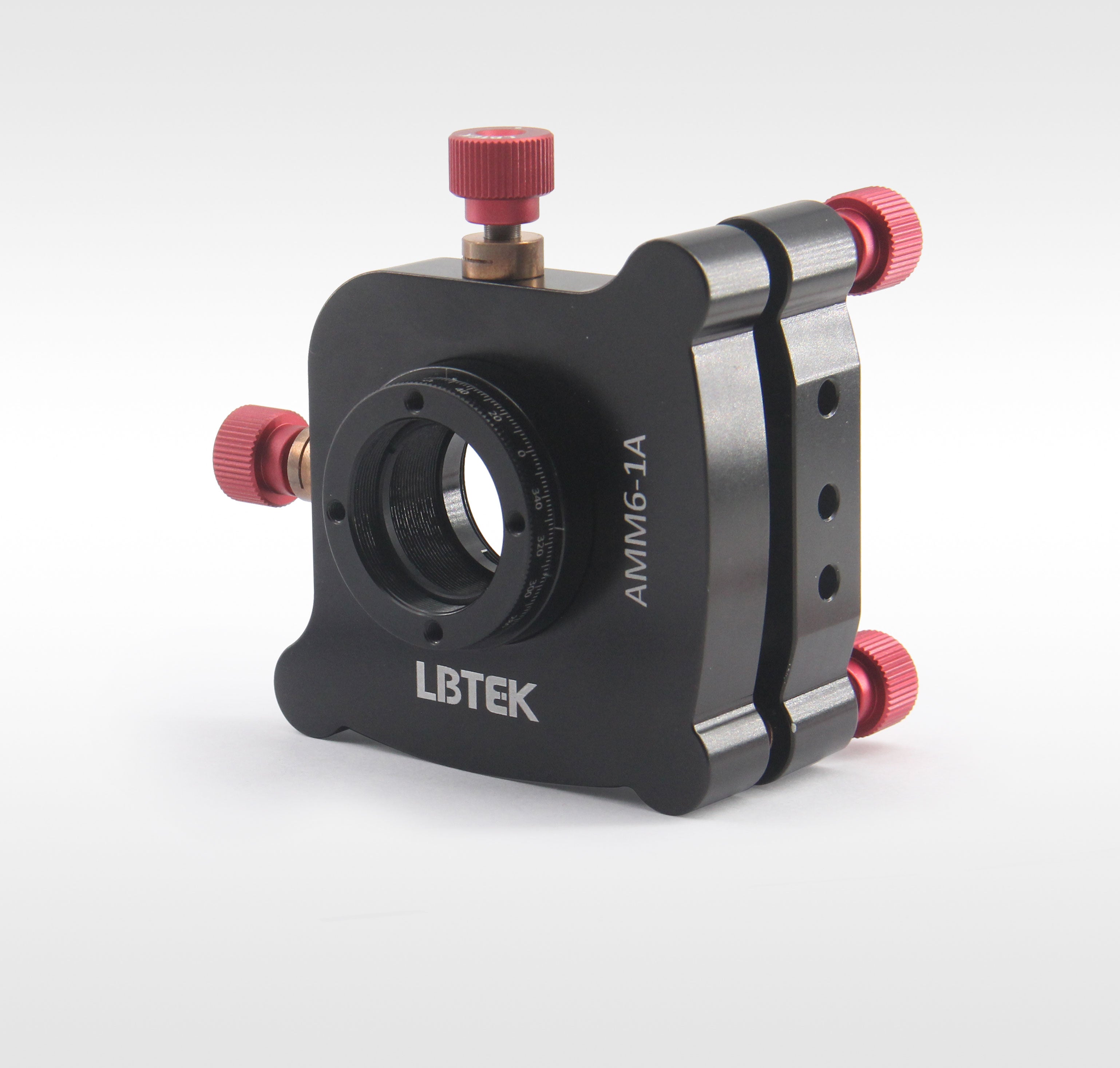

The LBTEK 6-Axis Optical Mount allows for translation along three axes, pitch/yaw adjustment, and 360° rotation. Each adjustment axis can be locked to enhance the stability. The mounting section features SM1 threaded holes for optical components or SM1 threaded assemblies. The AMM6-1A mount's rotation ring has four M3 threaded holes for mounting the AMM6P prism mounting accessory. This prism mounting accessory comes with a 42.0 mm × 12.7 mm platform. The back plate of the mount is equipped with six M4 countersunk holes, enabling posts to the AMM6-1A mount for left or right-handed mounting.
