Compact Optical Mounts

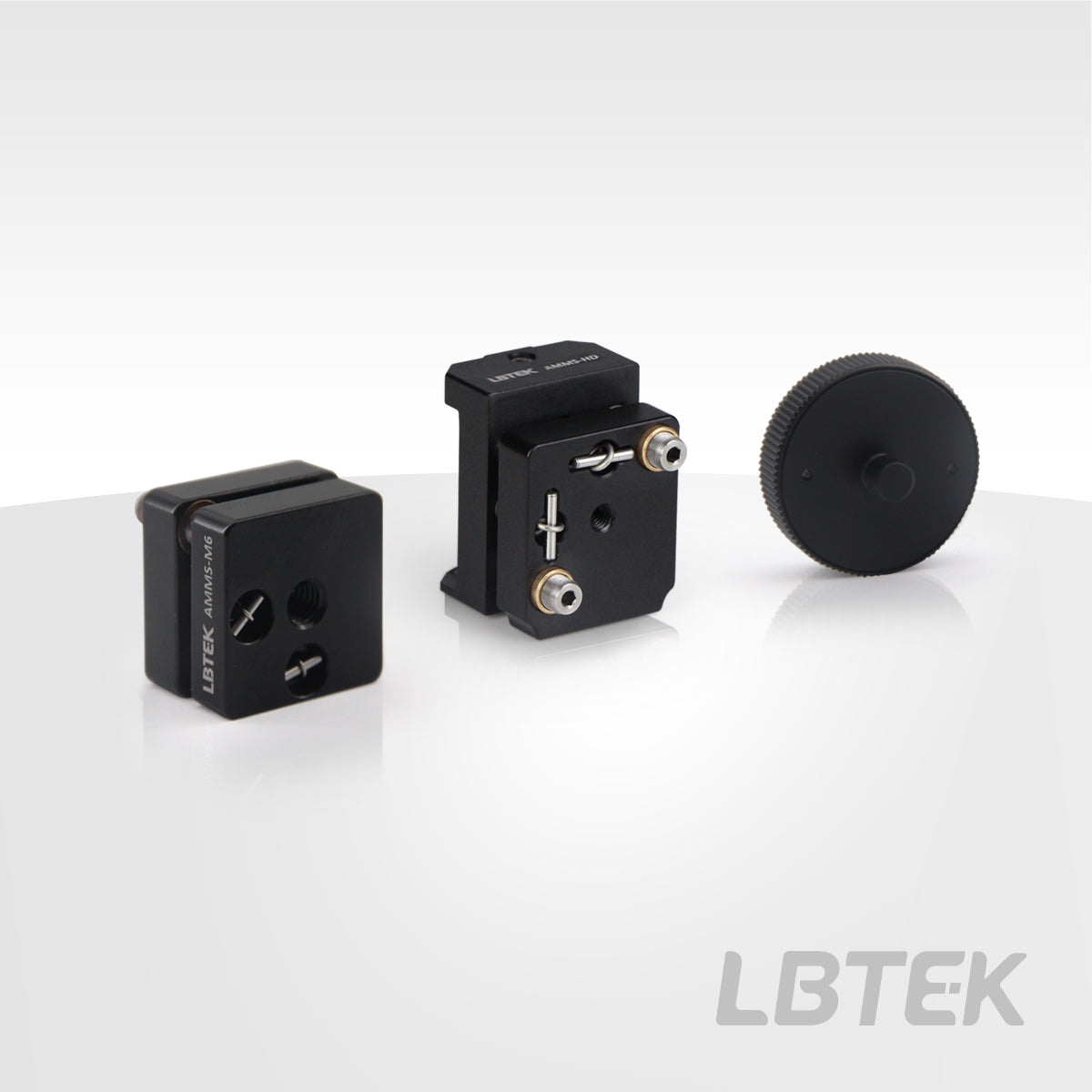

The Compact Optical Mounts provided by LBTEK are designed for experimental environments with confined spaces. Featuring knobless adjusters, the AMMS-M6 and AMMS-HD models have an exceptionally compact design. These mounts offer an adjustable angle range of ±4° with a precision of 0.84° per revolution. Both the base and side of the mounts are equipped with M4 tapped holes for vertical and horizontal mounting.

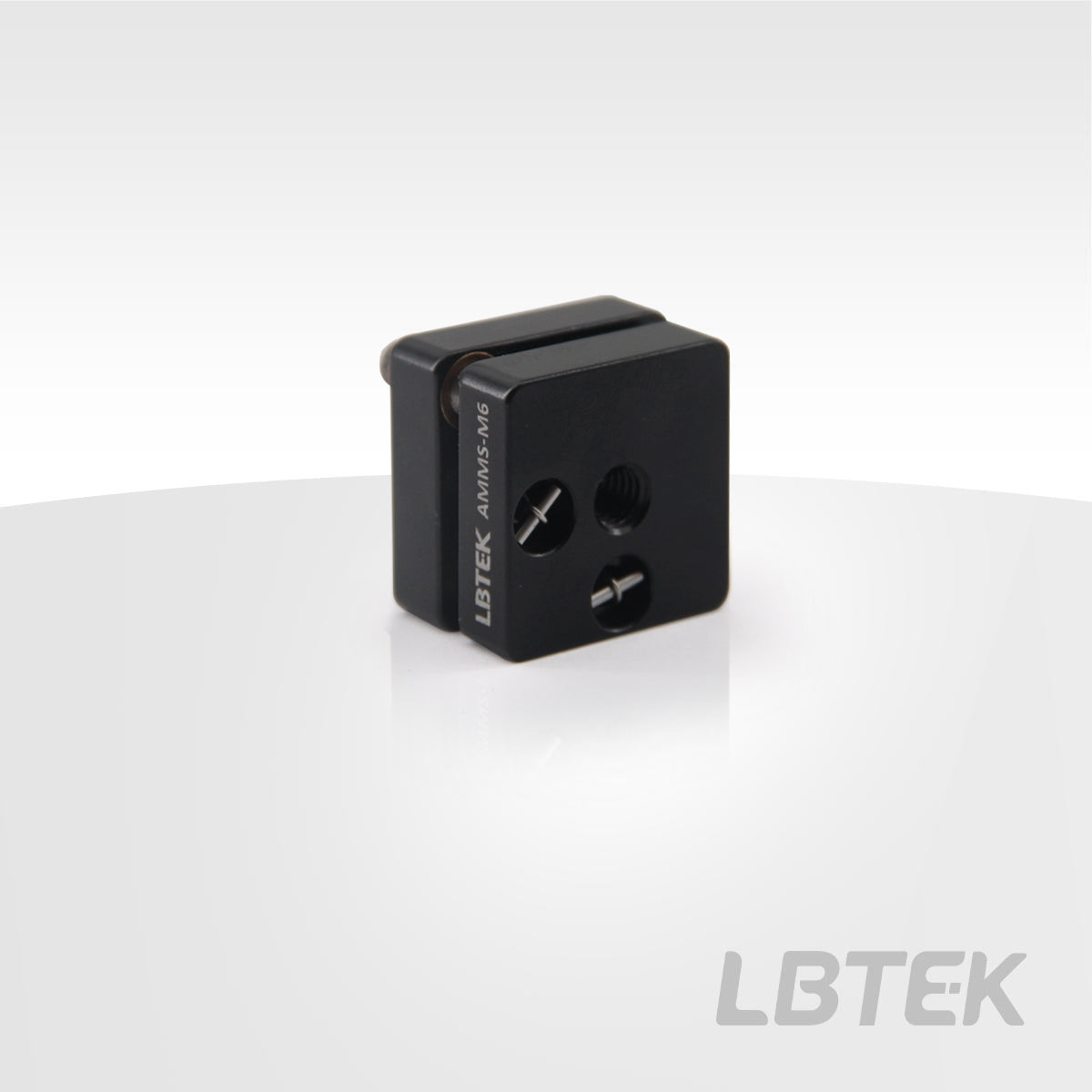

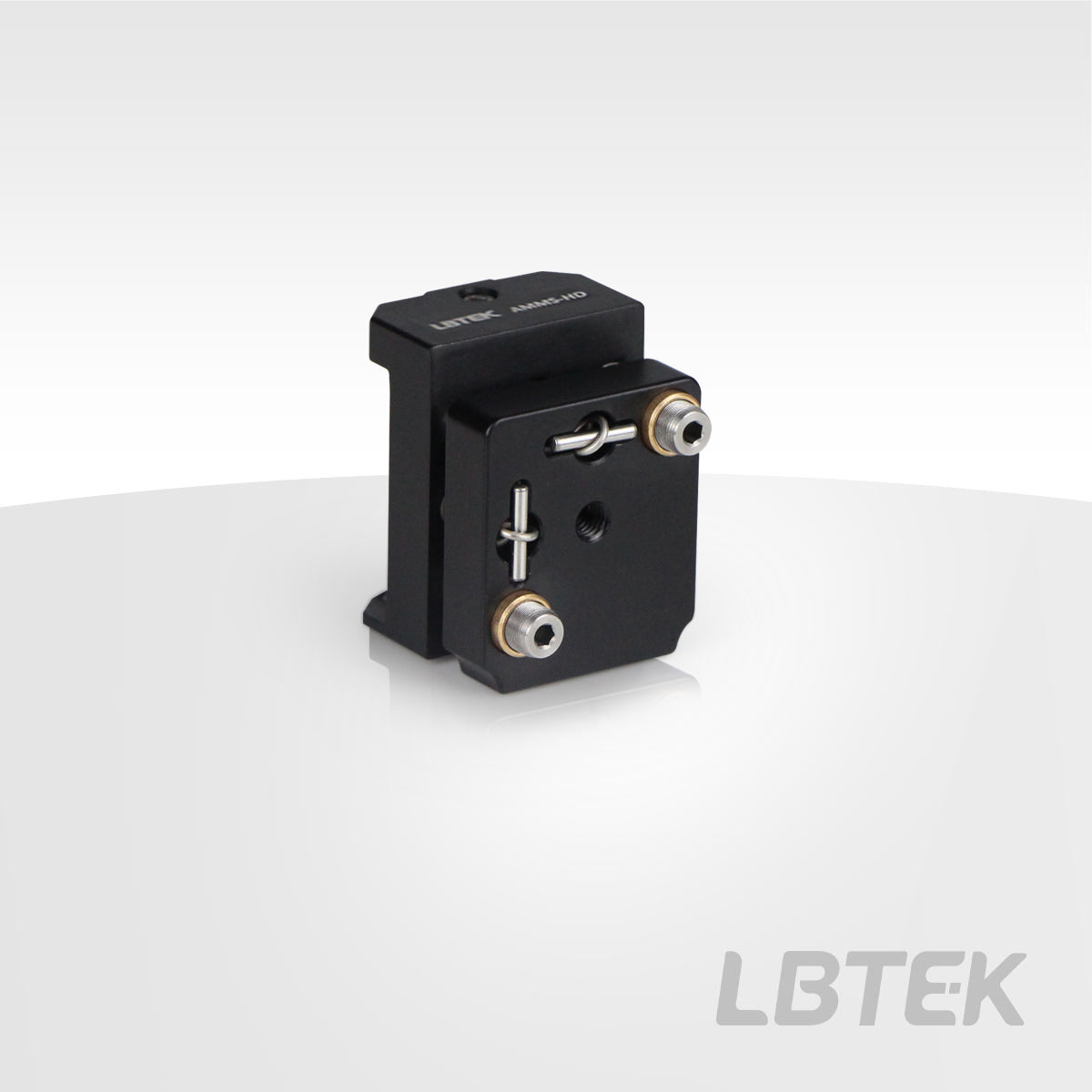

The front plate of the AMMS-M6 includes an M6 tapped hole for connecting to FMH25 and FMH25T mirror holders. The AMMS-HD's front plate features a rectangular slot designed to accommodate 1-inch high rectangular optical components. Additionally, each compact optical mount purchase includes a complimentary 2 mm hex key.
