Cuvette Holder

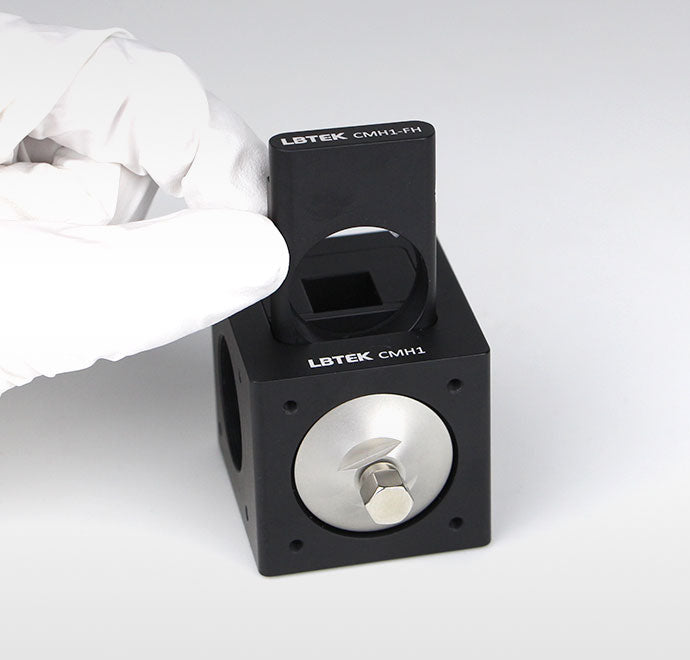

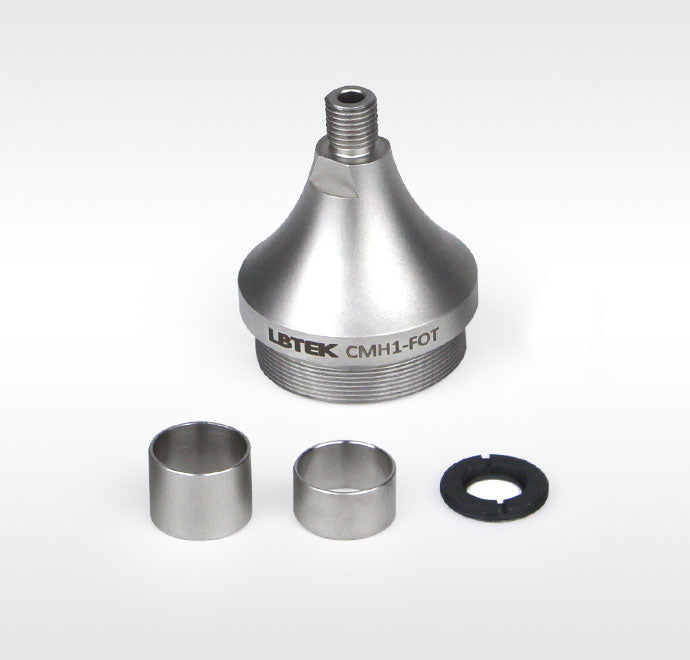

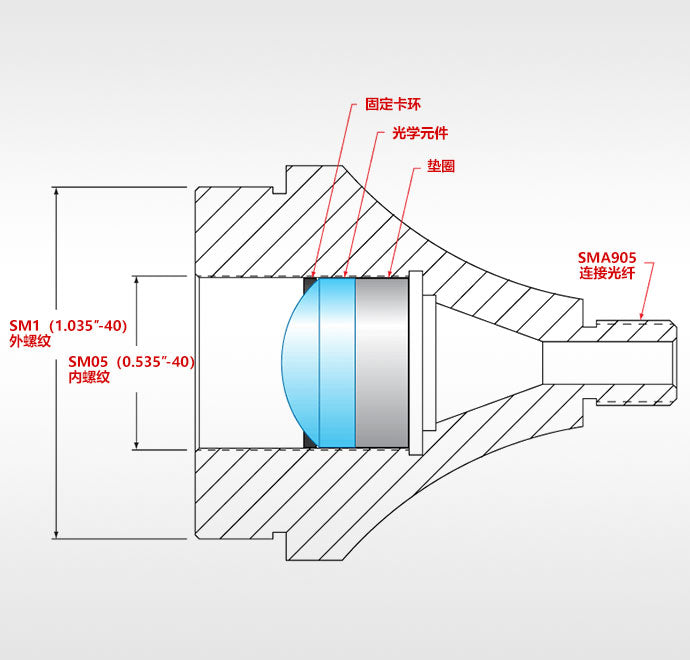

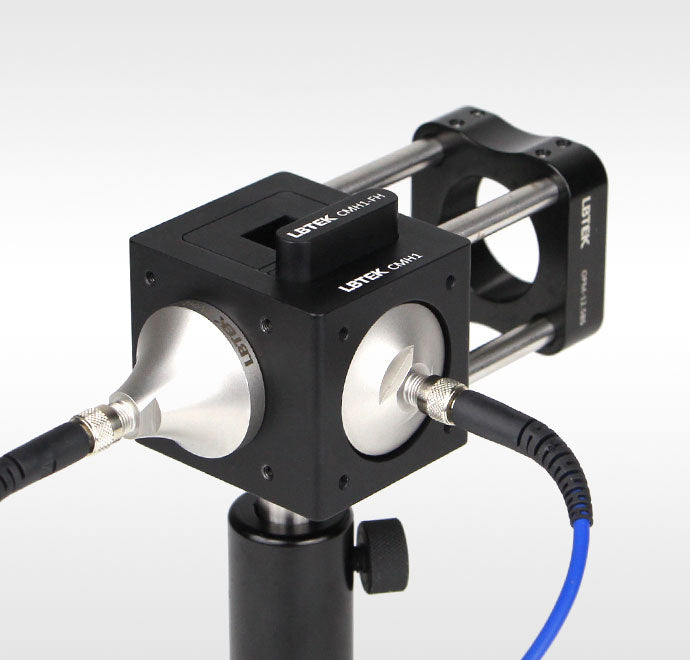

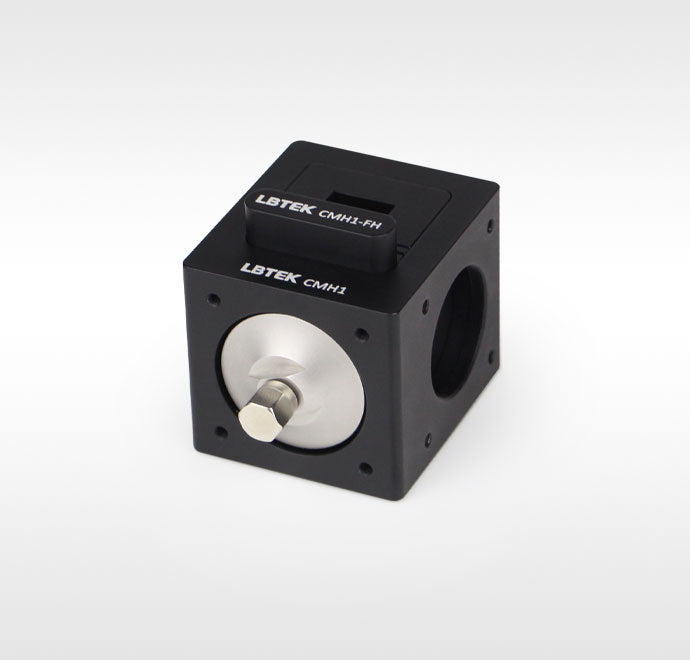

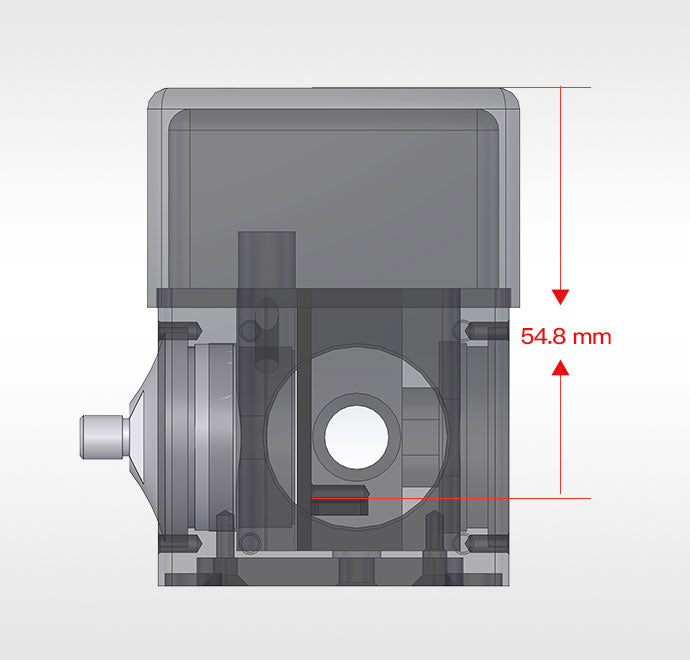

The LBTEK CMH1 Cuvette Holder is designed to hold cuvettes with dimensions of 12.5 mm × 12.5 mm × 45 mm, suitable for coaxial systems or free-space applications. The cuvette mount features four optical ports with SM1 threading, providing two perpendicular optical paths for measuring transmission or fluorescence. The two optical axes and the mounting axis of the bottom M6 threaded hole share a common crossing intersection point, allowing the mount to be rotated in free-space applications to maintain alignment of the optical axes. Typically, when purchasing cuvettes, a Z-direction dimension is specified, which is the height from the bottom of the cuvette to the center of the sample chamber window. The CMH1 and its accompanying fiber adapters are designed so that the beam height from the bottom of the cuvette is 8.5 mm.
