Gimbal Mirror Mounts

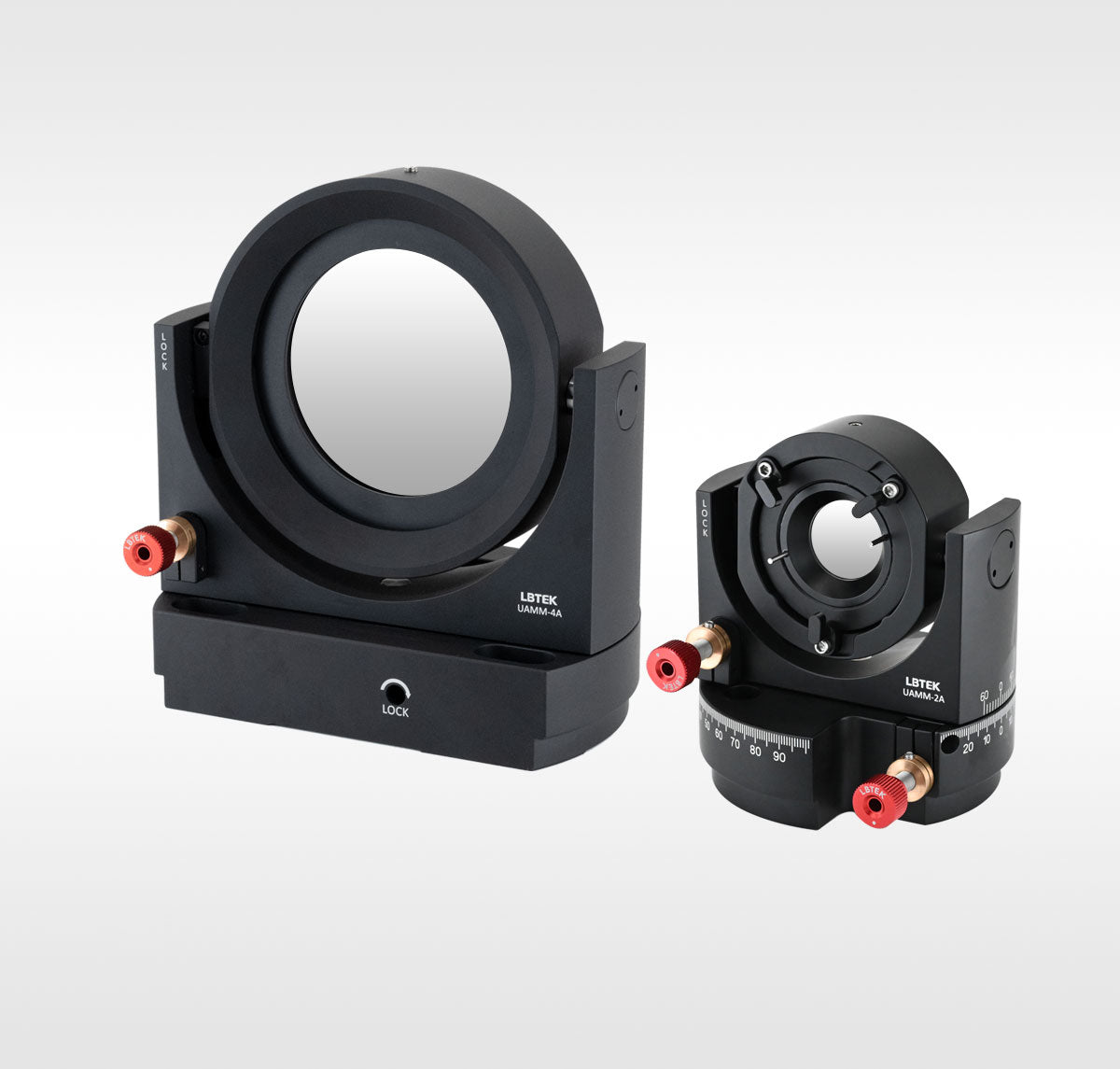

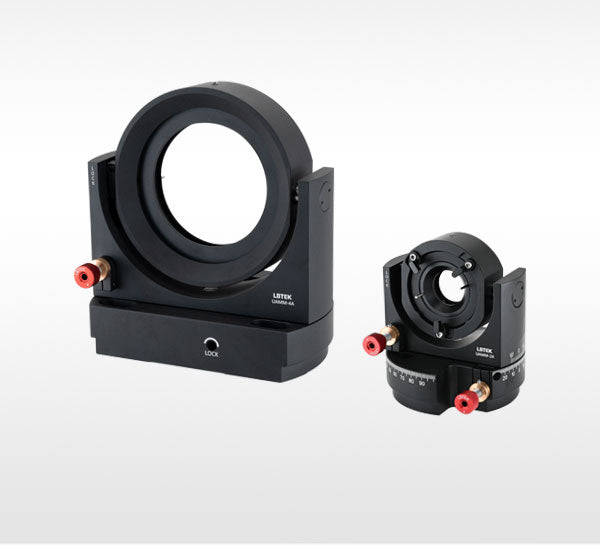

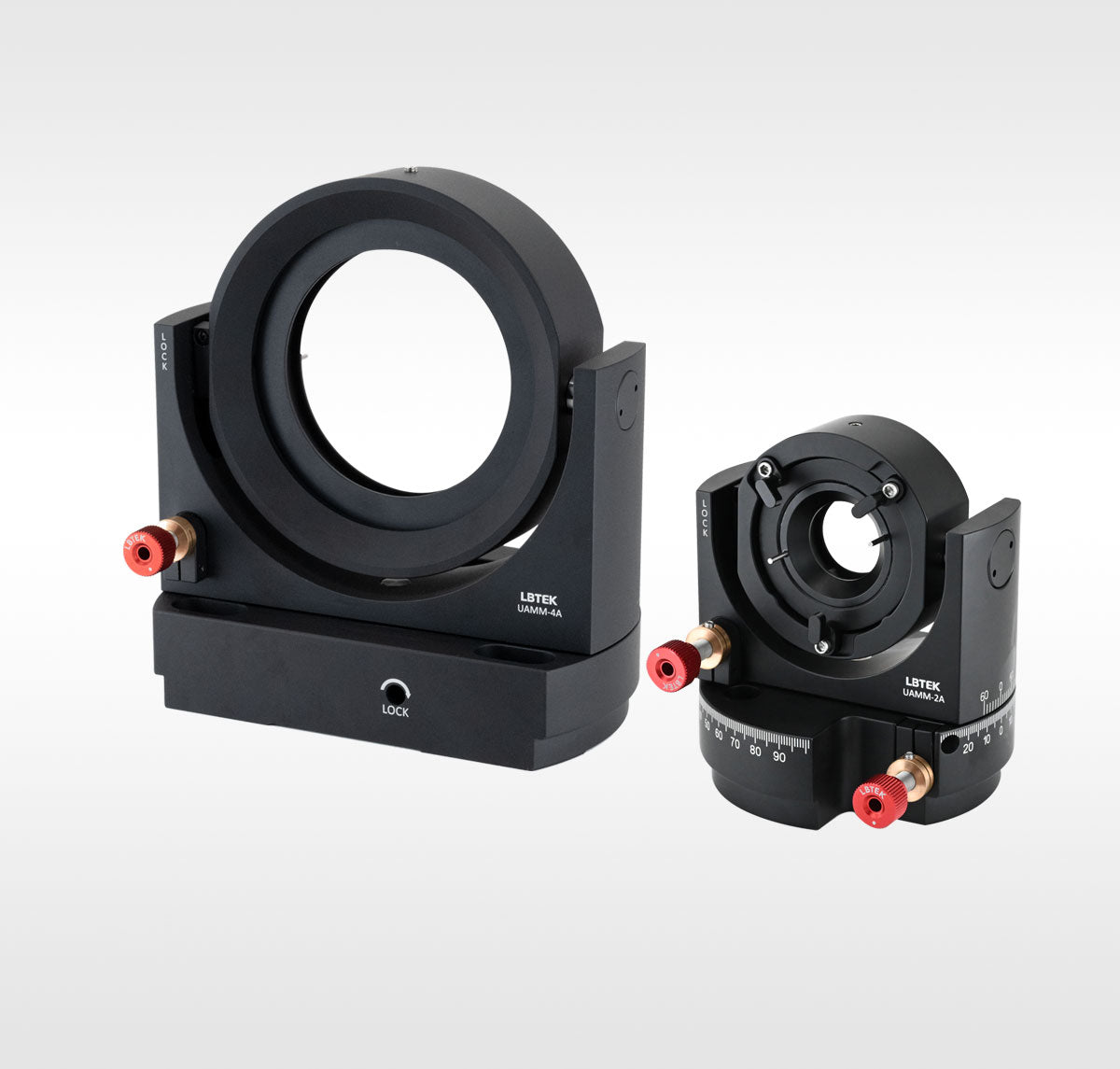

LBTEK offers two models of Full Rotation Range Gimbal Mirror Mounts, the UAMM-2A and UAMM-4A, featuring a gimbal adjustment design that enables 360° pitch/yaw adjustment. They offer dual adjustment modes: coarse and fine. The optical component's position can be roughly adjusted in pitch/yaw directions via 360° rotation and then locked. After locking, precise adjustments are possible using precision screw adjusters, achieving full rotation adjustment. These mounts accommodate optical components with four diameter specifications: Ø25.4mm, Ø50.8mm, Ø76.2mm, and Ø101.6mm.
