Magnetic Quick-Release Mounts

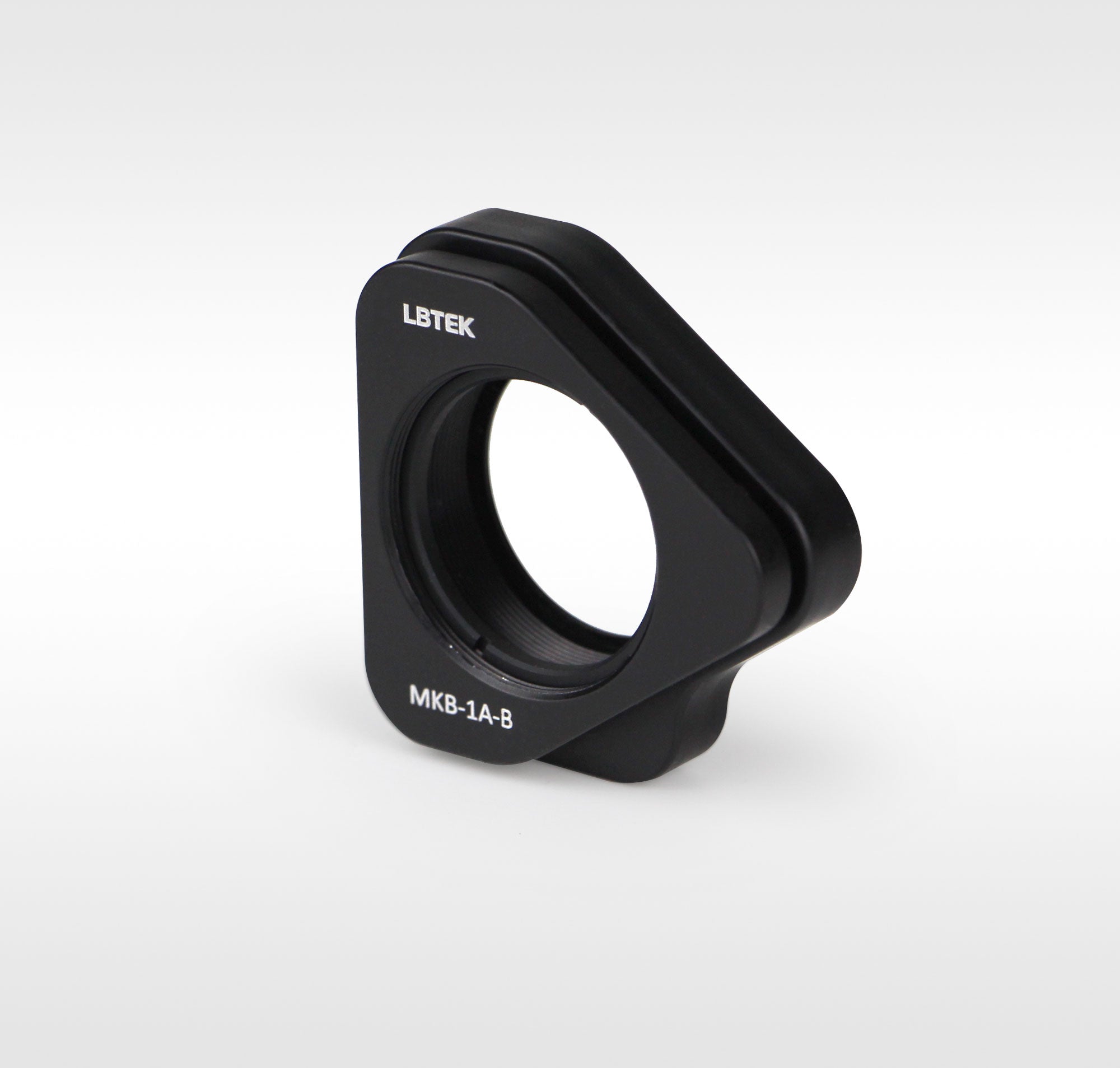

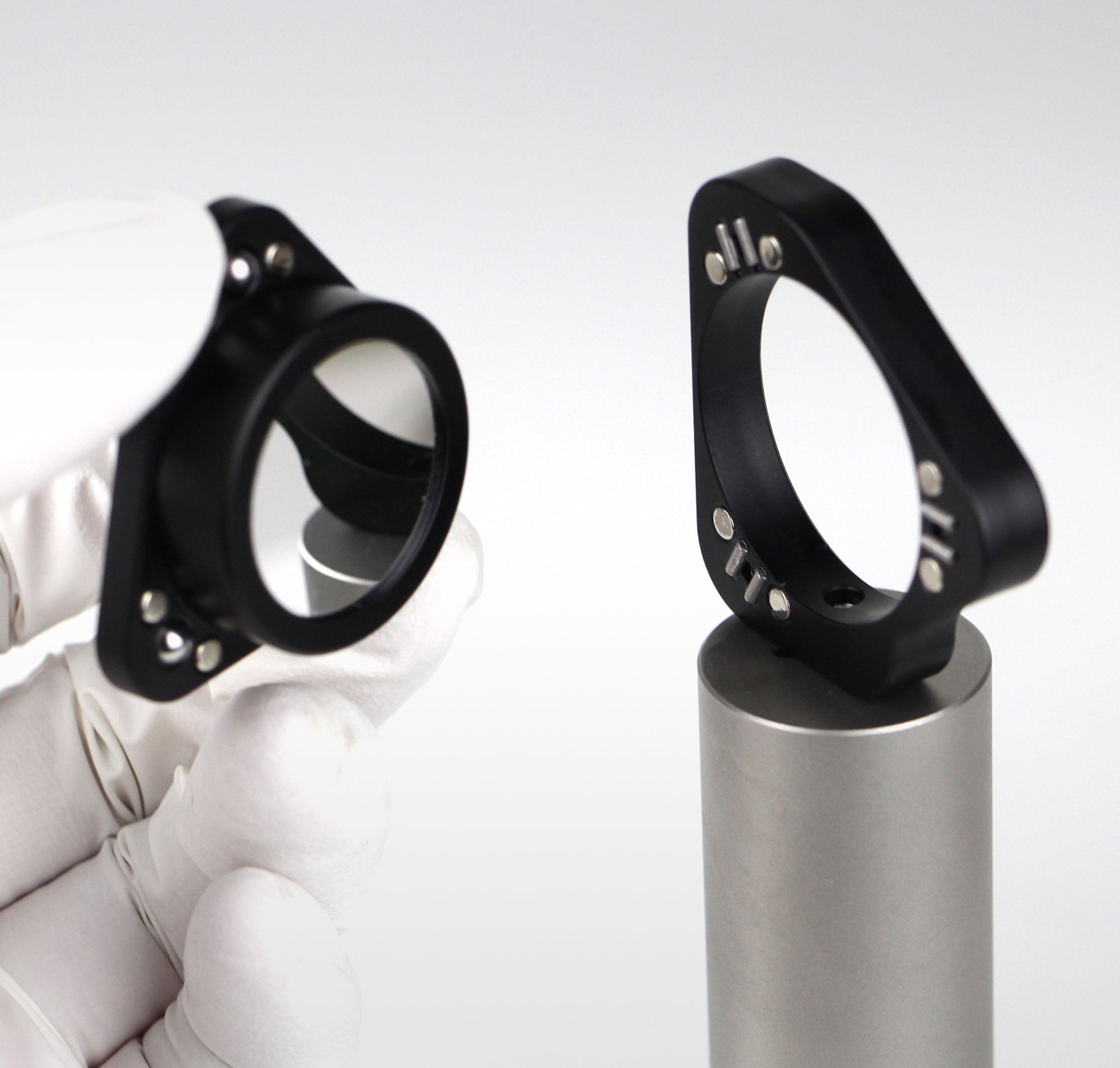

LBTEK Magnetic Quick-Release Mount for free space, featuring a central SM1 thread for mounting optical components with a diameter of 25.4 mm. The connection is achieved through two pairs of strong magnets, ensuring easy installation and removal. The top and bottom plates incorporate a design with balls and V-groove for precise positioning. The positioning structure adopts a three-point contact system to enhance stability and repeatability, with each contact point formed by a precision steel ball and two parallel precision cylindrical pins, creating the positioning mechanism.
