Vertically Mounted Optical Mounts

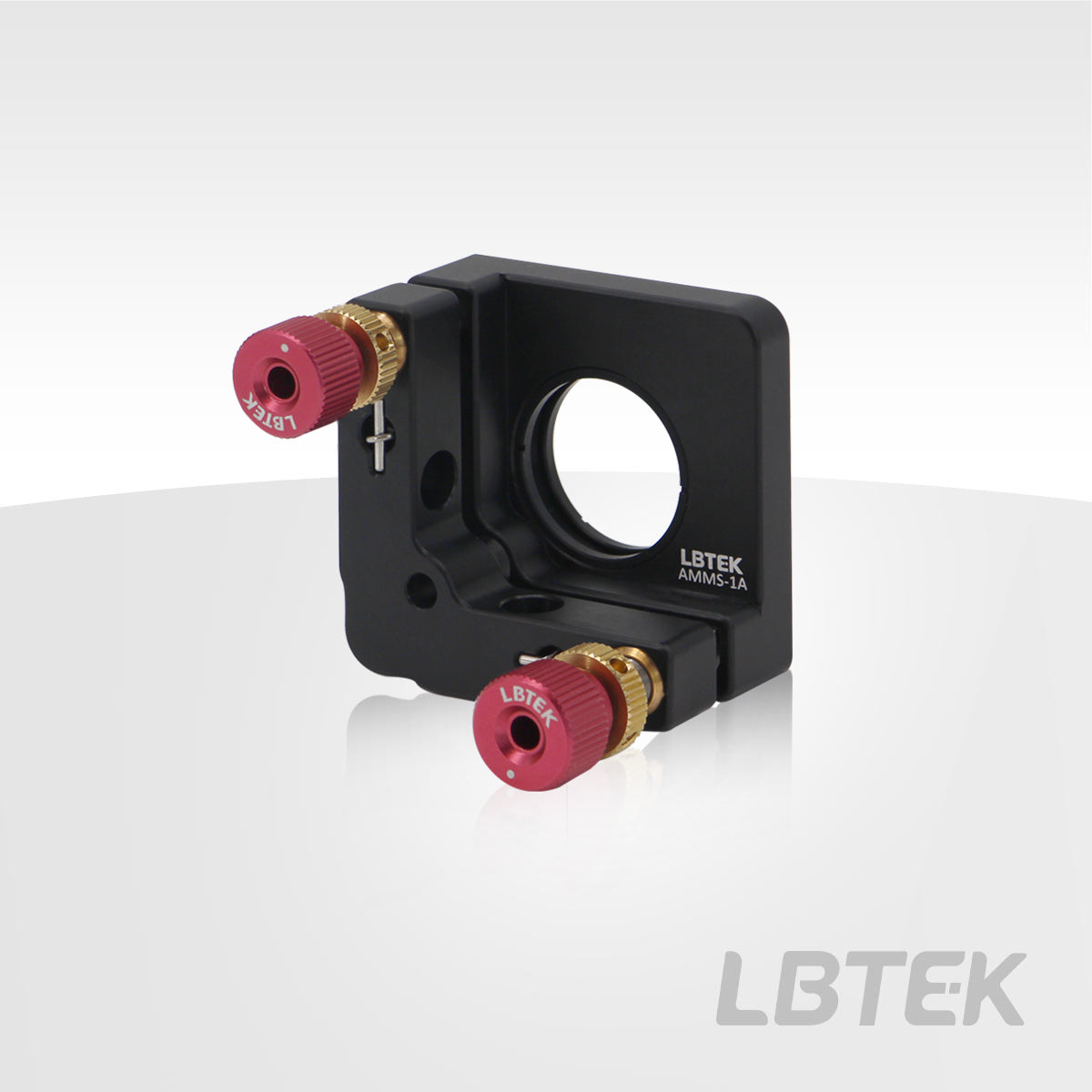

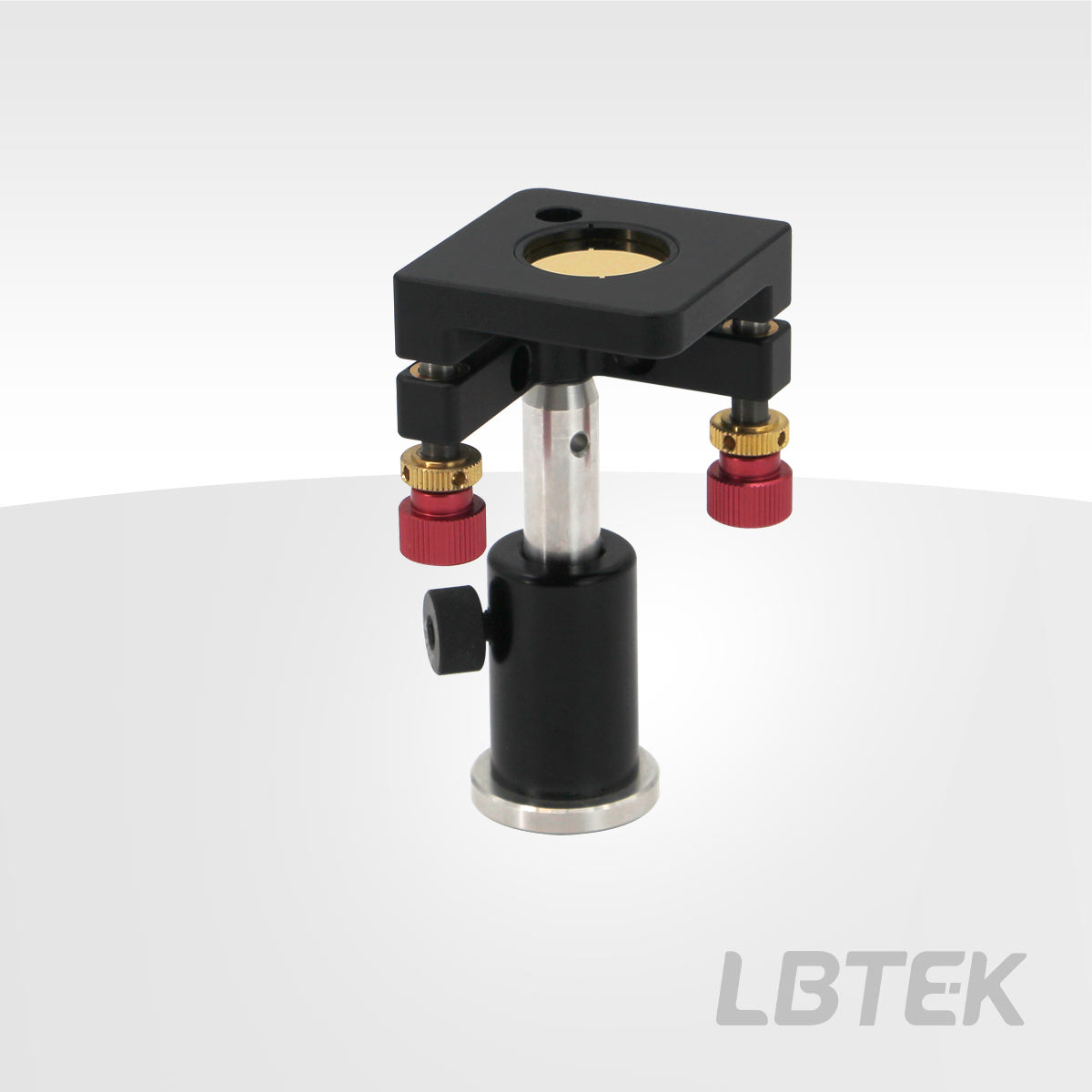

The LBTEK Square Optical Mount features a through-hole with internal threads and utilizes an SM1 retaining ring wrench to secure thin optical components with the included two retaining rings. The AMMS-1A is designed for mounting Ø25.4 mm optical components with a maximum thickness of 3.5 mm. It includes two M6×0.25 adjustment screws with locking nuts, enabling ±4° pitch and yaw adjustment with a precision of 0.4° per rotation. The mount comes with three M4 countersunk holes and can be installed on a post in orientations suitable for left-handed, right-handed, or facing upward.
