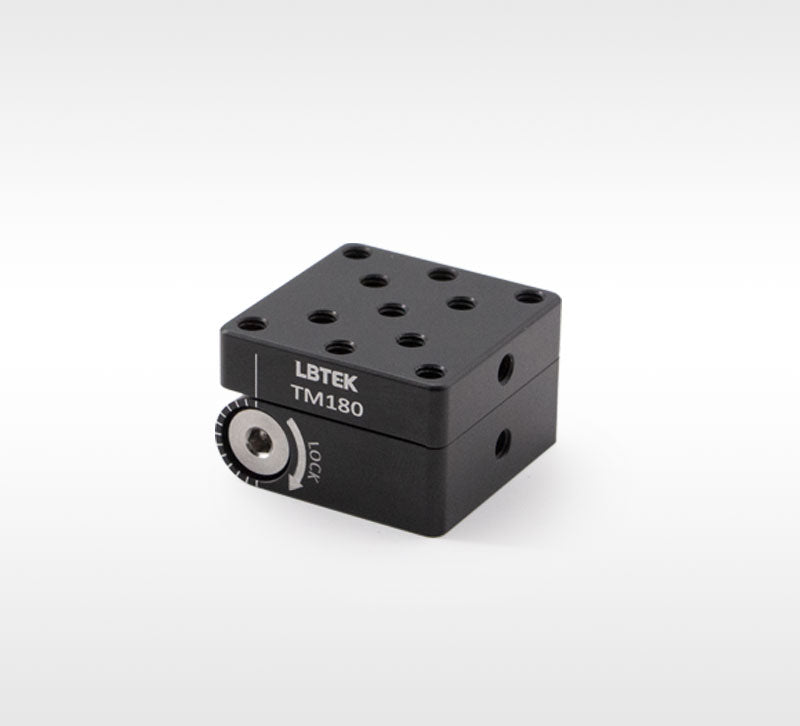

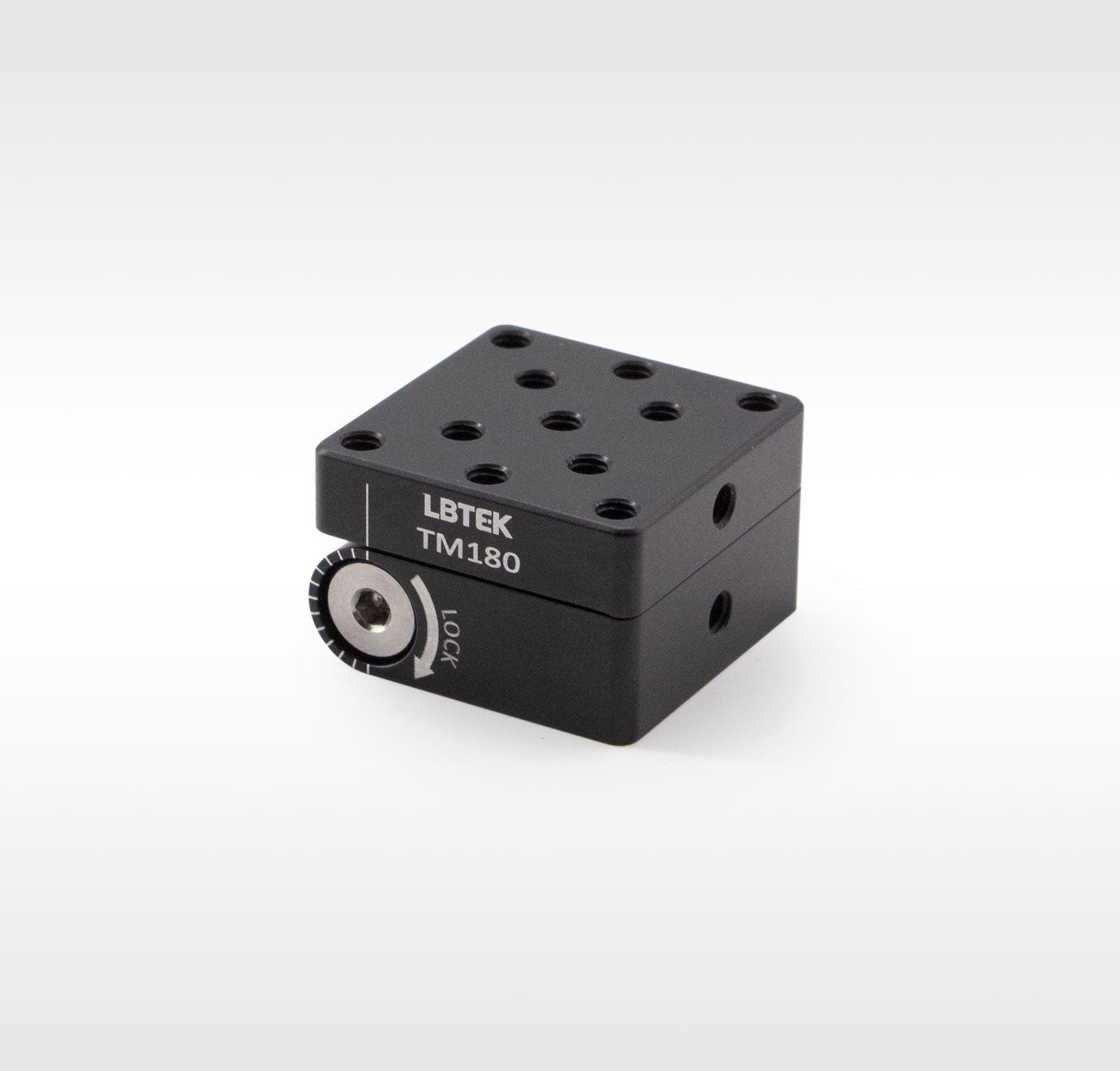

180° Flip Platform

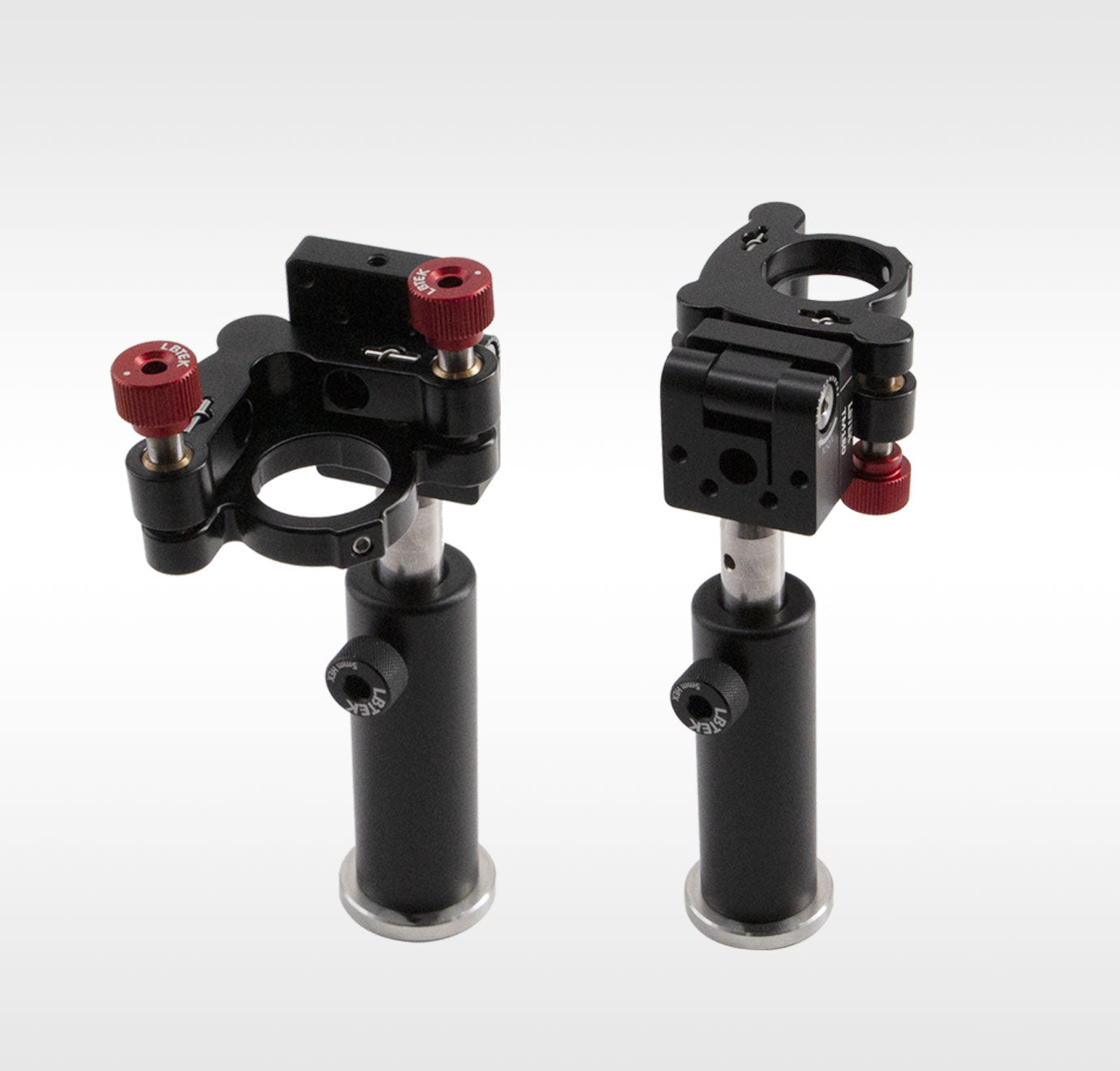

The LBTEK 180° flip platform, when used with other mechanical components, allows the mounted optical components to be moved out of or back to the optical path. The flip platform offers flexible mounting options for components. When mounted using the M4 countersunk holes at the center of the base plate, the top plate can be locked at any angle between 0° and 90° relative to the optical table surface. When mounted using the M4 threaded holes on the side, the top plate can be adjusted between -90° and +90° relative to the optical table surface. The flip platform allows the removal of the fixing bolts to separate the top plate from the base plate. After swapping their positions and reassembling the flip platform, it can be converted into either a left-handed or right-handed configuration. Users can choose the direction of the bolts to select a more suitable orientation for their experimental setup.
