Ø6 mm Post Holder

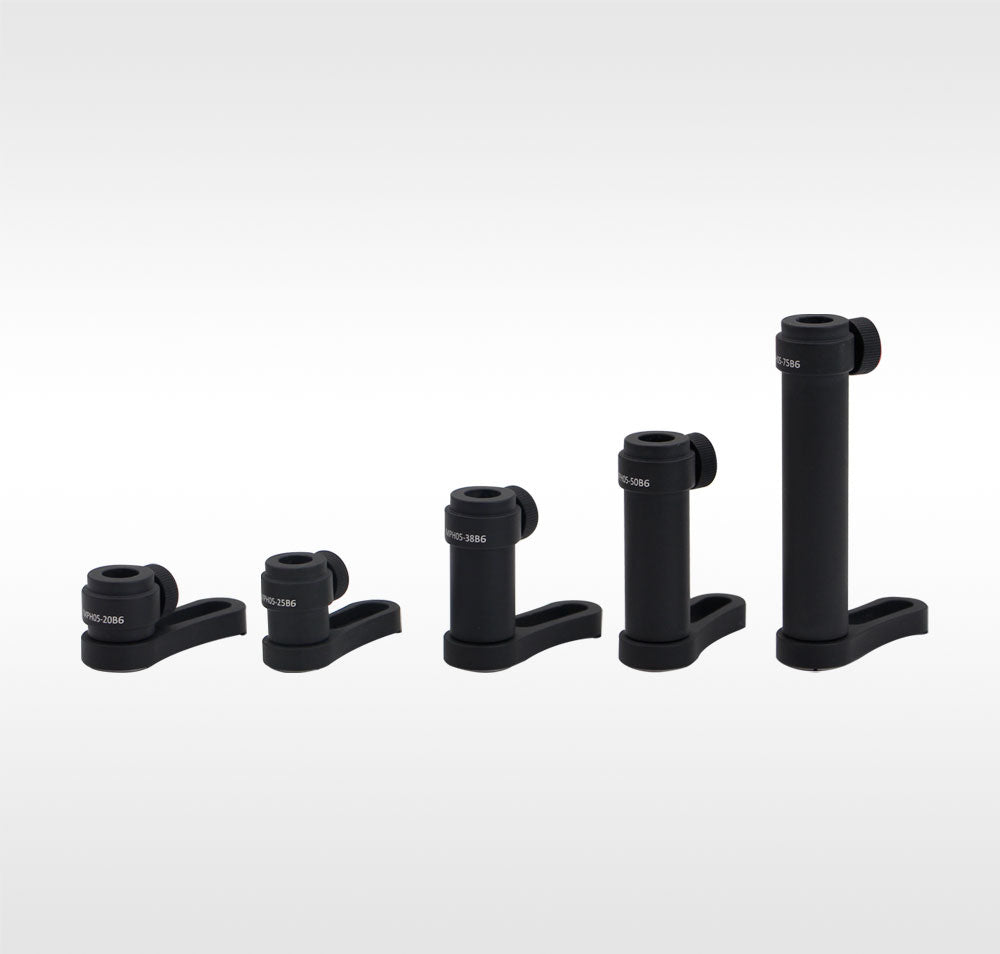

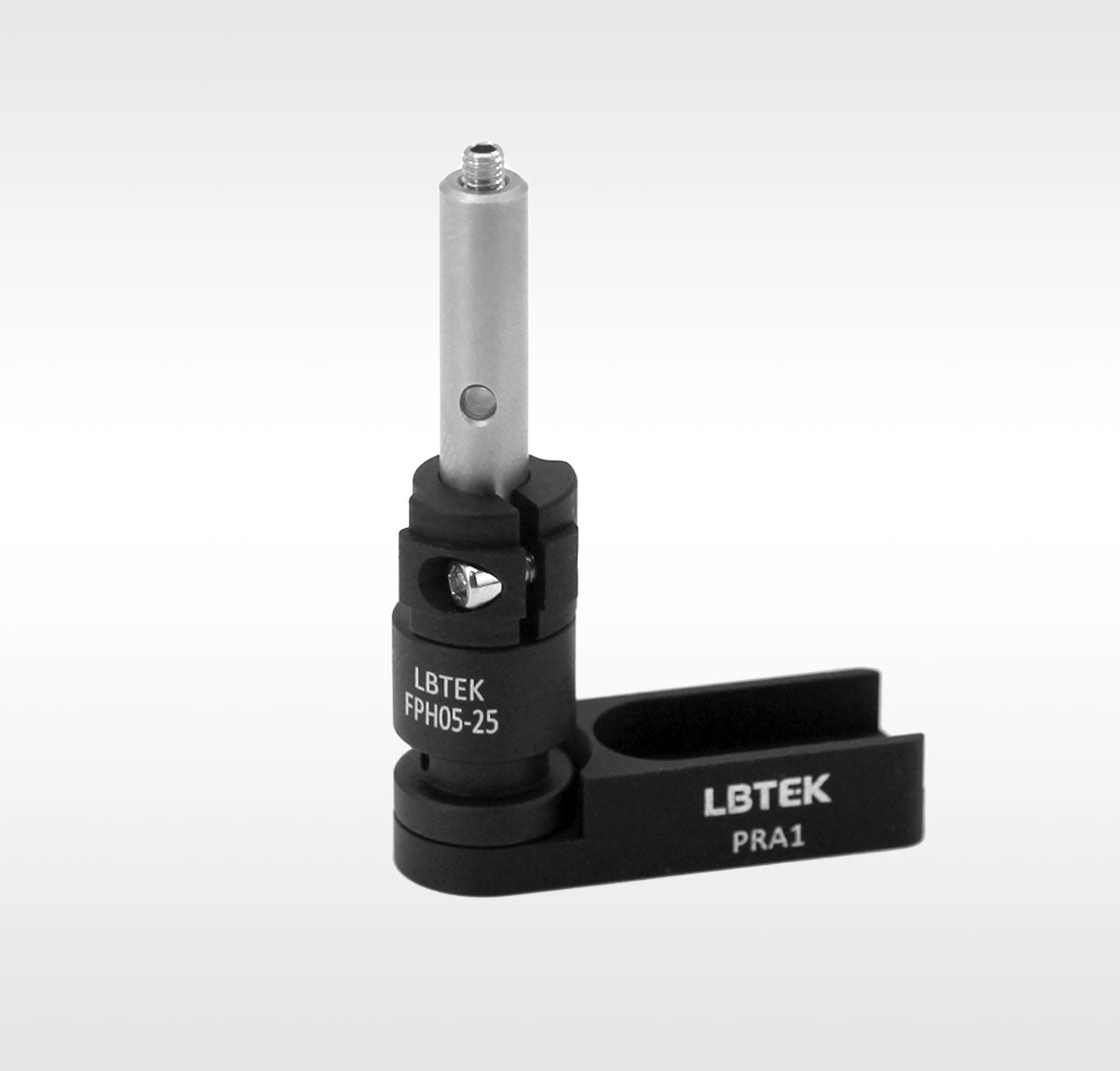

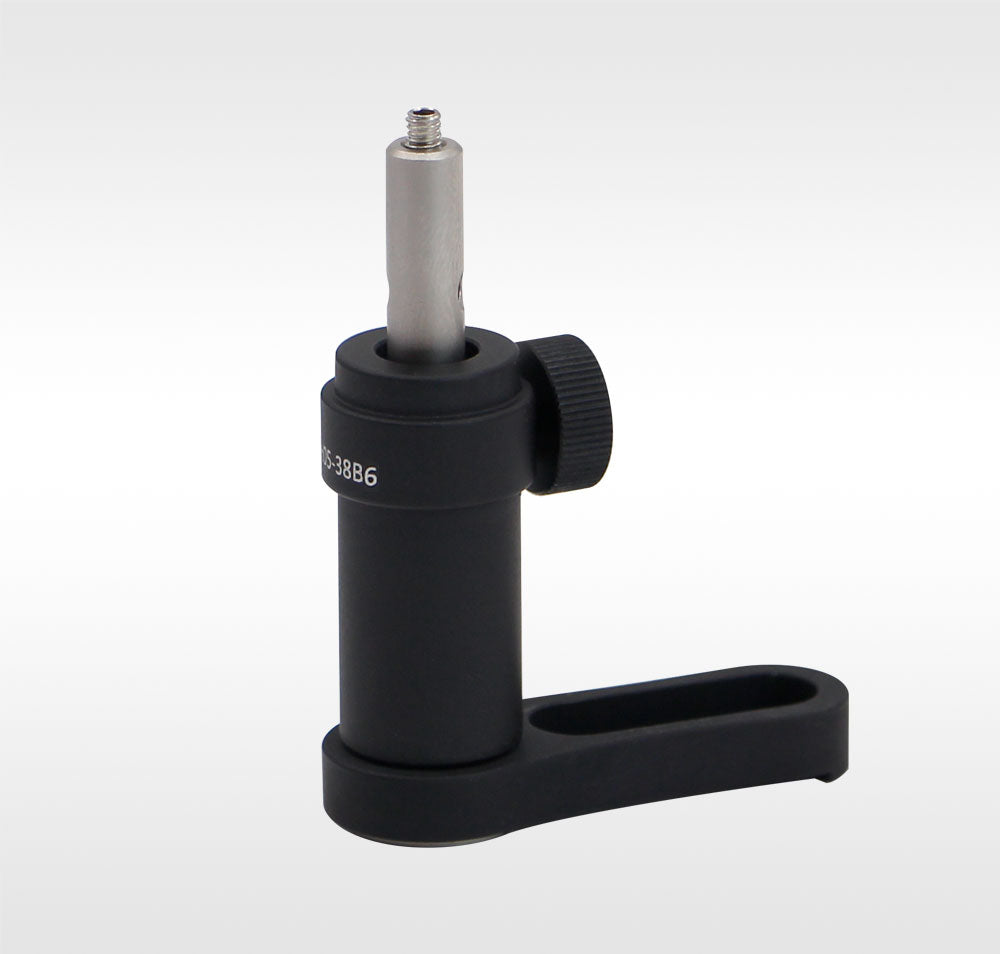

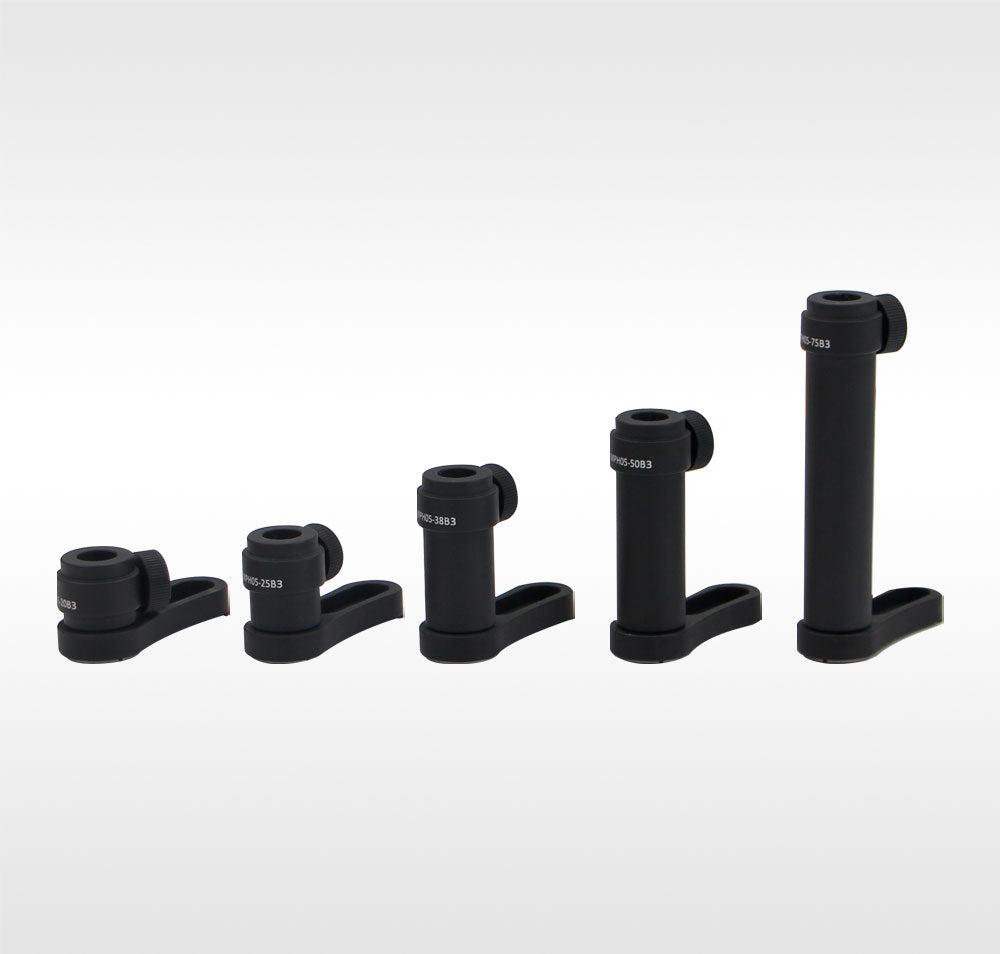

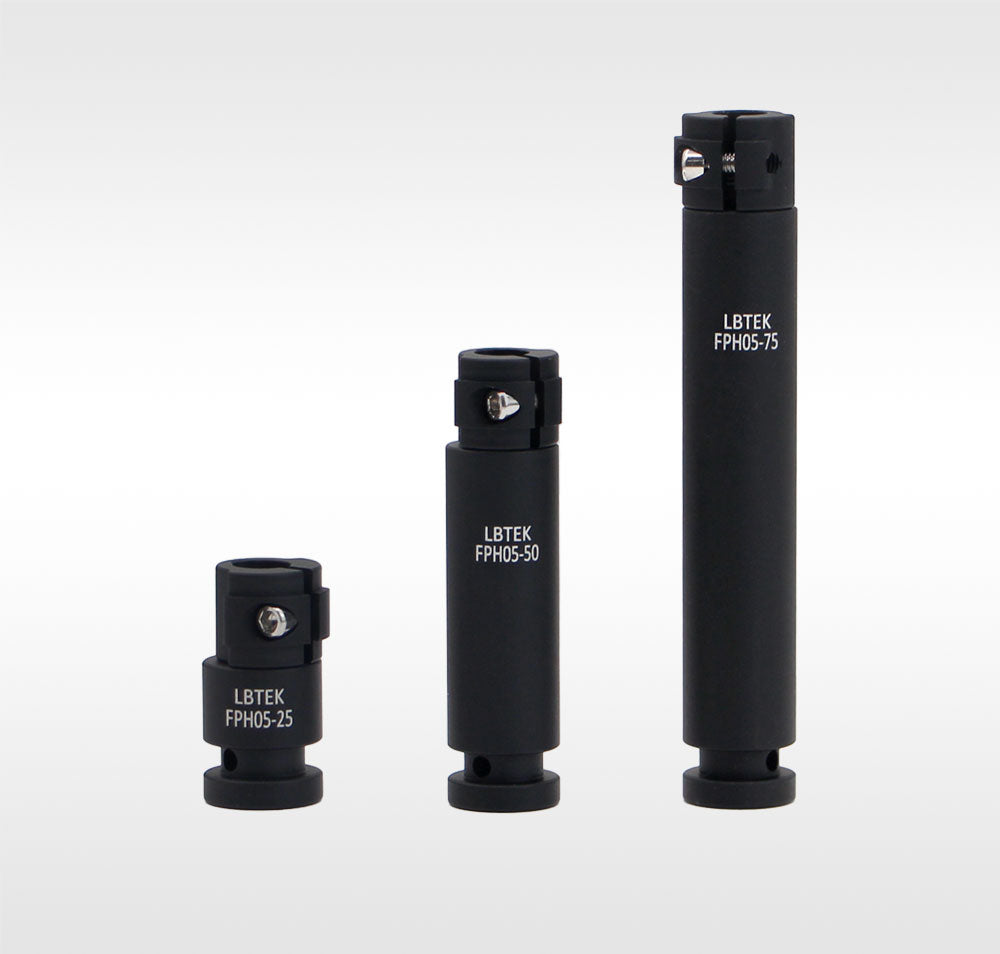

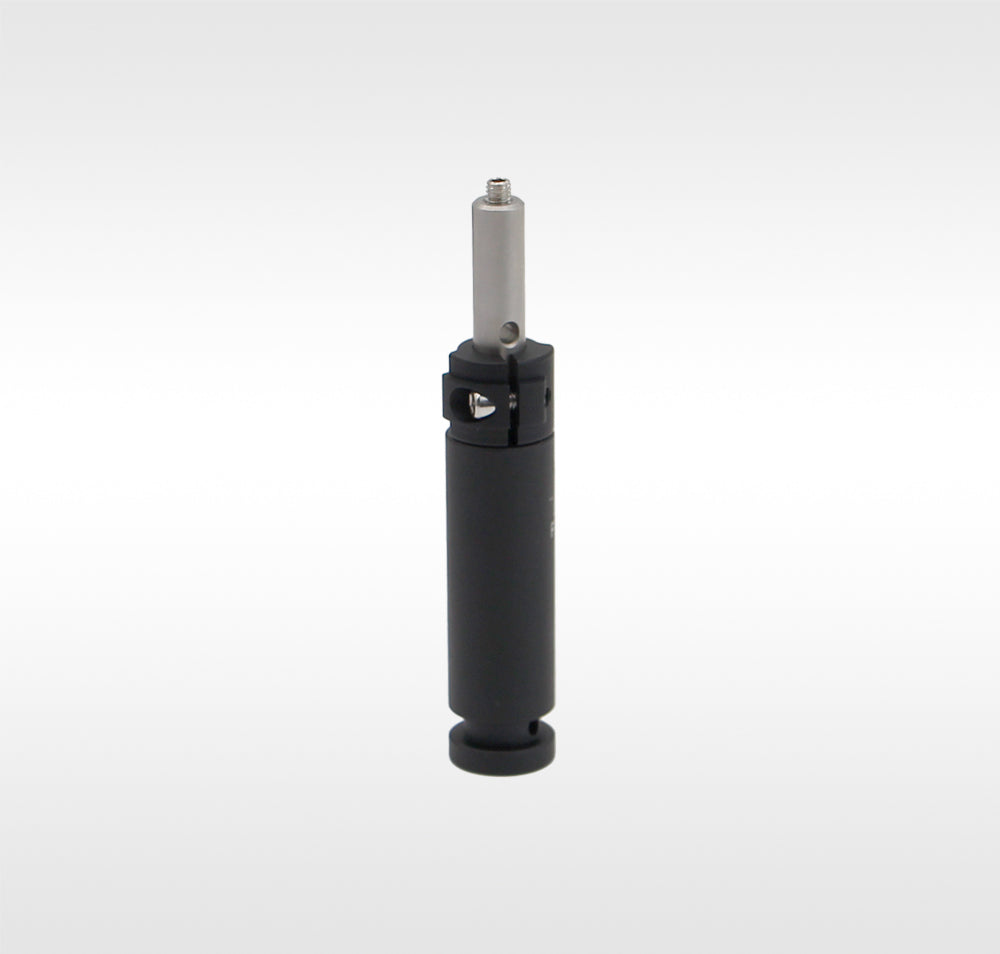

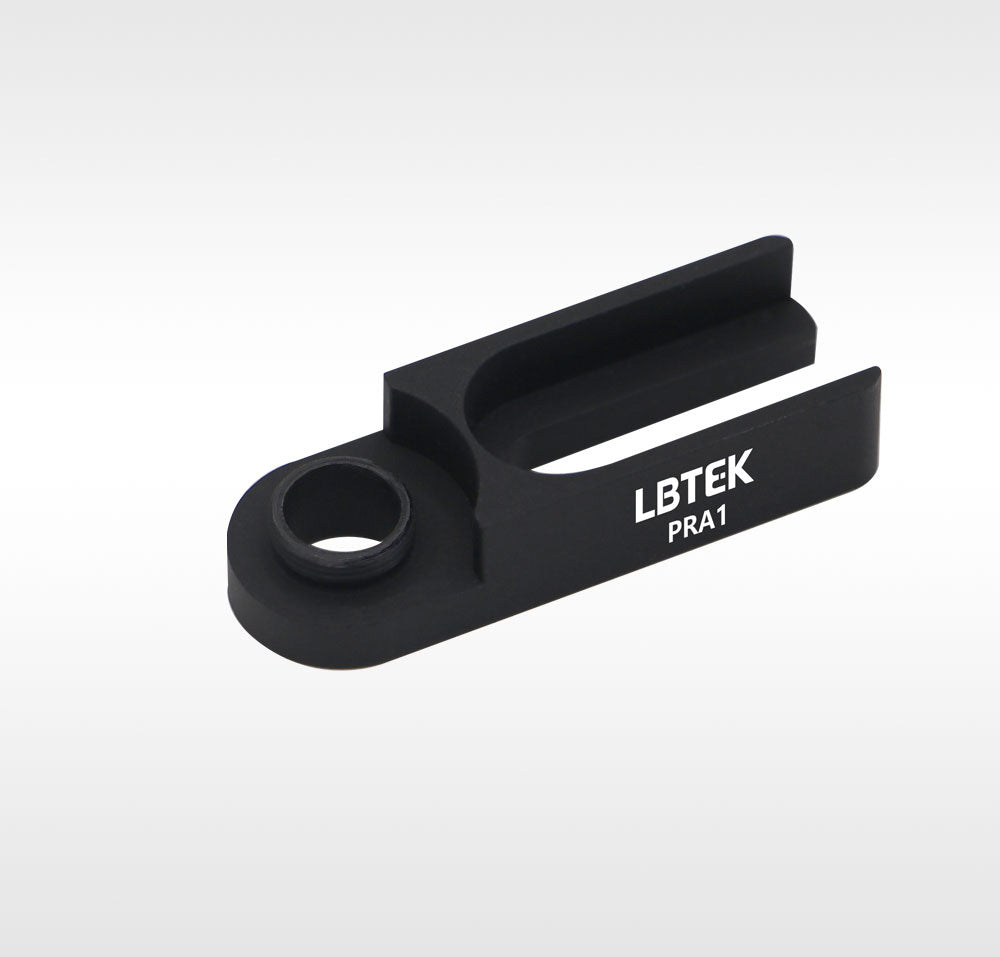

The post holders from LBTEK comprise two types: the Ø6 mm post holder and the Ø12.7mm flexible post holder. The difference between them lies in that the Ø6 mm post holder (MPH05-xxBx series) features an knurled aluminum thumb socket screw and a 360°rotatable base, while the Ø6 mm flexible post holder (FPH05-xx series) comes with a 360° rotatable flexible clamp and an M8×0.5 screw thread at the bottom, which can be used with the PRA1 base from LBTEK. Both types of post holders have hollow bases that allow Ø6 mm posts to be placed on an optical platform, achieving the maximum possible height adjustment range for the post, with inner wall grooves forming dual-line contact with the post to prevent sliding. Additionally, the Ø6 mm post holder offers M3 (MPH05-xxB3 series) and M6 (MPH05-xxB6 series) mounting slot options, while the bottom of the Ø6 mm flexible post holder can be paired with a mini clamping fork block for fixation on a breadboard.
