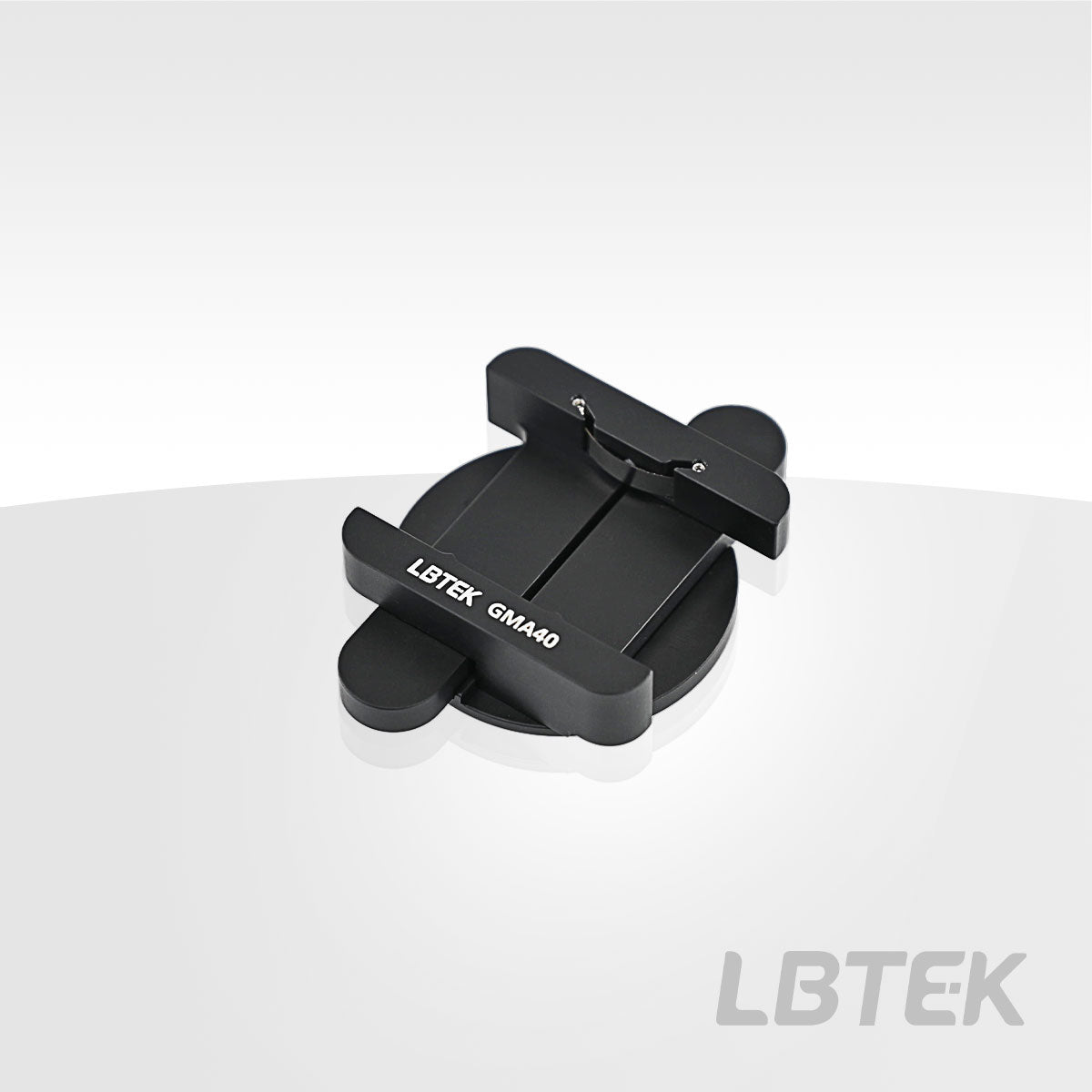

Grating Adjustment Mount Adapter
Grating adjustment mount adapter from LBTEK is compatible with Ø1-inch smooth-bore optical adjustment mounts. This assembly method enables precise pitch and yaw angle adjustments of the mounted grating and rectangular mirror. Featuring a straightforward mechanism, the adapter allows height adjustment by sliding the upper and lower compression blocks, which causes the M3 mounting screws on their rear faces to translate within precision-machined slots. Finalize the positioning by tightening the two rear M3 screws to secure the grating and rectangular optics.
