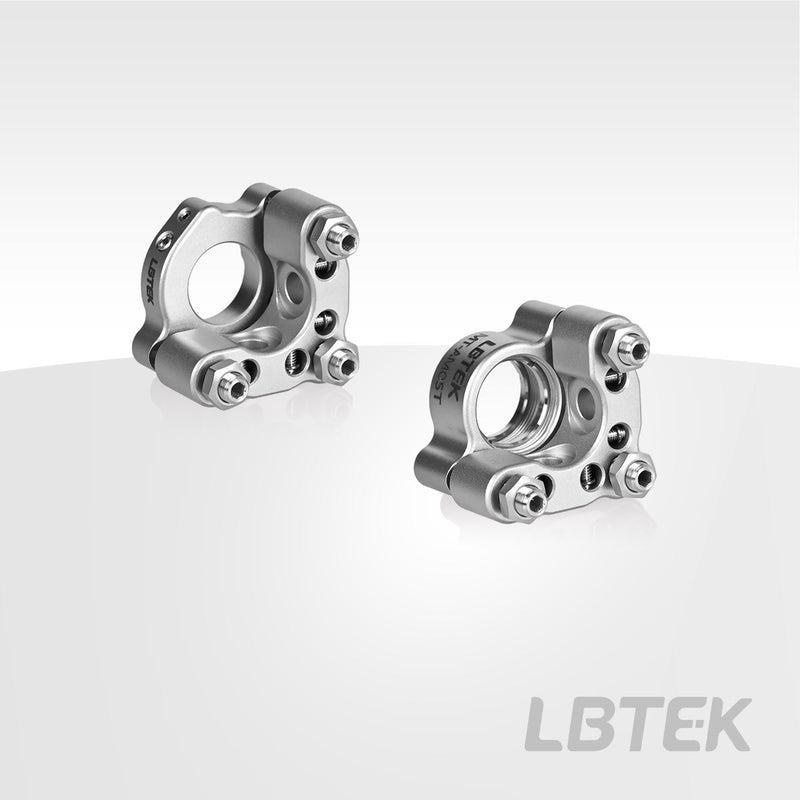

0.5-inch Stainless Steel Optical Mounts MT-AM05

The LBTEK 0.5-inch Stainless Steel Mirror Mount is designed for mounting optical components with a diameter of 12.7 mm, featuring three knobless M4×0.2 precision adjusters. Two low-deformation optical component fixation methods are available: the MT-AM05 uses flexible spring pieces and set screws to secure the optical component, with a minimum component thickness of 2 mm; the MT-AM05T employs retaining rings for direct fixation, and two stainless steel retaining rings are included with the purchase. The maximum thickness for ring-fixed optical components should not exceed 6.6 mm. The three knobless M4×0.2 precision adjusters allow for adjustment of the optical component's pitch and yaw using a hex key. The side of the optical adjustment mount features M4 countersunk mounting holes. Purchasing the LBTEK stainless steel mirror mount includes ultra-thin hex head screws and a hex key.
