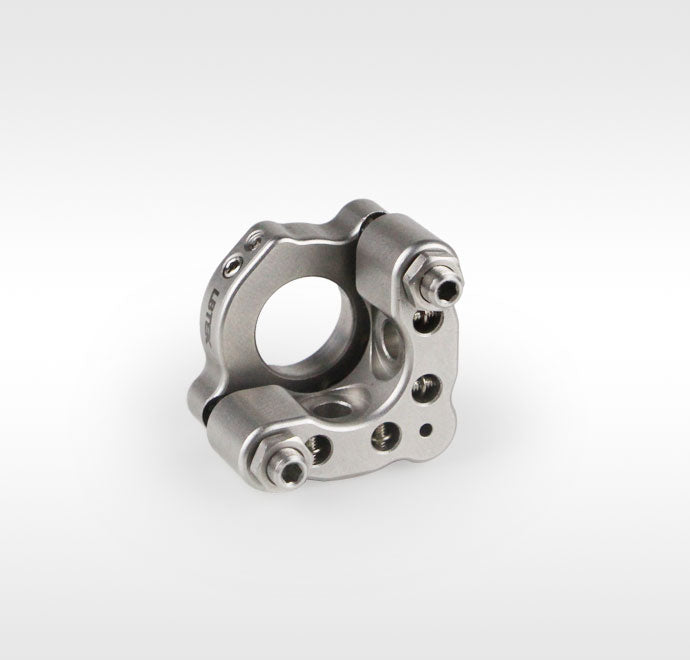

0.5-inch Stainless Steel Optical Mounts MT-AM05S2
MT-AM05S2$180.89
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The 0.5-inch Stainless Steel Optical Mounts MT-AM05S2 from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today
LBTEK 0.5-inch Stainless Steel Mirror Mounts are for mounting optical components with 12.7 mm diameter, featuring 2 knobless M4Ć0.2 precision adjusters with locknuts (6 mm hex nuts), adjustable using MT-TW6 torque wrench. Optical components are secured by flexible spring pieces and set screws, with a minimum component thickness of 2 mm. The 2 knobless M4Ć0.2 precision adjusters with locknuts allow pitch and yaw adjustment of optical components via hex wrench. The optical mount has M4 countersunk mounting holes on the side. LBTEK Stainless Steel Mounts come with ultra-thin hex socket head screws and hex wrench included.
Key Features
- For mounting optical components with a diameter of 12.7 mm
- 2 M4Ć0.2 precision adjusters with locknuts (knobless)
- Adjustable angle: Ā±5Ā°
- Adjustment precision: 0.65Ā°/rotation
- Optical component secured by flexible spring pieces and set screws
Application
Stainless steel mirror mounts with locknuts
| Material | 316L stainless steel |
| Surface Treatment | Sandblasting |
| Applicable optical component size | Ć12.7 mm |
| Optical component mounting method | Flexible spring piece and set screw |
| Countersunk Hole Specification/Quantity | M4/2 pcs |
| Optical axis center height | 12.7 mm |
| Mounting Hardware Included | 2 M4Ć10 hexagon socket ultra-thin head screws |
| Adjustment Resolution | 0.65Ā°/rotation |
| Minimum optical element thickness | 2 mm |
| Hex Wrench | One 2.0 mm hex key and one 1.5 mm hex key |
| Pitch/Yaw Angle | Ā±5Ā° |
| Adjuster specifications/quantity | Knobless Locking Nut M4Ć0.2 Precision Adjuster/2 pcs |
