0.5-inch Stainless Steel Optical Mounts MT-AM05S5
MT-AM05S5$342.75
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The 0.5-inch Stainless Steel Optical Mounts MT-AM05S5 from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

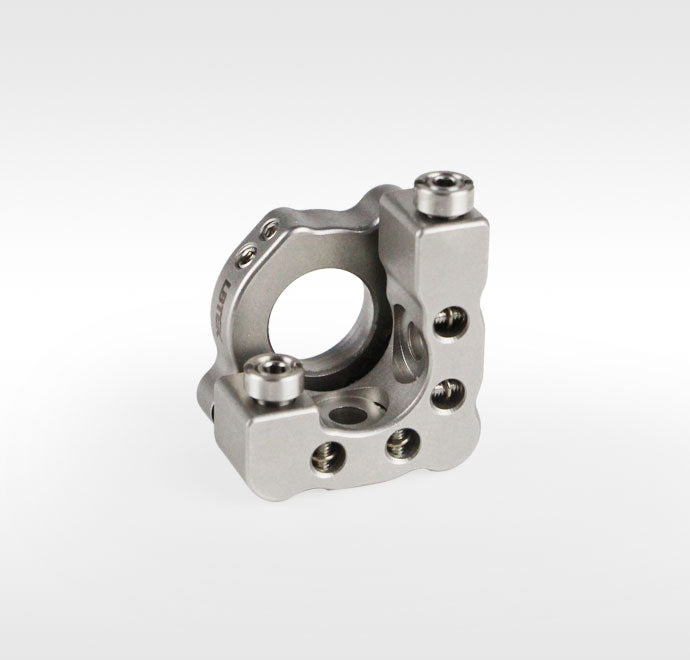

LBTEK 0.5-inch Stainless Steel Mounts, with 2 lock rings and vertical actuator adjusters, designed for optical components with a diameter of 12.7 mm in situations where there is no space behind the mount to use horizontal adjusters. The optical component is secured via flexible spring pieces and set screws. The two M4Ć0.20 precision adjusters with lock rings (knobless) provide an angular adjustment range of Ā±4Ā° for the mount. The knobless adjusters are adjusted using a hex key. Additionally, the optical adjustment mount features M4 countersunk mounting holes on the side. The purchase includes 2 M4 thin-head hex screws and one each of 2.0 mm and 1.5 mm hex keys.
Key Features
- For mounting optical components with a diameter of 12.7 mm
- 2 precision adjusters with lockrings (knobless)
- Adjustable angle: Ā±4Ā°
- Adjustment precision: 0.65Ā°/rotation
- Optical component secured by flexible spring pieces and set screws
Application
0.5-inch stainless steel mirror mount used with stainless steel posts and non-bridging clamping arm
| Lead Time | In Stock |
Product Family: 0.5-inch Stainless Steel Optical Mounts (14 variants)
