The 0.5-inch vacuum-compatible stainless steel optical mount VSS-MT-AM05S1 from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

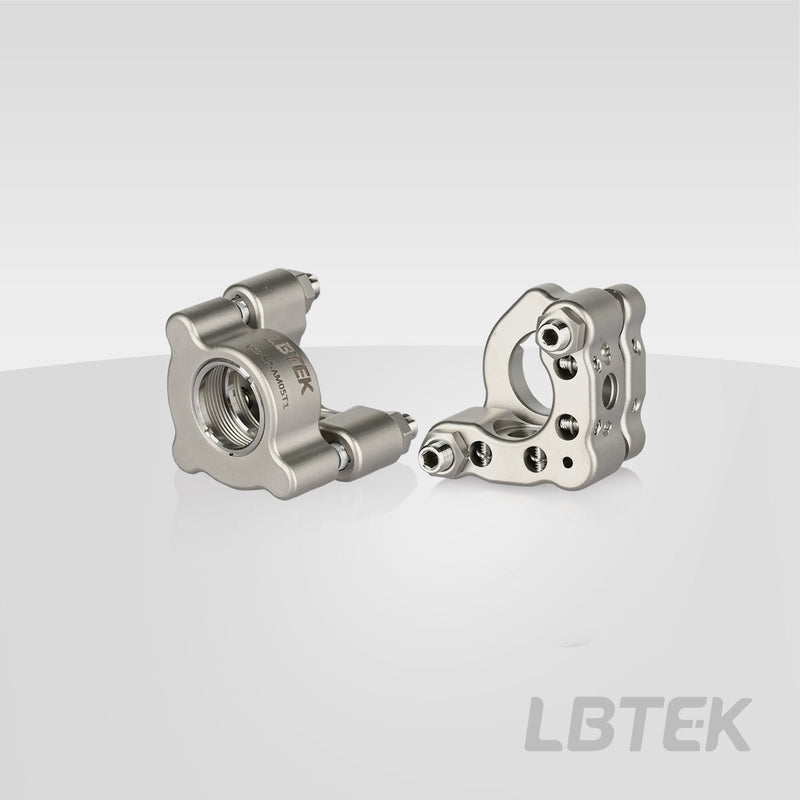

LBTEK 0.5-inch Vacuum Stainless Steel Mount for mounting 12.7 mm diameter optical components, with 2 knobless M4×0.2 precision adjusters. Two optical component fixing methods are available: VSS-MT-AM05S1 uses flexible spring plates and a set screw to secure the optical component, with a minimum component thickness of 2 mm; VSS-MT-AM05T1 uses a retaining ring to directly secure the optical component. The purchase of the mount includes 2 stainless steel retaining rings, and the maximum thickness for the retaining ring fixed optical component is 6.6 mm. The 2 knobless M4×0.2 precision adjusters allow for adjustment of the optical component's pitch and yaw using a hex key. The side of the optical mount features an M4 countersunk mounting hole. Purchasing the LBTEK vacuum-compatible mount includes vacuum-compatible hex socket ultra-thin head screws (with vent holes) and a hex key.
Key Features
- For installing optical components with a diameter of 12.7 mm
- 2 M4×0.2 precision adjusters without knobs
- Adjustable angle ±5°
- Two optical component fixing methods available
Application
0.5-inch vacuum stainless steel mounts are commonly used for installing optical components such as mirrors.
| Material | 316L Stainless Steel |
| Surface Treatment | Sandblasting |
| Applicable optical component size | Ø12.7 mm |
| Pitch/Yaw Angle | ±5° |
| Adjustment Resolution | 0.65°/revolution |
| Countersunk Hole Specification/Quantity | M4/2 pcs |
| Optical axis center height | 12.7 mm |
| Optical component mounting method | Flexible spring clip fixation |
| Mounting Hardware Included | 2 M4×10 internal hex ultra-thin head vacuum screws (with air holes) |
| Adjuster specifications/quantity | Knobless M4×0.2 Precision Adjuster / 2 pcs |
| Minimum optical element thickness | 2 mm |
| Vacuum Rating | Before baking: 10^(-6) Torr, after baking: 10^(-9) Torr; Oil saturated vapor pressure: 10^(-12) Torr |
