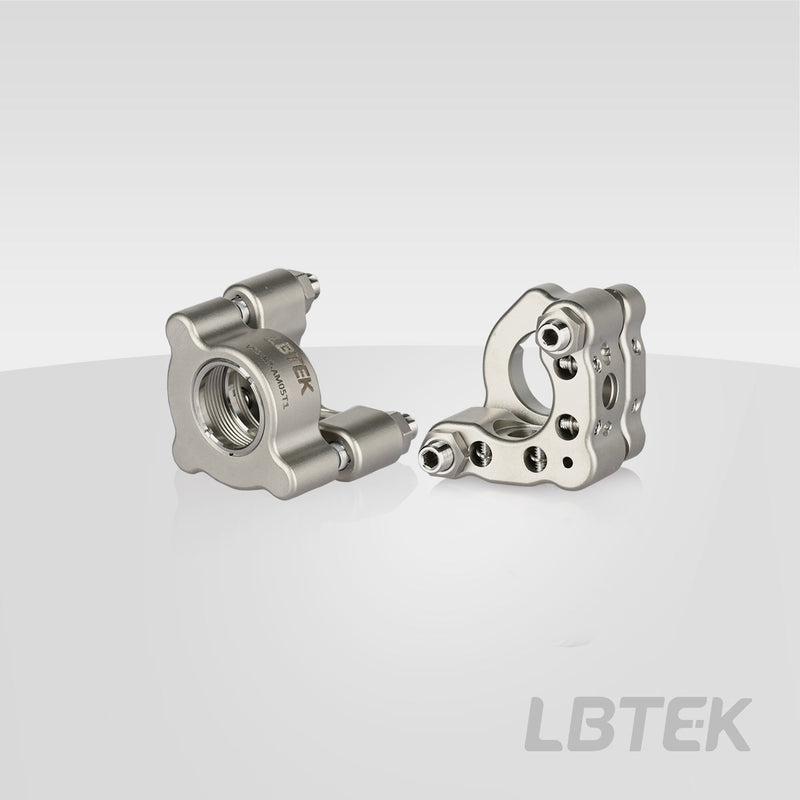

0.5-inch vacuum-compatible stainless steel optical mount VSS-MT-AM05T1

LBTEK 0.5-inch Vacuum Stainless Steel Mount for mounting 12.7 mm diameter optical components, with 2 knobless M4×0.2 precision adjusters. Two optical component fixing methods are available: VSS-MT-AM05S1 uses flexible spring plates and a set screw to secure the optical component, with a minimum component thickness of 2 mm; VSS-MT-AM05T1 uses a retaining ring to directly secure the optical component. The purchase of the mount includes 2 stainless steel retaining rings, and the maximum thickness for the retaining ring fixed optical component is 6.6 mm. The 2 knobless M4×0.2 precision adjusters allow for adjustment of the optical component's pitch and yaw using a hex key. The side of the optical mount features an M4 countersunk mounting hole. Purchasing the LBTEK vacuum-compatible mount includes vacuum-compatible hex socket ultra-thin head screws (with vent holes) and a hex key.
