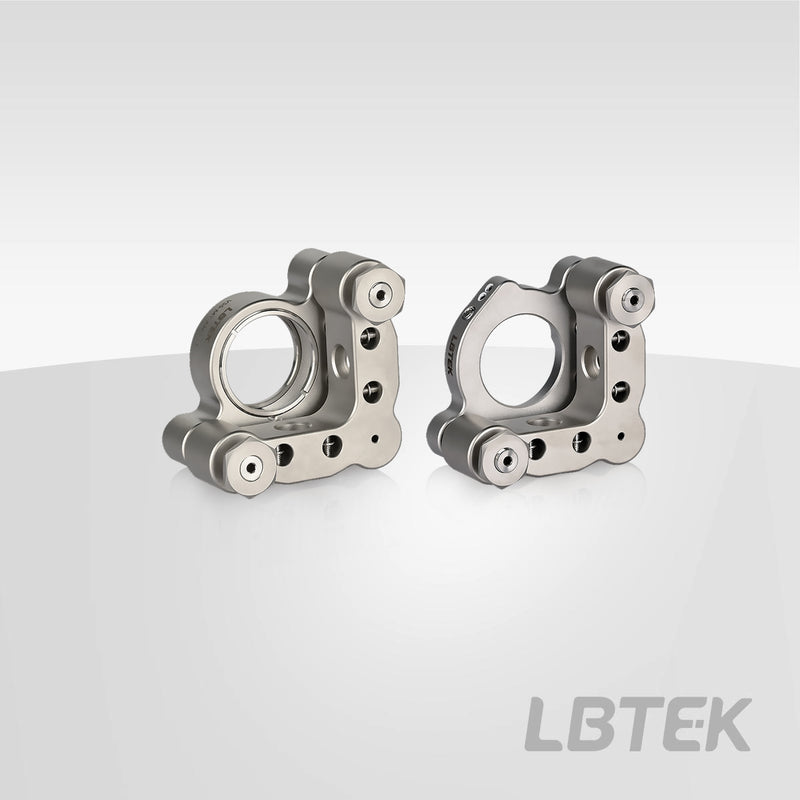

1-inch vacuum-compatible stainless steel optical mount VSS-MT-AM1S1

LBTEK 1-inch stainless steel lens mount for mounting optical components with a diameter of 25.4 mm. Two optical component fixation methods are available: the VSS-MT-AM1S uses flexible spring leaves and a set screw to secure the optical component, with a minimum component thickness of 2 mm; the VSS-MT-AM1T1 uses a retaining ring for direct fixation, and two stainless steel retaining rings are included with the purchase of the mount. The maximum thickness for components fixed with a retaining ring is 8 mm. Two M6×0.25 precision adjusters provide the mount with an angular adjustment range of ±4°. The knobs can be adjusted by hand or with a hex key. The optical mount has M4 countersunk mounting holes on the side. The purchase of an LBTEK stainless steel lens mount includes vacuum hex socket ultra-thin head screws (with vent holes) and a hex key.
