13 mm Stainless Steel Translation Stage LSS40-13C3
LSS40-13C3$1,834.76
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The 13 mm Stainless Steel Translation Stage LSS40-13C3 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Key specification: travel range: 13 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

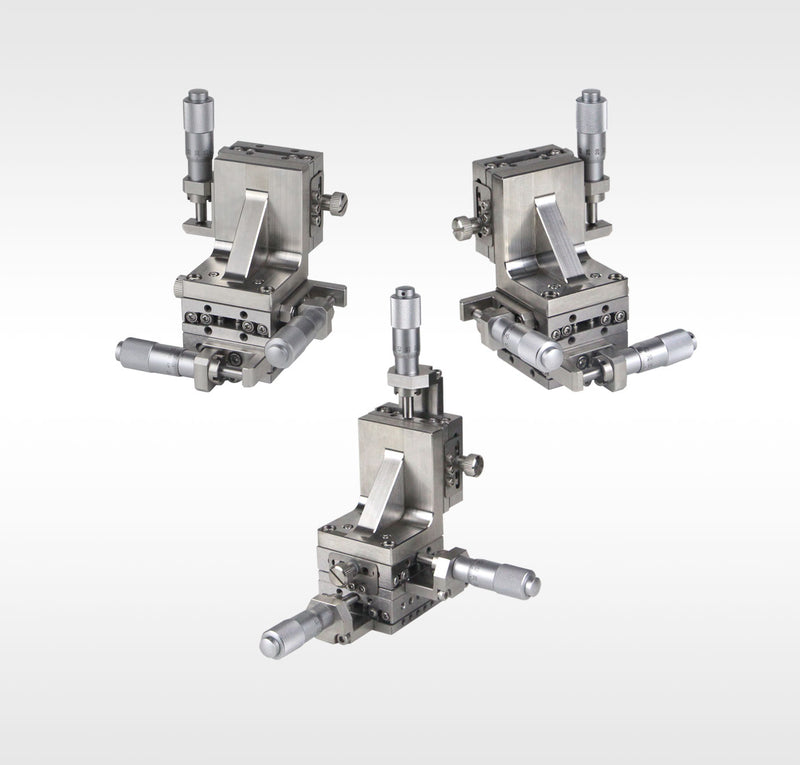

The three-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature three-axis drive with 3 micrometer drivers, providing 13 mm travel and 10 Ī¼m minimum graduation. The stage surface measures 40 mm Ć 40 mm with six M3 tapped holes (four at 32 mm pitch, two at 25 mm pitch), four M2 tapped holes at 20 mm pitch, and one central M6 tapped hole. Specific distribution patterns are detailed in the website drawings.
Key Features
- Three-axis drive with standard micrometer head;
- Stage size: 40 mm Ć 40 mm;
- Travel: 13 mm;
- Minimum graduation: 10 Ī¼m;
Application
The optical component is mounted on the XYZ-axis linear displacement stage.
| Material | 440C stainless steel |
| Tabletop size | 40 mmĆ40 mm |
| Number of axes | Three-axis |
| stroke | 13 mm |
| Micrometer head minimum scale | 10 Ī¼m |
| Drive position | End direct drive |
| Tabletop threaded hole specifications | M2/M3/M6 |
| Repeatability | ā¤15 Ī¼m |
| Load Capacity | 4 Kg |
| Weight | 1.2 Kg |
No CAD drawings available for this product.
Product Family: 13 mm Stainless Steel Translation Stage (11 variants)
