13 mm Stainless Steel Translation Stage LSS40-13R3

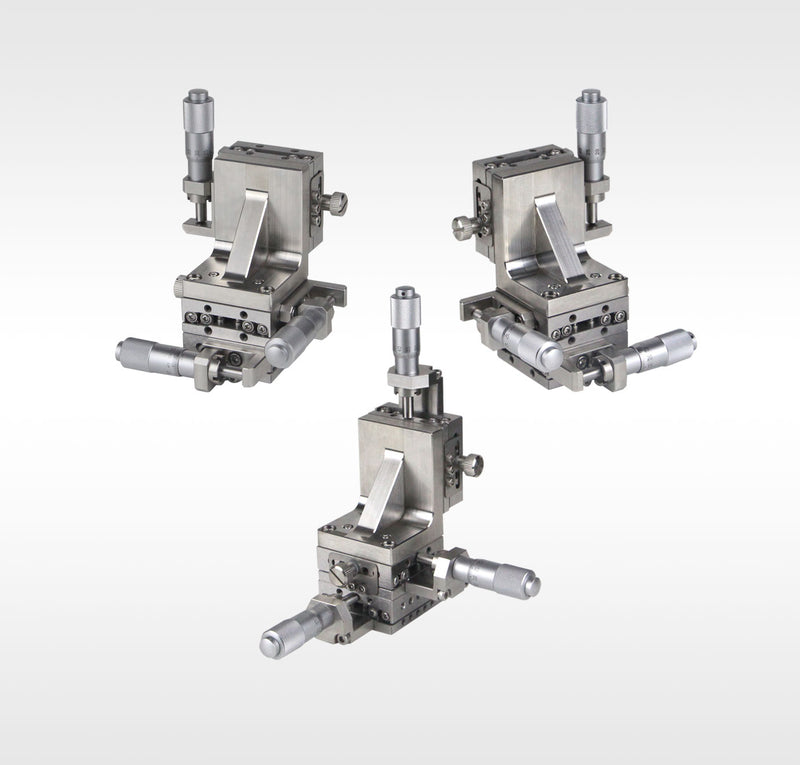

The three-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature three-axis drive with 3 micrometer drivers, providing 13 mm travel and 10 μm minimum graduation. The stage surface measures 40 mm × 40 mm with six M3 tapped holes (four at 32 mm pitch, two at 25 mm pitch), four M2 tapped holes at 20 mm pitch, and one central M6 tapped hole. Specific distribution patterns are detailed in the website drawings.
