13 mm XYZ-Axis Translation Stage with Differential Micrometer LS65-13C3P
LS65-13C3P$2,747.65
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The 13 mm Travel Manual Linear Translation Stage LS65-13C3P from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Key specification: travel range: 13 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

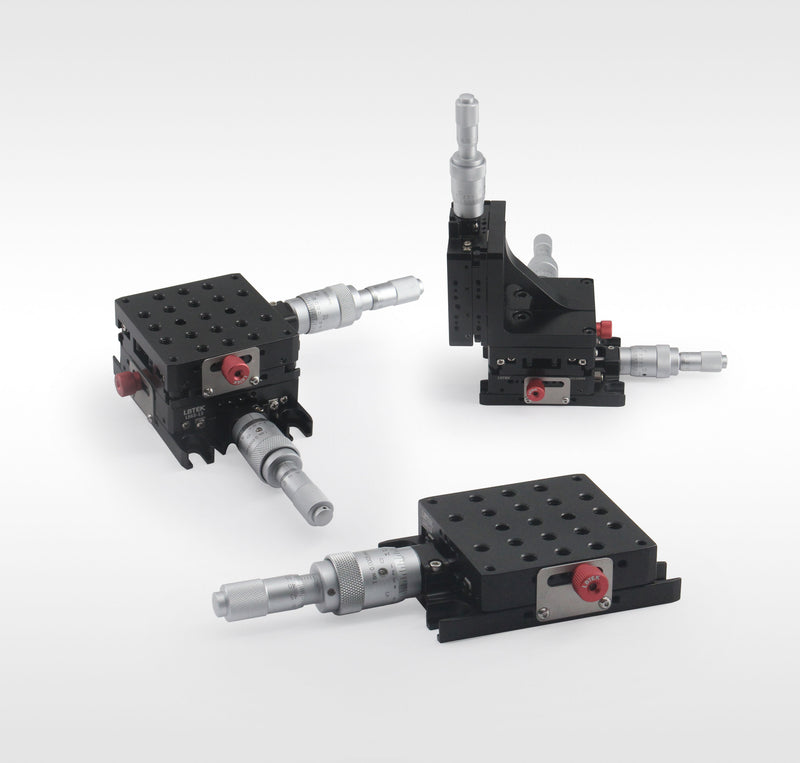

The XYZ-axis linear translation stage from LBTEK incorporates a differential micrometer head structure with end direct drive. It provides coarse adjustment of 13 mm travel (10 Ī¼m minimum graduation) and fine adjustment of 200 Ī¼m travel (0.5 Ī¼m minimum graduation). The 65 mm Ć 65 mm stage surface features M6 tapped holes. Four U-shaped slot positioning holes on the base enable stage securing with M6 screws.
Key Features
- Direct-drive linear stage with differential micrometer head;
- Stage size: 65Ć65 mm;
- Coarse adjustment: 13 mm travel, minimum graduation 10 Ī¼m;
- Fine adjustment: 200 Ī¼m travel, minimum graduation 0.5 Ī¼m;
Application
The optical component is mounted on an XYZ-axis linear translation stage.
| Material | 6061-T6 aluminum alloy |
| Installation Method | 25 mm |
| Tabletop size | 65 mm Ć 65 mm |
| Number of axes | Three-axis |
| Drive position | End direct drive |
| Main surface treatment | Black anodizing after grinding |
| Tabletop threaded hole specifications | M6 |
| Pitch | ā¤3 Ī¼m |
| Position Repeatability | ā¤15 Ī¼m |
| Mounting method | M6 |
| Applicable diameter | 40 kg |
| Locking Method | positioning pin Ć2 + screw Ć4 |
| Quantity | 10 um |
| Attribute 995 | Differential |
| Attribute 996 | 13 mm |
| Attribute 997 | 10 um |
| Attribute 998 | 200 um |
| Attribute 999 | 0.5 um |
| Load Capacity | 4 kg |
| Countersunk mounting hole dimensions | 30 um |
No CAD drawings available for this product.
