13 mm Travel Manual Linear Translation Stage LS65-13L3
LS65-13L3$1,759.65
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The 13 mm Travel Manual Linear Translation Stage LS65-13L3 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Key specification: travel range: 13 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

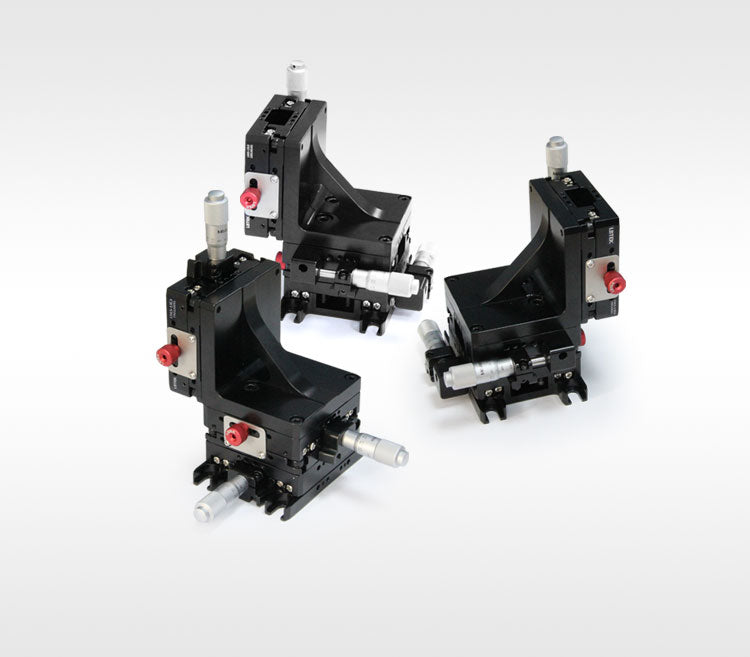

The XYZ-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature XYZ-axis drive with a micrometer driver, providing 13 mm travel and 10 Ī¼m minimum graduation. The stage surface measures 65 mm Ć 65 mm with M6 tapped holes. The stage base incorporates four U-shaped slot positioning holes for securing the stage via M6 screws.
Key Features
- XYZ-axis drive with standard micrometer head;
- Stage size: 65 mmĆ65 mm;
- Travel: 13 mm;
- Micrometer graduation: 10 um;
- Three drive types: end direct drive, left-side drive, and right-side drive;
Application
The optical component is mounted on an XYZ-axis linear translation stage.
| Material | 6061-T6 aluminum alloy |
| Installation Method | 25 mm |
| Tabletop size | 65 mm Ć 65 mm |
| Number of axes | Three-axis |
| stroke | 13 mm |
| Micrometer head minimum scale | 10 Ī¼m |
| Drive position | Left-side drive |
| Main surface treatment | Black anodizing after grinding |
| Tabletop threaded hole specifications | M6 |
| Pitch | ā¤3 Ī¼m |
| Mounting method | M6 |
| Load Capacity | 4 kg |
| Quantity | 10 um |
| Countersunk mounting hole dimensions | 30 um |
| Repeatability | ā¤15 Ī¼m |
No CAD drawings available for this product.
