13 mm Travel Manual Linear Translation Stage LS65-13R1
LS65-13R1$579.15
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The 13 mm Travel Manual Linear Translation Stage LS65-13R1 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Key specification: travel range: 13 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

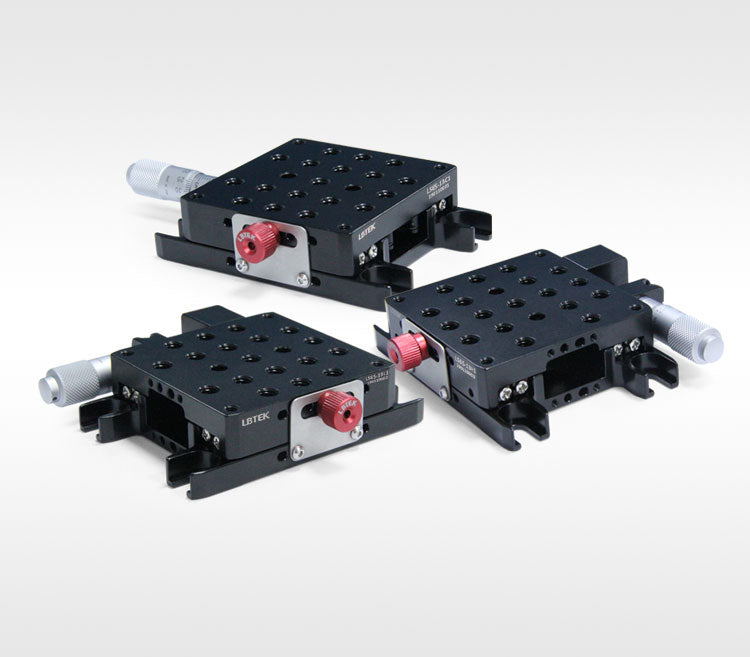

The single-axis linear translation stage from LBTEK is available in three drive types: end direct drive, left-side drive, and right-side drive. All types feature single-axis drive with a micrometer driver, providing 13Ā mm travel and 10 Ī¼m minimum graduation. The stage surface measures 65Ā mm Ć 65Ā mm with M6 tapped holes. The stage base incorporates four U-shaped slot positioning holes for securing the stage via M6 screws.
Key Features
- Single-axis drive with standard micrometer head;
- Stage size: 65 mm Ć 65 mm;
- Travel: 13 mm;
- Minimum graduation: 10 Ī¼m;
- Three drive types: end direct drive, left-side drive, and right-side drive;
Application
The optical component is mounted on a single-axis linear translation stage.
| Travel Range | 13 mm |
| Lead Time | In Stock |
No CAD drawings available for this product.
