65 mm Right-Angle Adapter Plate LS65RAP
LS65RAP$103.40
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The 13 mm Travel Manual Linear Translation Stage LS65RAP from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Key specification: travel range: 13 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

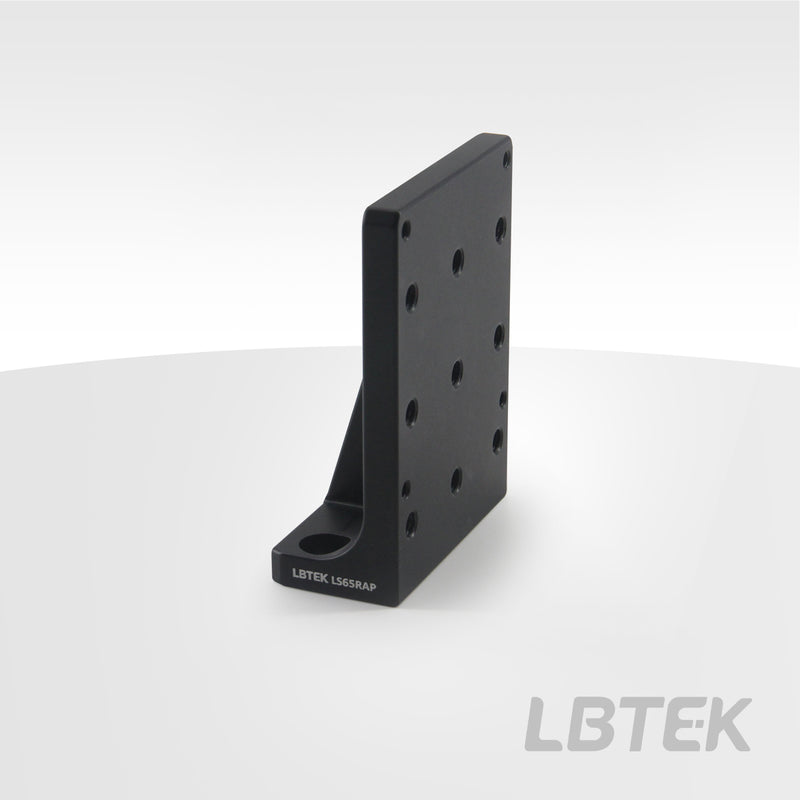

The right-angle adapter plate from LBTEK is made of aluminum alloy with high precision and rigidity, featuring M6 countersunk slots, M4 tapped holes, and M6 tapped holes for fixing and connecting mechanical components. It is compatible with the LBTEK LS65-13ĆĆ series linear stages. The purchase comes with two M6 socket head cap screws.
Key Features
- Main material: 6061-T6 aluminum alloy
- Black anodized
- M6 tapped hole Ć9, M4 tapped hole Ć4
Application
LS65RAP is compatible with the LS65-13ĆĆ series linear stage.
| Travel Range | 13 mm |
| Lead Time | In Stock |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
