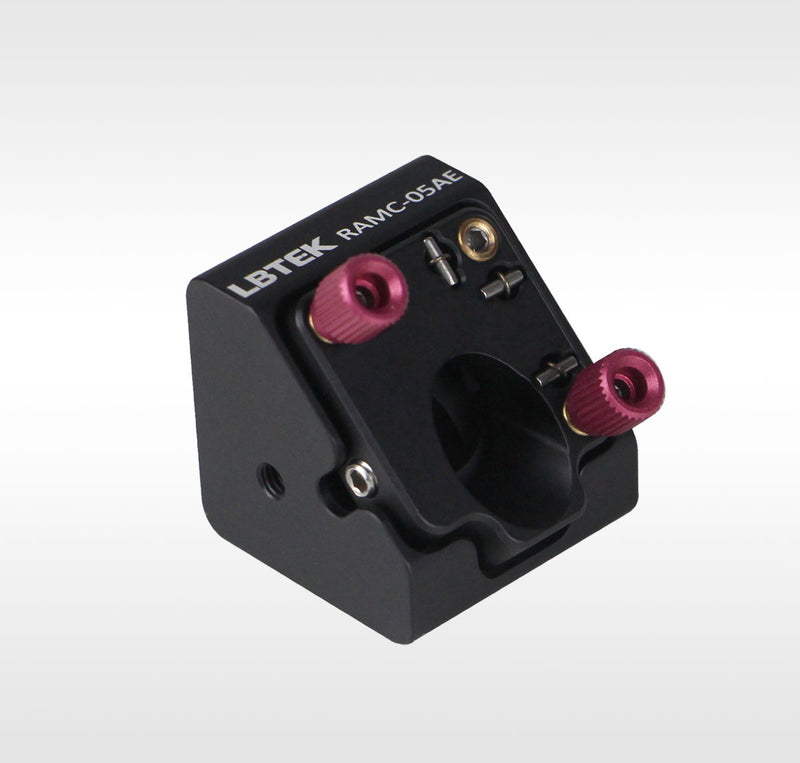

16 mm coaxial system 45-degree adjustment mounting bracket RAMC-05AE

The LBTEK 16 mm coaxial system right-angle mirror mount is designed for 45° installation of elliptical mirrors, making it suitable for building compact systems. Both the input and output end faces feature an SM05 threaded hole, compatible with SM05 lens tubes. The inclined surface is used for mounting elliptical optical components with a major axis of 18.0 mm, a minor axis of 12.7 mm, and a minimum thickness of 3 mm, secured by side thumb screws. The input and output end faces are perpendicular to each other. The inclined surface includes three adjusters, allowing for ±3° pitch and tilt angle adjustments, as well as ±1 mm linear displacement adjustments. Both the input and output end faces are equipped with threaded holes for mounting Ø4 mm coaxial posts, suitable for coaxial systems. One side features an M4 threaded hole, while the opposite side has an M3 threaded hole for mounting optical posts, enabling free-space applications.
