16 mm coaxial system 45-degree adjustment mounting bracket RAMC-05B

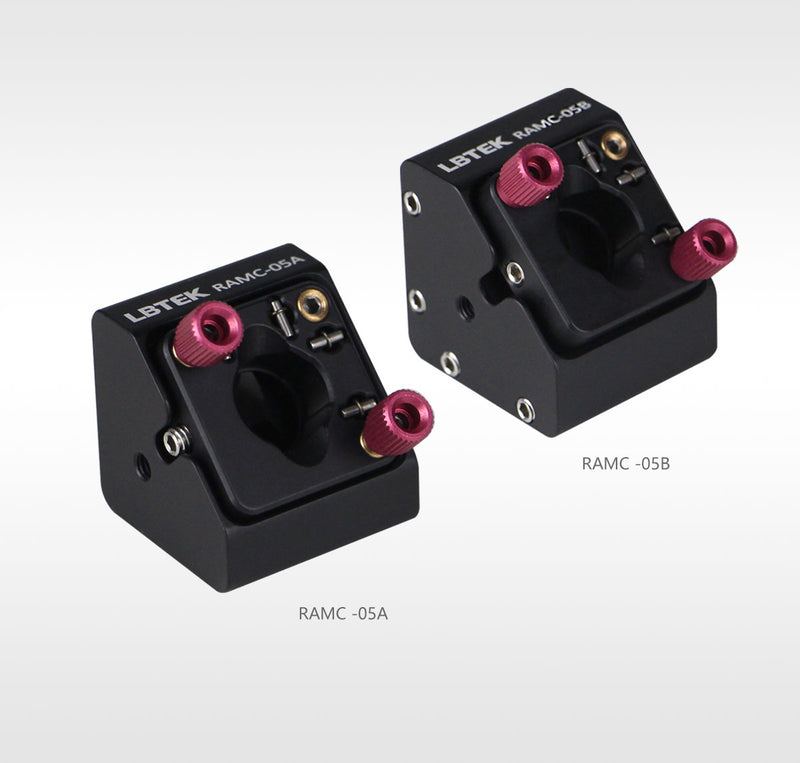

The LBTEK 16 mm coaxial system right-angle mirror mount is suitable for mounting mirrors at a 45° angle relative to the optical axis, making it ideal for building compact systems. Both the input and output end faces feature an SM05 threaded hole, compatible with SM05 lens tubes. The inclined surface is designed for mounting Ø12.7 mm optical components with a minimum thickness of 3 mm, secured by side-mounted thumb screws. The input and output end faces are perpendicular to each other. The inclined surface includes three adjusters, enabling ±4° pitch and tilt angle adjustments, as well as ±1 mm linear displacement adjustments. Two of the adjusters come with knobs, while the third has a hex socket at the end. All three adjusters can be fine-tuned using a 2 mm hex wrench. The input/output end faces can accommodate Ø4 mm coaxial posts for coaxial systems. One side features an M4 threaded hole, while the opposite side has an M3 threaded hole, allowing the mounting of optical posts for free-space applications.
