16 mm Coaxial System Mirror Mounts — Model AMC-05A
✔ In Stock — Ships Today

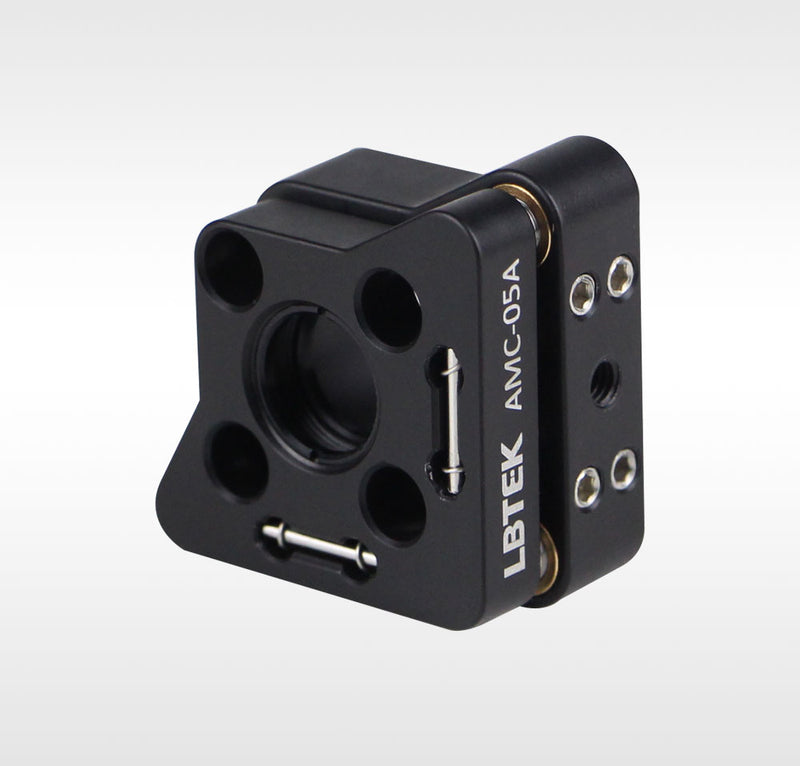

The LBTEK 16 mm coaxial system mirror mount uses dual retaining rings to secure optical components. Both sides of the mount are equipped with M4 threaded holes for connecting mounting rods. Four Ø4 mm through holes are provided for installing Ø4 mm rods in the 16 mm coaxial system. Tightening the side M4 set screws (adjusted with a 2.0 mm hex wrench) can lock the mount.
The mount can accommodate optical components with a diameter of 12.7 mm and a maximum thickness of 3.8 mm. It features three M5×0.25 precision adjusters, offering tilt and yaw angle adjustments within a range of ±2.5°, with 0.53° per revolution, as well as ±1 mm linear displacement adjustment. The adjusters do not come with knobs and can be adjusted using a 2.0 mm hex wrench.
Purchasing the LBTEK 16 mm coaxial system mirror mount includes one complimentary 2.0 mm hex wrench.
Key Features
- Dual snap ring for securing optical components, maximum thickness of installed optical component is 3.8 mm
- Linear movement range ±1 mm, tilt angle ±2.5°, adjustment precision 0.53°/rotation
- M4 threaded holes on both sides allow direct mounting of connecting rods
Application
Compatible with 16 mm coaxial system
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Maximum applicable thickness of optical components | 3.8 mm |
| Applicable optical element diameter | Ø12.7 mm |
| Optical component mounting method | Dual snap ring fixation |
| Attribute 2336 | M4 |
| Adjuster specifications/quantity | M5×0.25/3 pcs |
| Adjustment accuracy | 0.53°/revolution |
| Adjustable pitch/yaw angle range | ±2.5° |
| Breadboard size | ±1 mm |
| Clear Aperture | Ø11.4 mm |
| Maximum applicable thickness of optical components | SM05R/2 pcs |
| Hex Key Wrench | 2.0 mm Hex Key |
Product Family: 16 mm Coaxial System Mirror Mounts (1 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 16 mm Coaxial System Mirror Mounts AMC-05A Current |
AMC-05A
| — | — | — |
