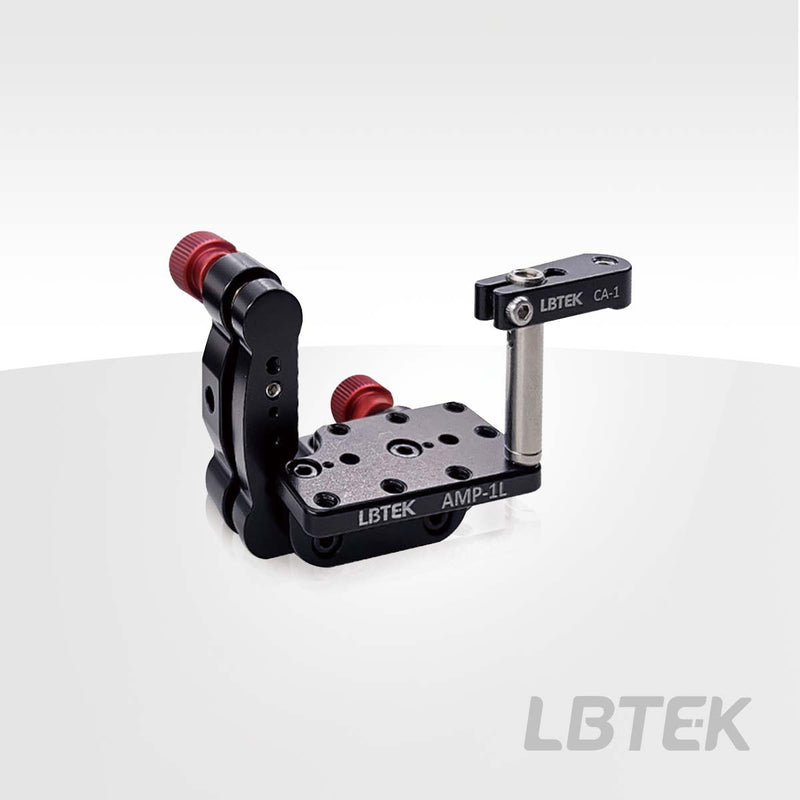

2D Adjustable Prism Mounts AMP-1L

The LBTEK 2D Adjustable Prism Mount is suitable for installing prisms, cubes, and other optical components. It comes with an adjustable clamping arm CA-1 (available for separate purchase), with a mounting platform size of 45 mm × 26 mm, capable of holding optical components with a maximum height of 26.2 mm. The mount base is equipped with two M4 countersunk holes for connecting to optical posts. Two M6x0.25 adjustment screws allow the mount to achieve ±4° pitch and yaw angles. The ends of the adjustment screws feature hex sockets, which can be adjusted using a 2 mm hex wrench.
