2D Adjustable Prism Mounts — Model AMP-2L
✔ In Stock — Ships Today

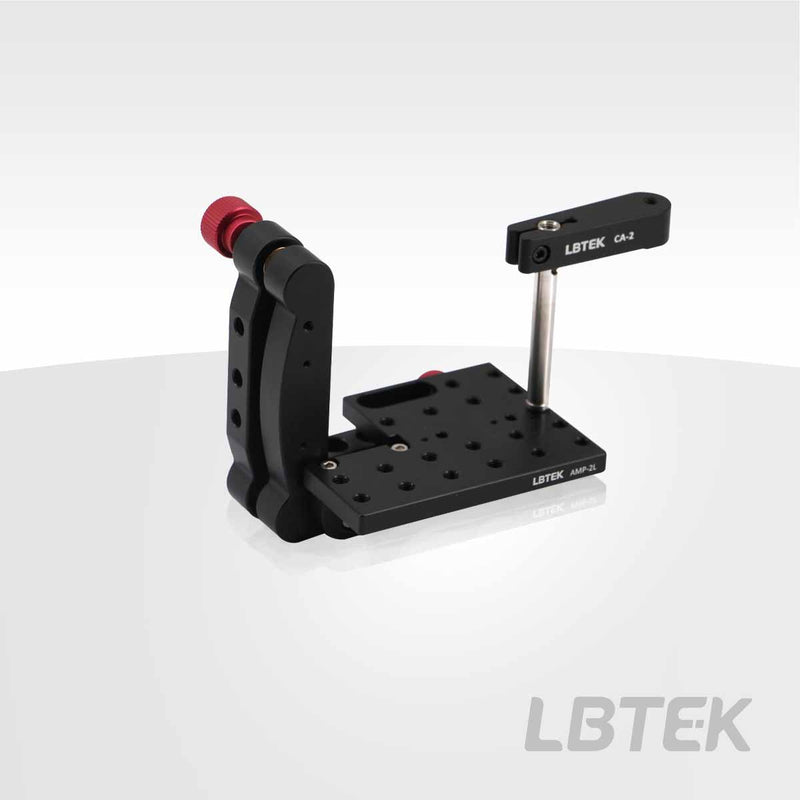

LBTEK 2D Adjustable Prism Mount is suitable for mounting prisms, cubes, and other optical components. It comes with an adjustable clamping arm CA-3 (available for separate purchase). The mounting platform measures 54.5 mm × 70 mm, and can hold optical components with a maximum length and width of 51 mm and a maximum height of 60 mm.
Key Features
- Material: 6061-T6 Aluminum Alloy
- ±3° pitch and yaw adjustment, adjustment precision 0.23°/rotation
- Includes adjustable pressure arm CA-3 (available for separate purchase), holds optical components up to 60 mm in height
- Left/right hand configuration optional
Application
Installation of Beam Splitter Cube
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Applicable optical components | Prism, cube, etc. |
| Maximum clamping height | 60 mm |
| Countersunk Hole Specification/Quantity | M4/6 pcs |
| Mounting Hole Pattern | M4/19 pcs |
| Adjustable pitch/yaw angle range | ±3° |
| Gasket thickness | 0.23°/revolution |
| Adjuster specifications/quantity | M6×0.25/2 pcs |
| Assembly method | Left-handed system |
Product Family: 2D Adjustable Prism Mounts (11 variants)
