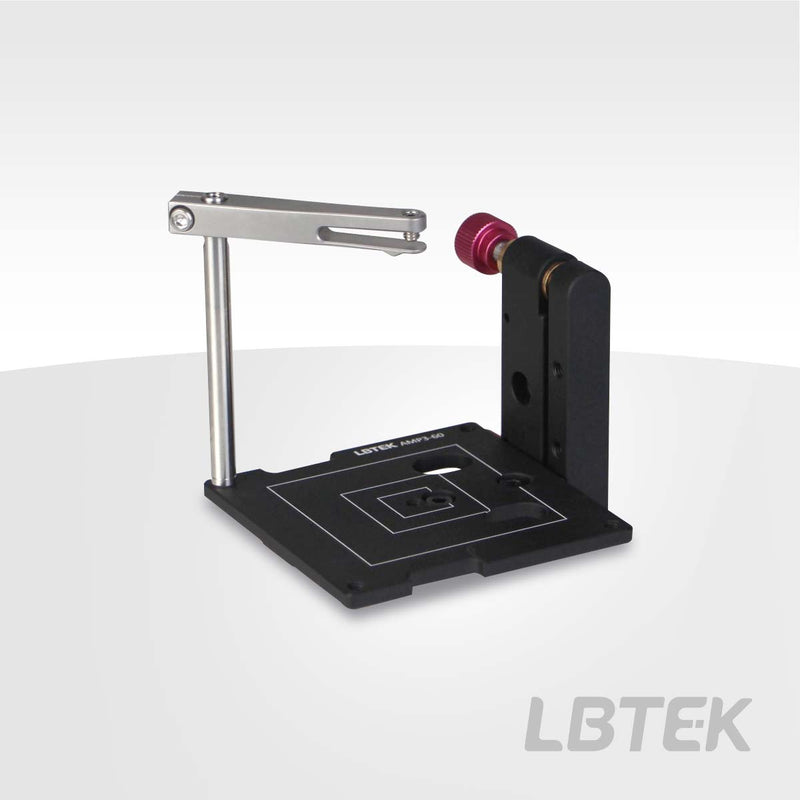

3D Adjustable Prism Mounts AMP3-60

The LBTEK 3D Adjustable Prism Mount is suitable for mounting optical components such as prisms and cubes. It features a flexible stainless steel clamping arm that securely holds optical components up to 60 mm in height. The mounting platform includes three sets of engraved lines corresponding to cube edge lengths of 12.5 mm, 25 mm, and 50 mm, allowing for rough alignment. It can accommodate cubes up to 60 mm × 60 mm × 60 mm in size, and the platform can be switched between left-handed and right-handed configurations as needed—simply remove the fixing screws and reinstall the platform on the threaded holes on the vertical side of the mount's front plate. The adjustment mount is equipped with a lever lock; tightening the set screw on the lever lock secures the threaded mechanism. The entire mount offers adjustable pitch and yaw angles of ±3°, and by adjusting all three threaded mechanisms simultaneously, a Z-axis displacement of ±3 mm can be achieved.
