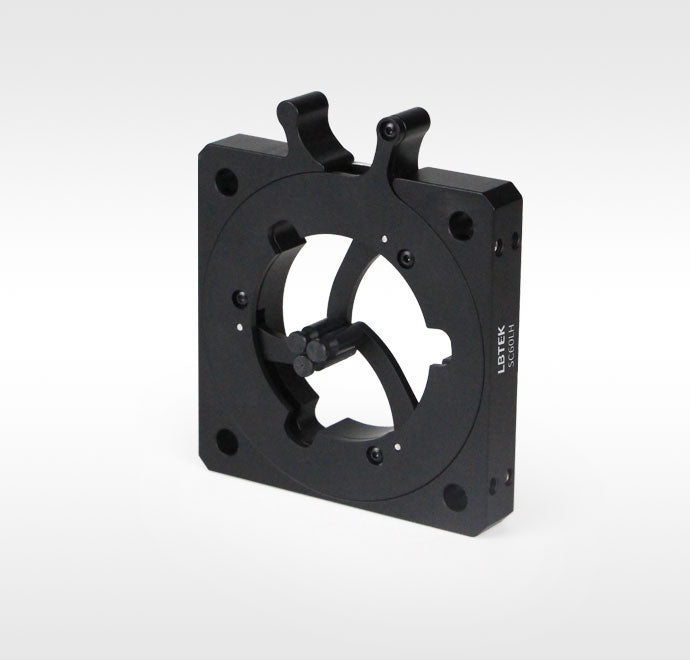

60 mm coaxial system self-centering lens mount SC60LH

The LBTEK 60 mm coaxial system self-centering lens mount features three spring-loaded clamping blocks that securely hold optical components within the range of Ø3.8 mm to Ø46.0 mm. The clamping blocks can be opened with one hand by operating the actuator tabs, and when the actuator tabs are released, the lens is firmly held between the mounting fingers. The nested ring design ensures the optical component is centered within the 60 mm coaxial system. This mount includes four through-holes for attaching our MOP series Ø6 mm coaxial posts, and eight M4 set screws for locking the mount in position. The base of the mount is equipped with an M4 threaded hole for direct attachment to our Ø12.7 mm posts.
