WaveQuanta

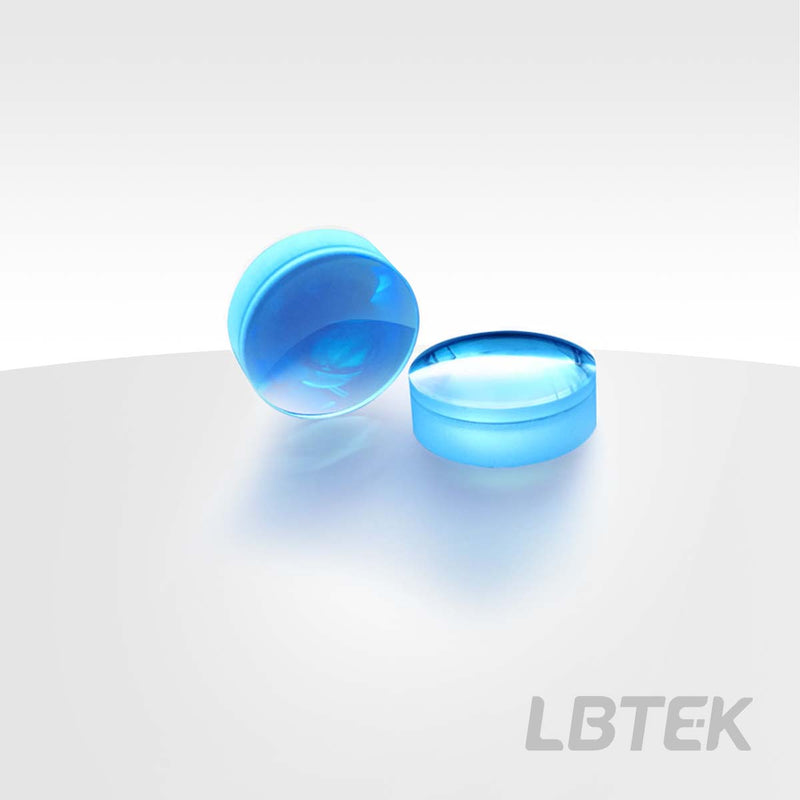

Achromatic Doublet Positive Lenses, AR Coating: 400 nm-700 nm, Unmounted AD424-A

AD424-A
$113.05
In Stock
Key Specifications
Wavelength 400.0nm
Diameter 25.4mm
LIDT 0.14J/cm²
Reflectance 0.5%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Achromatic Doublet Positive Lenses, AR Coating: 400 nm-700 nm, Unmounted — Model AD424-A

Operating wavelength 400 nm-700 nm, focal length 500.0 mm, Ø25.4 mm, substrate N-BK7/SF2.

Product Description

  • Small focal length shift across different wavelengths
  • High-precision design and manufacturing to meet diverse needs
  • Operating wavelength: 400 nm-700 nm (with anti-reflection coating)

The achromatic doublet lens significantly optimizes chromatic aberration and spherical aberration through composite optical materials, with optical performance far surpassing that of singlet lenses, meeting the demands of high-precision imaging and complex beam control. The LBTEK Achromatic Doublet Lenses employ a multi-wavelength optimized design, precisely matching three sets of core wavelengths for different anti-reflection coating systems: the wavelengths of 486.1 nm (F-line), 587.6 nm (d-line), and 656.3 nm (C-line) are selected for the 400-700 nm coating system; the wavelengths of 706.5 nm, 855 nm, and 1015 nm are selected for the 700-1100 nm coating system; the wavelengths of 1016 nm, 1330 nm, and 1550 nm are selected for the 1100-1650 nm coating system; the wavelengths of 488 nm, 707 nm, and 1064 nm are selected for the 400-1100 nm coating system. Multi-wavelength collaborative computation ensures that the lens's focal length shift within the design bandwidth is less than 0.5 mm, with stable performance across the entire spectrum. The LBTEK Achromatic Doublet Lenses are precisely manufactured and rigorously quality-controlled to guarantee the high-quality performance at a cost-effective price.

Achromatic Doublet Positive Lenses, AR Coating: 400 nm-700 nm, Unmounted

  • Operating wavelength: 400 nm-700 nm (anti-reflection coating)
  • Small focal length shift across different wavelengths
  • High-precision design and manufacturing to meet diverse needs

The optical performance of achromatic doublet lenses far superior to that of singlet lenses, making them suitable for demanding imaging and beam control requirements. All LBTEK Circular Lenses can be mounted in LBTEK standard lens tubes, fixed lens mounts, and various coaxial mounting plates. Customers can choose the optimal mounting solution for different application scenarios.

Material N-BK7/SF2
Diameter 25.4 mm
Diameter Tolerance +0.00/-0.10 mm
Clear Aperture 90% CA
Center Thickness 6 mm
Center Thickness Tolerance ±0.1 mm
Edge Thickness 5.6 mm
Center Thickness 337.3 mm
Radius of Curvature R2 -186.8 mm
Back Focal Distance -557.4 mm
Design Wavelength 486.1 nm，587.6 nm，656.3 nm
Operating Wavelength 400 nm-700 nm
Focal length 500.0 mm
Focal length tolerance ±1%
Back Focal Length 496.2 mm
Coating Anti-Reflection (AR) Coating
AR Coating Reflectance Ravg<0.5%a@Operating Wavelength（6°AOI，single-side）
Surface Quality (Scratch/Dig) 40/20
Local surface irregularity 0.5
Curved Aperture 3
Eccentricity ≤3 arcmin
Attribute 42 4.0 mm
Attribute 1041 2.0 mm
Damage Threshold 0.14J/cm2@515nm，290fs，100Hz，Ø10.72μm (100 Pulses)
Specification Sheet PDF — Download
3D Model (STL) STL — Download
Curve - Cemented Lens A
Curve - Cemented Lens A
