Active Liquid Crystal Grating LCCPG03-70-0808
LCCPG03-70-0808Contact for pricing
In Stock· Ships in 4.0 weeks
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Grating Angle Calculator
Compute diffraction angles and efficiency
SHG Phase Matching
Calculate phase matching angles and efficiency
View all 49 calculators →
Complete Your Setup
RoHS
REACH
Overview

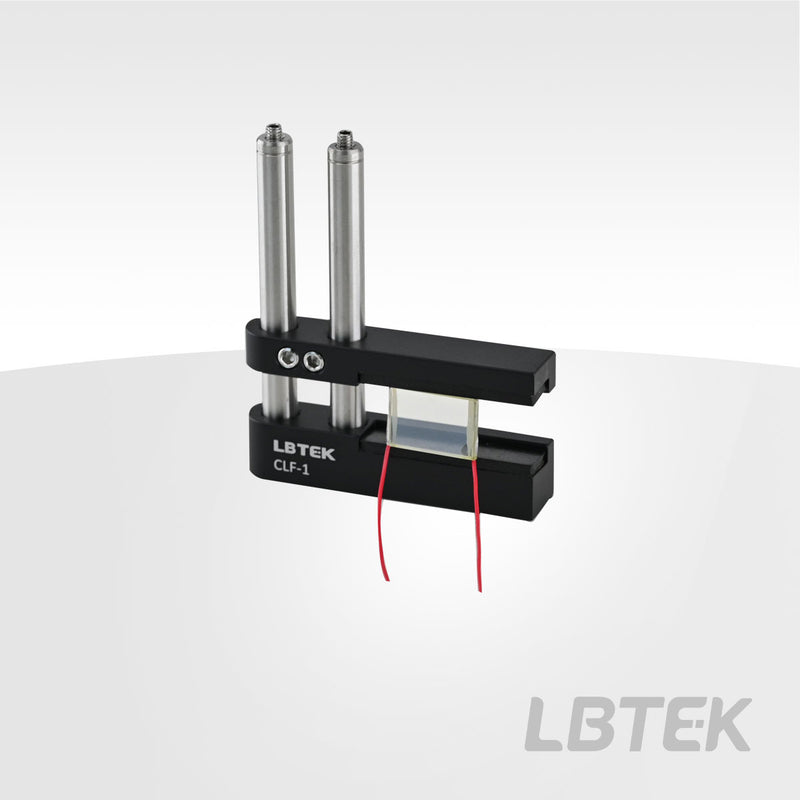

The active liquid crystal grating achieves flexible adjustment of diffraction efficiency under the control of an external AC voltage (DC voltage cannot be applied externally). Model LCCPG03-70-0808 is supplied with a 3μm box thickness and a 70μm grating period over a clear aperture of 8mm*8mm; the cell thickness and grating period can be customized flexibly.
Applications
- Electrically tunable diffractive beam steering
- Programmable beam splitting and fan-out generation
- Wavefront shaping and adaptive diffraction
- Dynamic phase-grating and structured-illumination experiments
- Reconfigurable diffractive optics
Construction & Performance
- Diffraction efficiency >90%
- Clear aperture 8mm*8mm; element size 10mm*15 mm
- Box thickness 3μm, tolerance ±10%, uniformity 5%
- Glass material K9/ITO; ITO sheet resistance 350-400Ω/square
- Flatness (@633nm) λ/4
- AR coating 500-1700nm optional
Storage & Handling
Drive the device with an external AC voltage only; DC voltage must not be applied.
| Diffraction efficiency | >90% |
| Clear Aperture | 8mm*8mm |
| Size | 10mm*15 mm |
| Glass material | K9/ITO |
| Box thickness | 3μm |
| Period | 70μm |
| Box thickness tolerance | ±10% |
| Box thickness uniformity | 5% |
| ITO sheet resistance | 350-400Ω/square |
| Flatness (@633nm) | λ/4 |
| AR Coating | 500-1700nm optional |
No documents available for this product.
No CAD drawings available for this product.
Curve 1

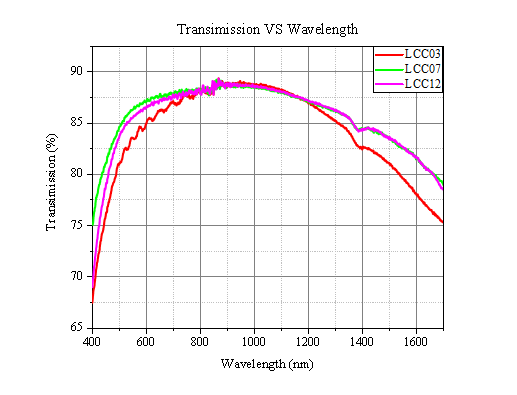

Curve 2
