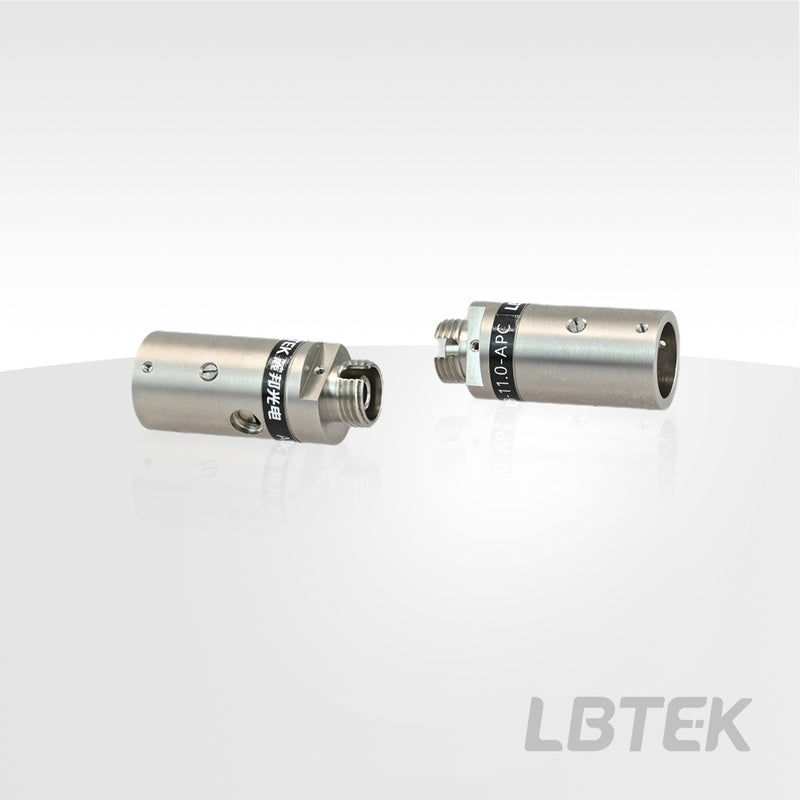

Adjustable Focus Collimator ADFCA-2.0-APC
ADFCA-2.0-APC$493.72
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
Adjustable focus collimators provided by LBTEK feature a compact structure that simplifies free-space laser-to-fiber coupling. With FC/APC connector to enhance return loss, the adjustable focus collimators currently offer three coating wavelength options: 350 nm-700 nm/600 nm-1050 nm/1050 nm-1700 nm, with selectable focal lengths of 2 mm/4.6 mm/7.5 mm/11.0 mm. Each adjustable focus collimator is coated with anti-reflection coating to reduce reflectivity. For detailed parameters, please refer to the parameter table or curve data. The purchase of collimators includes corresponding eccentric adjustment accessories. LBTEK provides various custom services. For specific custom requirements, please contact LBTEK Technical Support.
- Connector: FC/APC
- Focal Length: 2.0/4.6/7.5/11 mm
- Internal Lens: Aspherical Lens
| Lead Time | In Stock |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

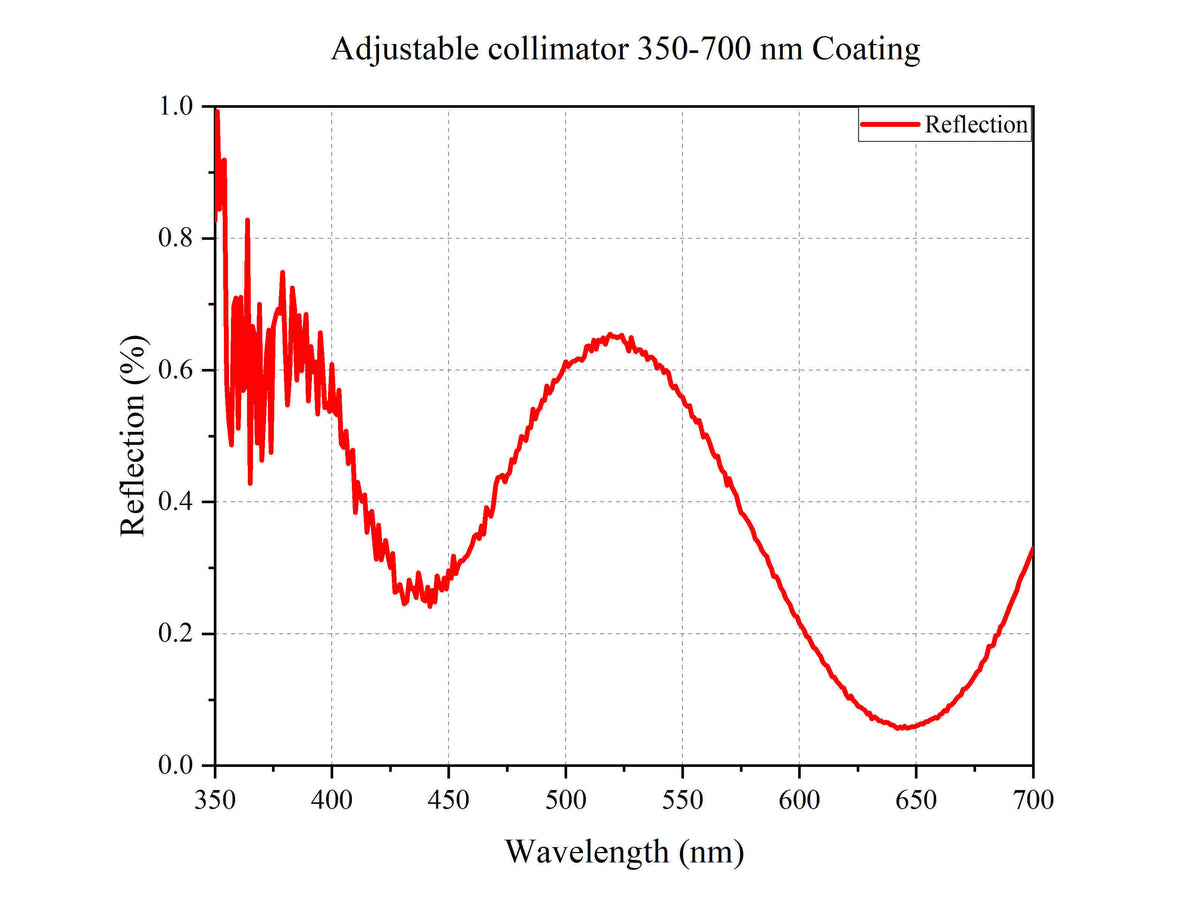

Curve - Adjustable collimator 350-700 Coating

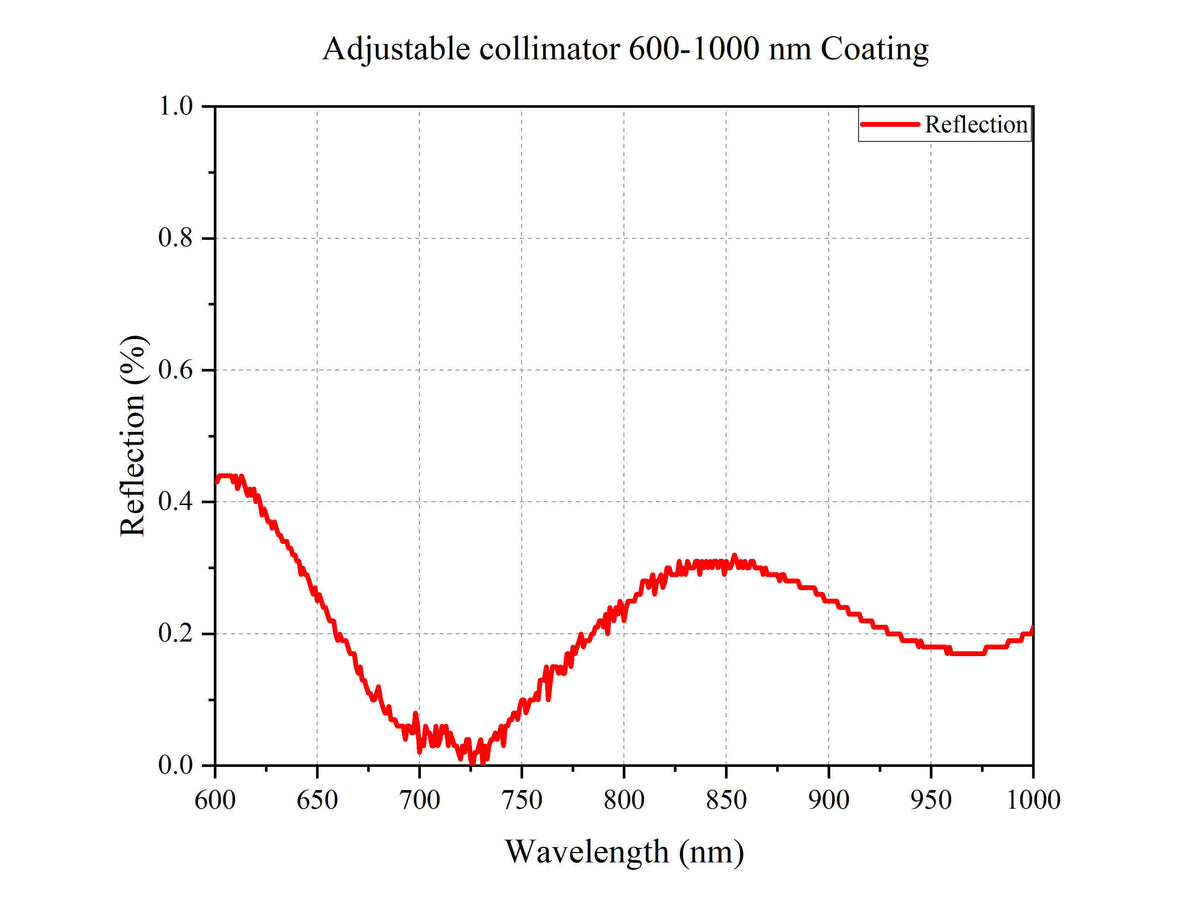

Curve - Adjustable collimator 600-1000 Coating

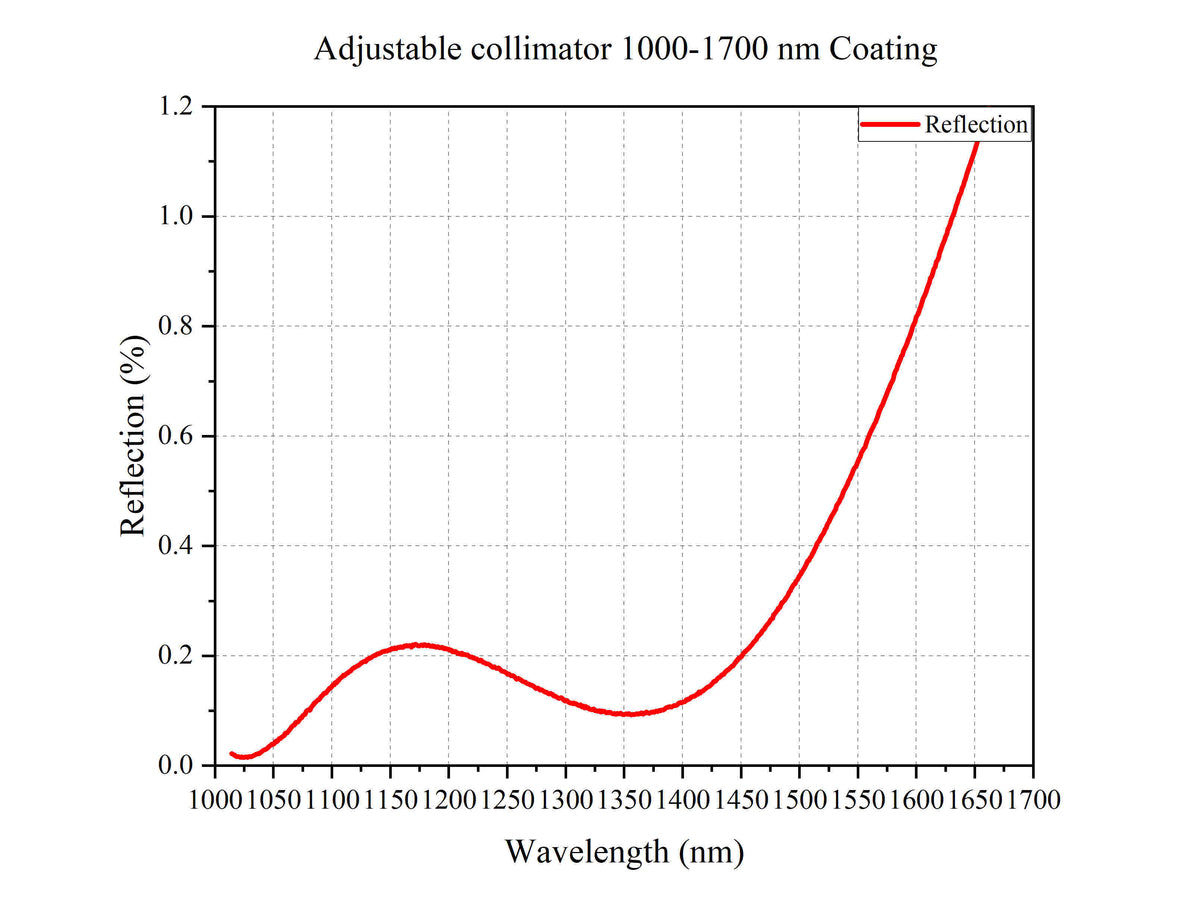

Curve - Adjustable collimator 1000-1700 Coating
