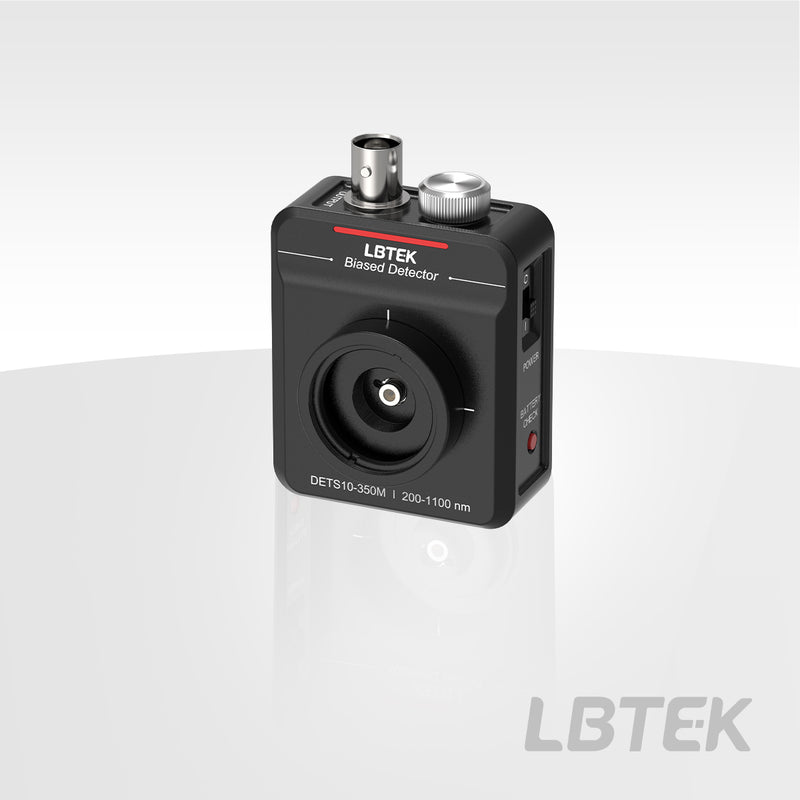

Biased Photodetectors DETS100-10M
DETS100-10M$196.11
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The LBTEK biased photodetector series covers three types: Si, InGaAs, and Ge. These detectors combine low noise, fast response, and no gain characteristics, making them suitable for various photodetection applications. They offer excellent performance, with a fastest rise time of only 1 ns, and can directly receive free-space input optical signals. The detector comes with a built-in A23 battery to provide reverse bias. If a power supply is preferred, the DET-12V power kit on this product page can be purchased separately. Using a BNC-BNC signal cable, the signal interface of the photodetector can be connected to an oscilloscope or other data acquisition devices. Additionally, the side of the detector features a red battery check button. Without removing the battery, a simple press allows a quick check to see if the battery needs replacement, greatly improving operational convenience and efficiency.
Note: The product includes an SM1 internally threaded sleeve, which can be removed for use.
Key Features
- Operating wavelength covers 200-2600nm
- Free-space optical input
- Fastest rise time 1ns
Application
Conventional Biased Photodetector Installation Method
| Detector Type | Silicon detector |
| Spectral response range | 320-1100 nm |
| rise time | 36 ns<sup>a</sup><sup>b</sup> |
| bandwidth | 10 MHz |
| photosensitive size | 10 mm |
| NEP (Noise Equivalent Power) | 2.4×10<sup>-14</sup> W/Hz<sup>1/2</sup> |
| Dark Current | 0.9 nA（Typ.）/10 nA（Max） |
| Junction Capacitance | 150 pF（Typ.） |
| Bias Voltage | 10 V |
| Output current | 0~10 mA |
| Output voltage | ~9 V（Hi-Z）;~170 mV（50 Ω） |
| Active Area Diameter | 3.3 mm |
| Operating Temperature | 10~40 ℃ |
| Operating Temperature | -20~70 ℃ |
| Output Voltage Range | Vout≤9 V（Hi-Z）Vout≤170 mA（50 Ω） |
| Size | 69.17 mm × 50 mm × 23.67 mm |
| Weight | 93±3 g |
| Input coupling method | Free space |
