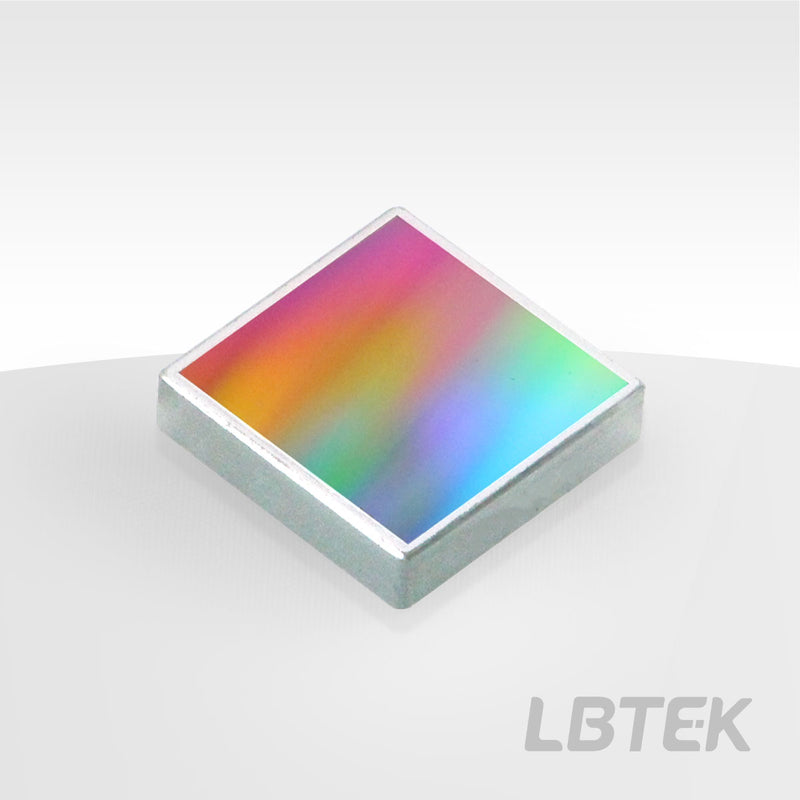

Blazed Gratings BG25-1200-1000

Overview

Blazed gratings transfer and concentrate light energy from the zeroth order into a chosen diffraction order through a sawtooth groove profile, serving as dispersive elements in spectroscopy and related fields. Model BG25-1200-1000 is a replica grating on a soda-lime glass substrate with a groove density of 1200 lines/mm, blazed at 1000 nm (blaze angle 36.86°) and an angular dispersion of 0.67 nm/mrad over a >84%CA clear aperture.

Applications

• Spectrometers and monochromators
• Spectral dispersion and wavelength selection
• Laser tuning and line narrowing
• Optical metrology and spectral analysis
• Teaching and laboratory diffraction experiments

Construction & Performance

• Material Soda-lime glass
• Size 25.0 mmx25.0 mm; thickness 6.0 mm
• Groove density 1200 lines/mm; blaze wavelength 1000 nm; blaze angle 36.86°
• Angular dispersion 0.67 nm/mrad; clear aperture >84%CA
• Dimensional tolerance ±0.1 mm; thickness tolerance ±0.1 mm
• Coating Aluminum foil (without protective layer)
• First-order diffraction efficiency 60%-80% at the blaze wavelength

Storage & Handling

The aluminium coating has no protective layer; handle the grating surface without contact and store it in a dry, dust-free environment.
