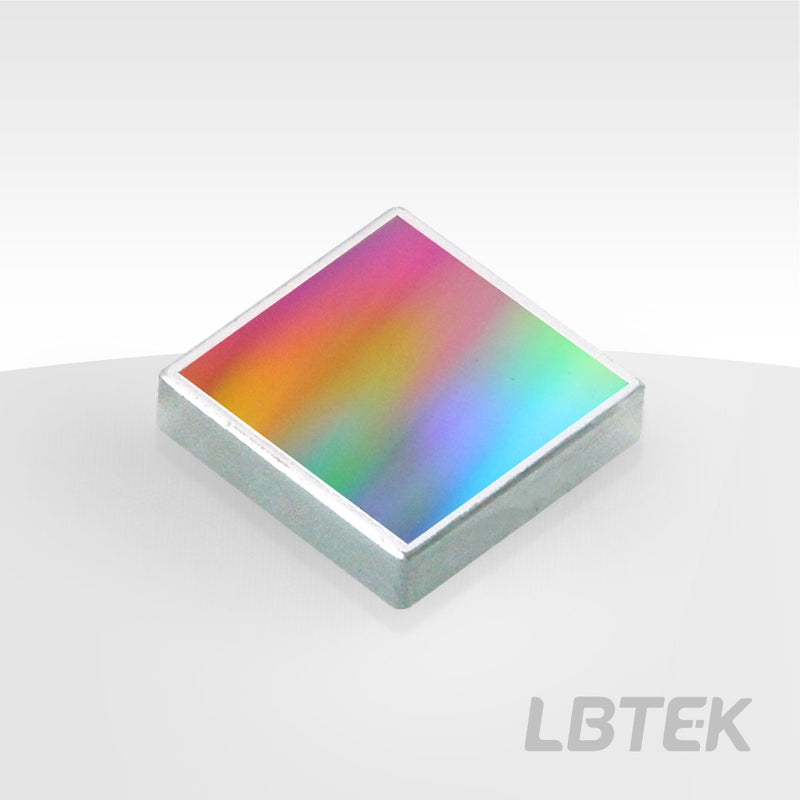

Blazed Gratings BG25-600-500

Blazed gratings achieve the transfer and concentration of light energy from the zeroth order to a specific spectral order through groove etching, serving as dispersive elements widely used in spectroscopy-related fields.

LBTek blazed gratings are replica gratings with first-order diffraction efficiency exceeding 60% at their blaze wavelength. The series features aluminum film coating, with options selectable based on blaze wavelength, blaze angle, or groove density.

Key Features

• Blaze Wavelength options: 300 nm, 500 nm, 750 nm, 1000 nm, 1250 nm, 1500 nm
• Diffraction efficiency at blaze wavelength: 60%-80%
• Grating surface coated with aluminum film (without protective layer)
