Broadband Polarizing Beamsplitter Cubes, AR Coating: 900 nm-1300 nm MPBS633

MPBS633
$391.90
In Stock
Request Quote

Design Tools

LIDT Calculator Verify damage threshold for your laser parameters
View all 49 calculators →
RoHS REACH

Broadband Polarizing Beamsplitter Cubes, AR Coating: 900 nm-1300 nm — Model MPBS633

N-SF1, optimized for 900 nm-1300 nm, cube size 20.0 mm×20.0 mm×20.0 mm, extinction ratio >1000:1.

Overview

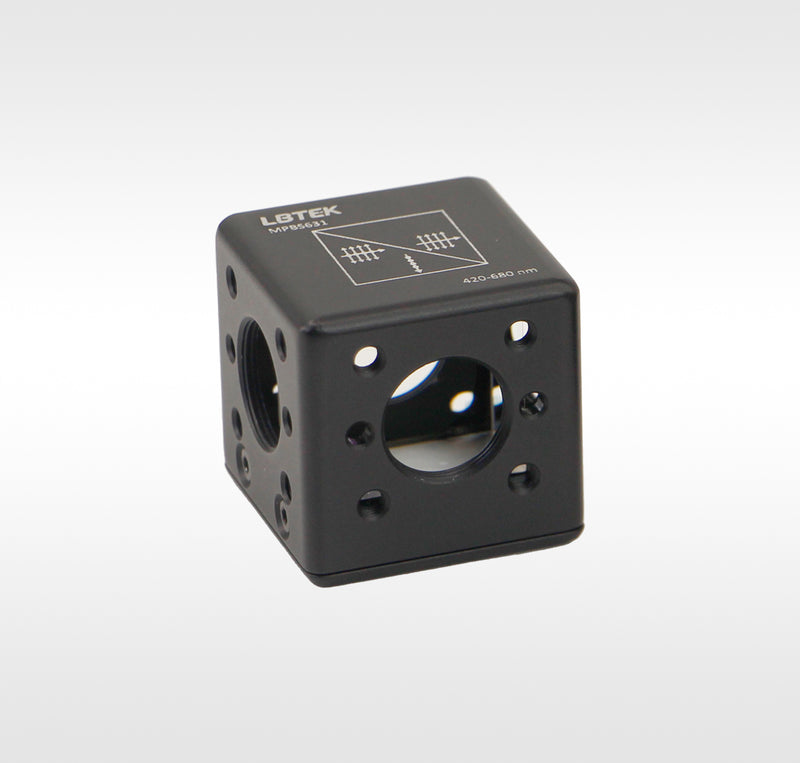

The 20 mm broadband polarizing beamsplitter cube (AR coating: 900nm-1300nm) is mounted inside a cubic housing compatible with 16 mm cage systems. A scribe line on the top face marks the beam direction. M3 threaded holes on the side allow connection to 16 mm cage systems via a Ø4 mm cage-compatible mounting post. Four SM05 internal-thread ports accept 12.7 mm lens tubes. M4 threaded holes at the base support post mounting.

Key Features

  • Extinction ratio (Tp:Ts) >1000:1
  • Spectroscopic film: Tp>90%, Rs,avg>95%
  • AR coating: Ravg<0.5% (6° incident surface, single side)
  • Optical coatings: AR Coating, Beamsplitter Coating
  • Transmitted wavefront error: λ/4
  • Surface quality: 40/20
  • Beam deviation: Transmission: 0°±5 arcmin; Reflection: 90°±10 arcmin
  • Substrate: N-SF1

Applications

  • Laser polarization control and beam separation
  • Interferometry and polarimetry setups
  • Optical isolators and magneto-optic modulators
  • Polarization-sensitive imaging and spectroscopy
  • High-contrast laser systems requiring stable extinction
Optical component materialN-SF1
Size20.0 mm×20.0 mm×20.0 mm
Dimensional tolerance±0.25 mm
Clear Aperture>80% CA
Operating Wavelength900 nm-1300 nm
CoatingAR Coating, Beamsplitter Coating
AR CoatingRavg<0.5% (6° incident surface, single side)
Spectroscopic filmTp>90%, Rs,avg>95%
Extinction ratio (Tp:Ts)>1000:1
Surface finish (scratches/pits)40/20
Transmitted Wavefront Error (TWE) (@633 nm)λ/4
Surface Flatness (@633 nm)λ/4
Exit angleTransmission: 0°±5 arcmin; Reflection: 90°±10 arcmin
Mechanical housing dimensions30.0 mm (L) × 30.0 mm (W) × 30.0 mm (H)
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

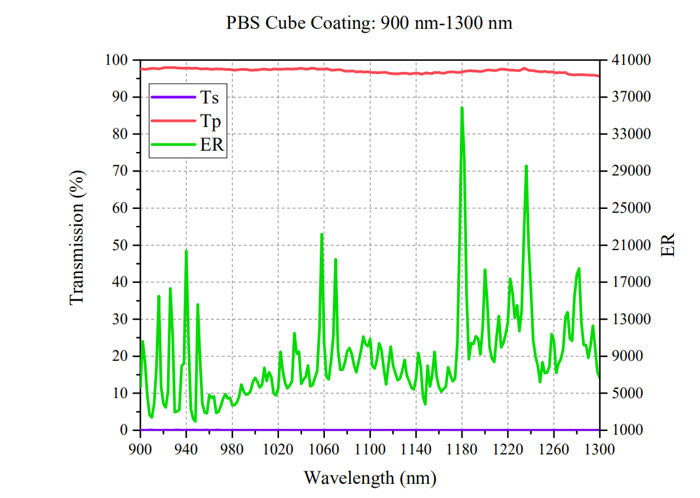

Curve 1
Curve 1

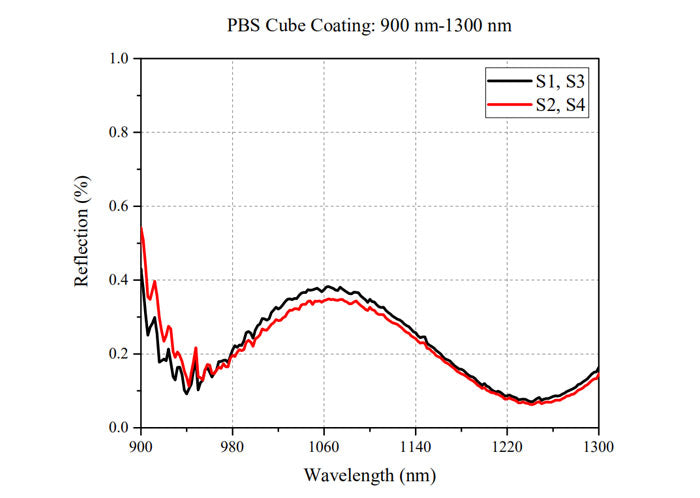

Curve 2
Curve 2

Product Family: Broadband Polarizing Beamsplitter Cubes, AR Coating: 900 nm-1300 nm (8 variants)

Product ▴▾ SKU Size ▴▾ Operating Wavelength ▴▾ Extinction ratio (Tp:Ts) ▴▾
