What wavelength range does Damage-Resistant 890-2940nm Femtosecond Mirror 40-50° support?

Damage-Resistant 890-2940nm Femtosecond Mirror 40-50° operates at a center wavelength of 1915.0 nm. The supported wavelength range is 1064.0–1064.0 nm.

What is the damage threshold of Damage-Resistant 890-2940nm Femtosecond Mirror 40-50°?

Damage-Resistant 890-2940nm Femtosecond Mirror 40-50° has a laser-induced damage threshold (LIDT) of 0.2 J/cm² at @100 fs, 1 kHz.

What are the physical dimensions of Damage-Resistant 890-2940nm Femtosecond Mirror 40-50°?

Damage-Resistant 890-2940nm Femtosecond Mirror 40-50° dimensions: Diameter: 25.4 mm. Thickness: 6.35 mm.

What coating does Damage-Resistant 890-2940nm Femtosecond Mirror 40-50° have?

Damage-Resistant 890-2940nm Femtosecond Mirror 40-50° features a IBS Coating coating, applied via IBS, optimized for S1:HRa>99.9%@1064nm / S2:Uncoated.

What substrate material is Damage-Resistant 890-2940nm Femtosecond Mirror 40-50° made from?

Damage-Resistant 890-2940nm Femtosecond Mirror 40-50° is manufactured using UVFS substrate.

Is Damage-Resistant 890-2940nm Femtosecond Mirror 40-50° available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

OPTOMAN

Damage-Resistant 890-2940nm Femtosecond Mirror 40-50°

Name: Damage-Resistant 890-2940nm Femtosecond Mirror 40-50°
Brand: OPTOMAN
SKU: PP-UVFS-25.4-6.35-ULLM243
Price: 209.19 SGD
Availability: InStock

PP-UVFS-25.4-6.35-ULLM243

$209.19

In Stock

Key Specifications

Wavelength 1915.0nm

Diameter 25.4mm

LIDT 0.2J/cm²

Request Quote

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters

View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Nonlinear Crystals Optomechanics

RoHS REACH

Overview

Damage-Resistant 890-2940nm Femtosecond Mirror 40-50°

663615.txt

Applications

Ultrafast laser systems, femtosecond pulse compression, dispersion management for amplifier chains.

Construction & Performance

See specification table for detailed parameters.

Storage & Handling

Store in a clean, dry environment at 20-25 C, 40-60 percent RH. Handle with lint-free gloves. Avoid mechanical contact with optical surfaces.

Center Wavelength	1915.0 nm
Wavelength Range	1064.0 – 1064.0 nm
Angle of Incidence	40 - 50°
Damage Threshold Condition	@100 fs, 1 kHz
Diameter	25.4 mm (+0/-0.1 mm)
Thickness	6.35 mm (+0/-0.1 mm)
Clear Aperture	≥20mm
Substrate	UVFS
Surface Flatness	<λ/4 @ 633 nm per 17 mm dia
Surface Quality	S1: 20-10 S-D per CA as per MIL \| S2: Polished
Parallelism	<5 arcmin
Coating Type	IBS Coating
Coating Specification	S1:HRa>99.9% @ 1064 nm / S2:Uncoated

No documents available for this product.

No CAD drawings available for this product.

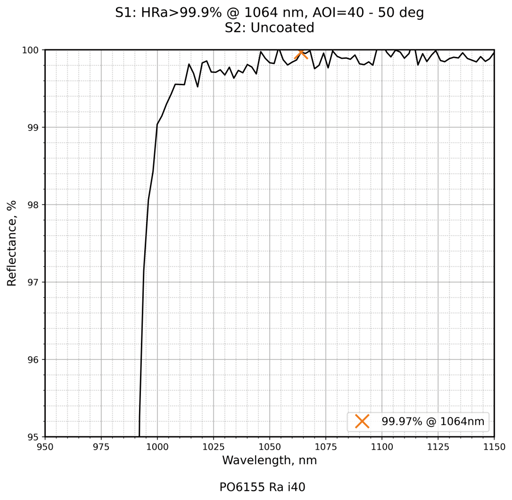

Damage-Resistant 890-2940nm Femtosecond Mirror 40-50° reflectance curve
