What wavelength range does Damage-Resistant 890-2940nm Femtosecond Mirror 45° support?

Damage-Resistant 890-2940nm Femtosecond Mirror 45° operates at a center wavelength of 1915.0 nm. The supported wavelength range is 910.0–930.0 nm.

What is the damage threshold of Damage-Resistant 890-2940nm Femtosecond Mirror 45°?

Damage-Resistant 890-2940nm Femtosecond Mirror 45° has a laser-induced damage threshold (LIDT) of 0.2 J/cm² at @100 fs, 1 kHz.

What are the physical dimensions of Damage-Resistant 890-2940nm Femtosecond Mirror 45°?

Damage-Resistant 890-2940nm Femtosecond Mirror 45° dimensions: Diameter: 12.7 mm. Thickness: 3.0 mm.

What coating does Damage-Resistant 890-2940nm Femtosecond Mirror 45° have?

Damage-Resistant 890-2940nm Femtosecond Mirror 45° features a IBS Coating coating, applied via IBS, optimized for S1:HRsp>99.9%@910-930nm / S2:Uncoated.

What substrate material is Damage-Resistant 890-2940nm Femtosecond Mirror 45° made from?

Damage-Resistant 890-2940nm Femtosecond Mirror 45° is manufactured using UVFS substrate.

Is Damage-Resistant 890-2940nm Femtosecond Mirror 45° available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

OPTOMAN

Damage-Resistant 890-2940nm Femtosecond Mirror 45°

Name: Damage-Resistant 890-2940nm Femtosecond Mirror 45°
Brand: OPTOMAN
SKU: PP-UVFS-12.7-3.0-LLM132
Price: 154.67 SGD
Availability: InStock

PP-UVFS-12.7-3.0-LLM132

$154.67

In Stock

Key Specifications

Wavelength 1915.0nm

Diameter 12.7mm

LIDT 0.2J/cm²

Request Quote

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters

View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Nonlinear Crystals Optomechanics

RoHS REACH

Overview

Damage-Resistant 890-2940nm Femtosecond Mirror 45°

663610.txt

Applications

Ultrafast laser systems, femtosecond pulse compression, dispersion management for amplifier chains.

Construction & Performance

See specification table for detailed parameters.

Storage & Handling

Store in a clean, dry environment at 20-25 C, 40-60 percent RH. Handle with lint-free gloves. Avoid mechanical contact with optical surfaces.

Center Wavelength	1915.0 nm
Wavelength Range	910.0 – 930.0 nm
Angle of Incidence	45°
GDD	\|GDD Rs\|<10 fs^2, \|GDD Rp\|<20 fs^2 @ 910-930 nm
Damage Threshold Condition	@100 fs, 1 kHz
Diameter	12.7 mm (+0/-0.1 mm)
Thickness	3.0 mm (+0/-0.1 mm)
Clear Aperture	>80%
Substrate	UVFS
Surface Flatness	λ/8 @ 633 nm over 5 mm aperture
Surface Quality	S1: 20-10 S-D over CA (as per MIL-PRF-138030B) \| S2: Inspection polished
Parallelism	<5 arcmin
Coating Type	IBS Coating
Coating Specification	S1:HRsp>99.9% @ 910-930 nm / S2:Uncoated

No documents available for this product.

No CAD drawings available for this product.

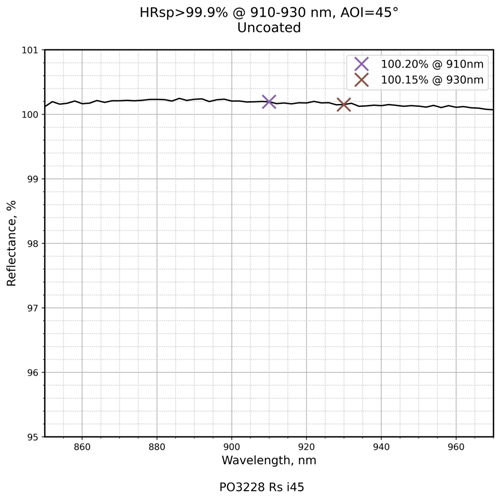

Damage-Resistant 890-2940nm Femtosecond Mirror 45° reflectance curve
