What wavelength range does Faraday Rotators FR633-3-1.5W support?

Faraday Rotators FR633-3-1.5W operates at a center wavelength of 633.0 nm.

What documentation is available for Faraday Rotators FR633-3-1.5W?

The following documents are available for download on the Faraday Rotators FR633-3-1.5W product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is Faraday Rotators FR633-3-1.5W available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta. Typical lead time is 0.0 week.Contact our sales team for current availability and volume pricing.

WaveQuanta

Faraday Rotators FR633-3-1.5W

Name: Faraday Rotators FR633-3-1.5W
Brand: WaveQuanta
SKU: FR633-3-1.5W
Price: 1156.83 SGD
Availability: InStock

FR633-3-1.5W

$1,156.83

In Stock

Key Specifications

Wavelength 633.0nm

Request Quote

Design Tools

Wavelength ↔ Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Faraday Rotators — Model FR633-3-1.5W

Magneto-optical Faraday rotator, center wavelength 633 nm, Ø3.0 mm clear aperture, average power 1.5 W, rotation angle 45°±0.5°ᵃ.

Overview

LBTEK Faraday Rotators can be used to rotate the polarization plane of light beams and are widely applied in various laser systems, such as erbium-doped fiber amplifiers, optical switches, and optical modulators. They effectively prevent optical damage or system instability caused by harmful reflected light. LBTEK offers customization services for parameters including the center wavelength, clear aperture, and average power of the rotators. For any customization needs, please contact LBTEK Technical Support.

Key Features

45° polarization rotation of incident light
High Verdet constant magneto-optical crystal with low insertion loss
Back-reflected light block in the optical path with a polarizer

Center wavelength	633 nm
Clear Aperture	Ø3.0 mm
Operating Wavelength	633 nm±10 nm
Transmittance	98%
Surface treatment	Black anodized
Average Power	1.5 W
Damage threshold	1 J/cm²@532 nm, 10 ns, 10 Hz
Crystal material	TGG (Terbium-Gallium-Garnet)
Shell and Magnetic Ring Material	6061-T6 aluminum alloy, neodymium iron boron (NdFeB)
Crystal Support	Brass
Reliability test temperature range	-20°C-70°C
Recommended operating temperature	10°C-30°C
Rotation angle	45°±0.5°ᵃ

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

Curve - FR633-3-1.5W

Product Family: Faraday Rotators (15 variants)

Product ▴▾	SKU	Clear Aperture ▴▾	Operating Wavelength ▴▾	Center wavelength ▴▾

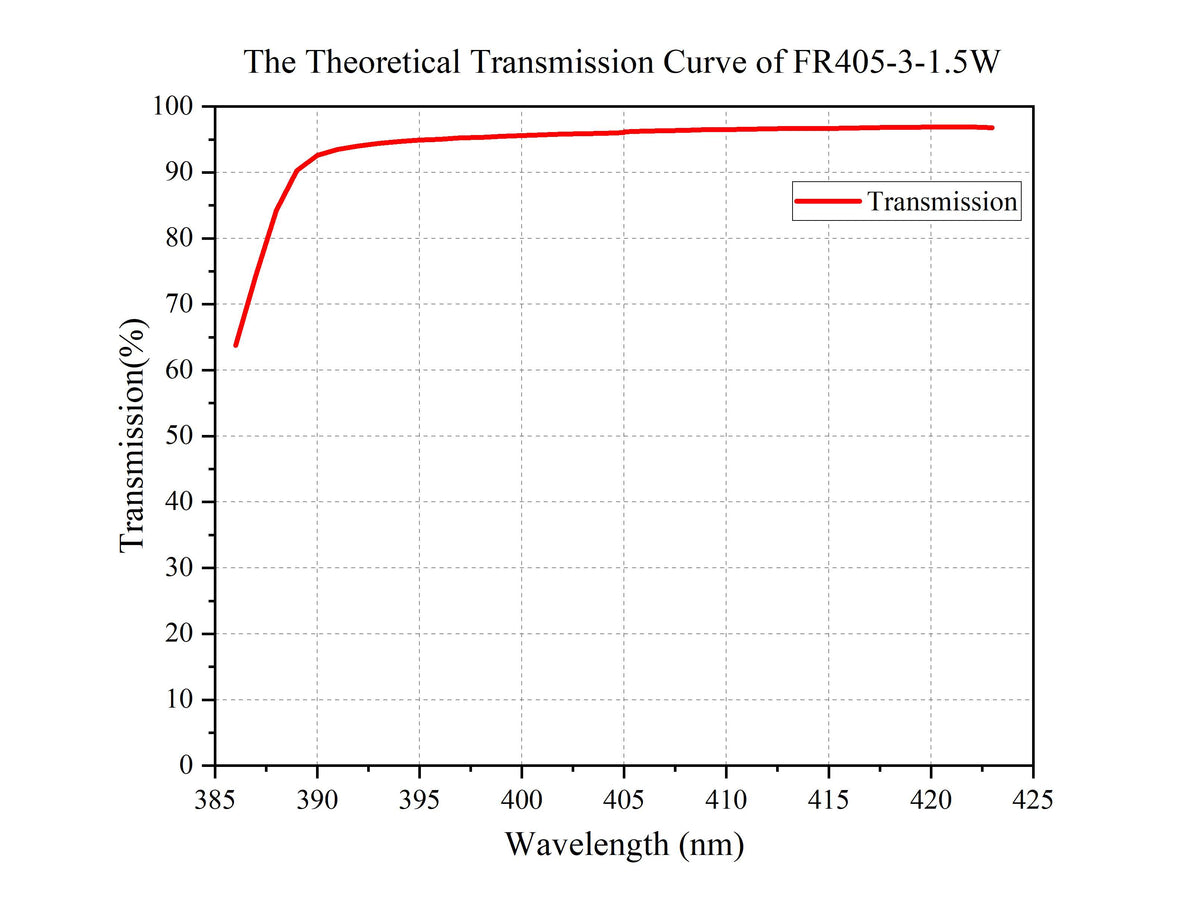

Faraday Rotators FR405-3-1.5W	`FR405-3-1.5W`	Ø3.0 mm	405 nm±10 nm	405 nm	View

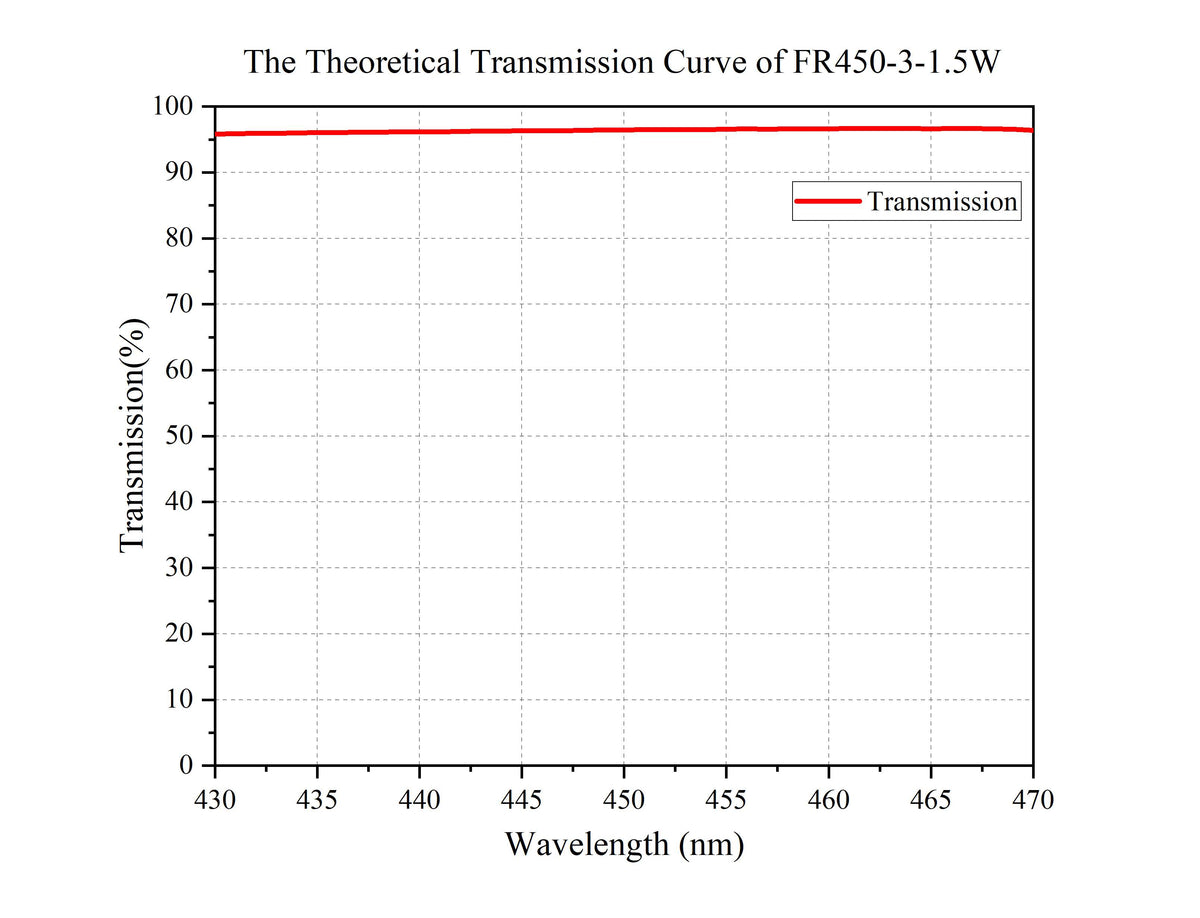

Faraday Rotators FR450-3-1.5W	`FR450-3-1.5W`	Ø3.0 mm	450 nm±10 nm	450 nm	View
Faraday Rotators FR532-3-1.5W	`FR532-3-1.5W`	Ø3.0 mm	532 nm±10 nm	532 nm	View
Faraday Rotators FR633-3-1.5W Current	`FR633-3-1.5W`	Ø3.0 mm	633 nm±10 nm	633 nm

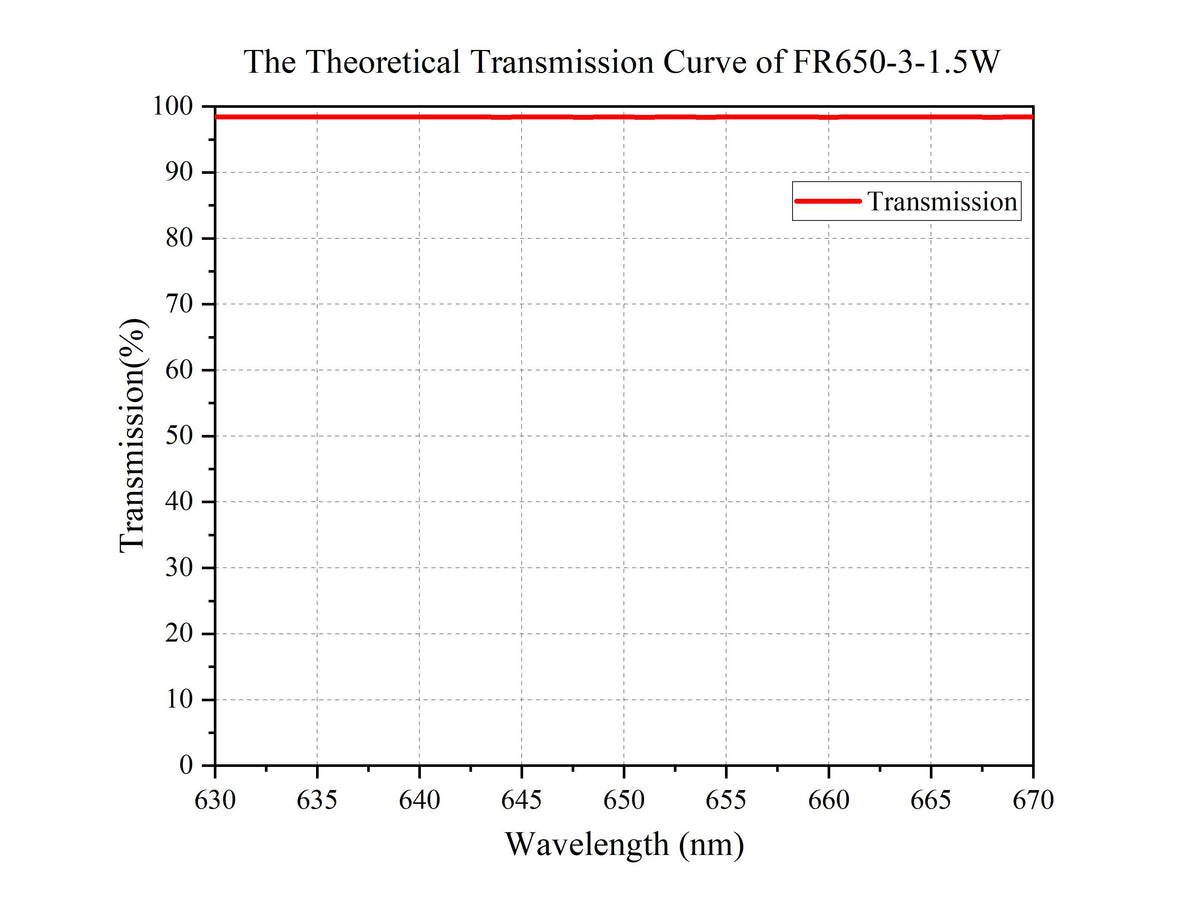

Faraday Rotators FR650-3-1.5W	`FR650-3-1.5W`	Ø3.0 mm	650 nm±10 nm	650 nm	View

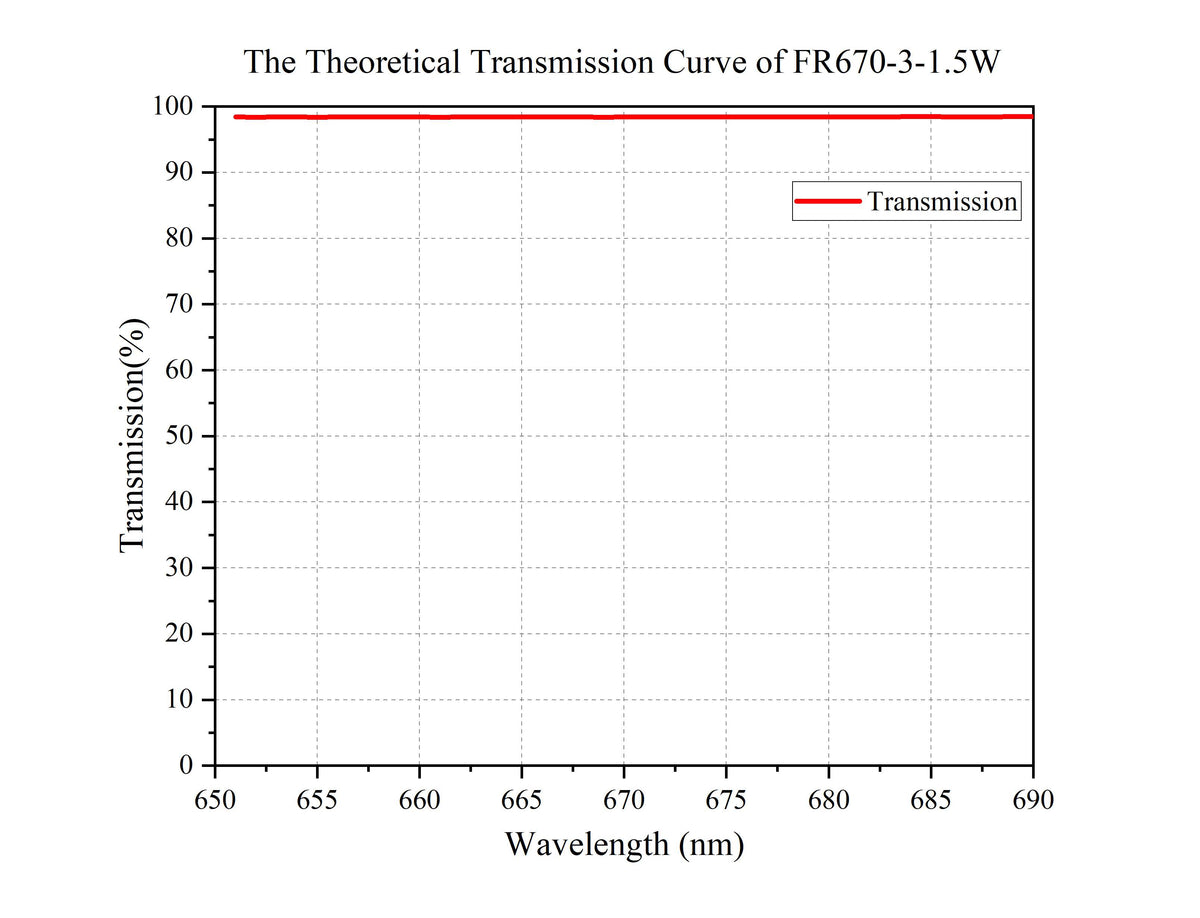

Faraday Rotators FR670-3-1.5W	`FR670-3-1.5W`	Ø3.0 mm	670 nm±10 nm	670 nm	View

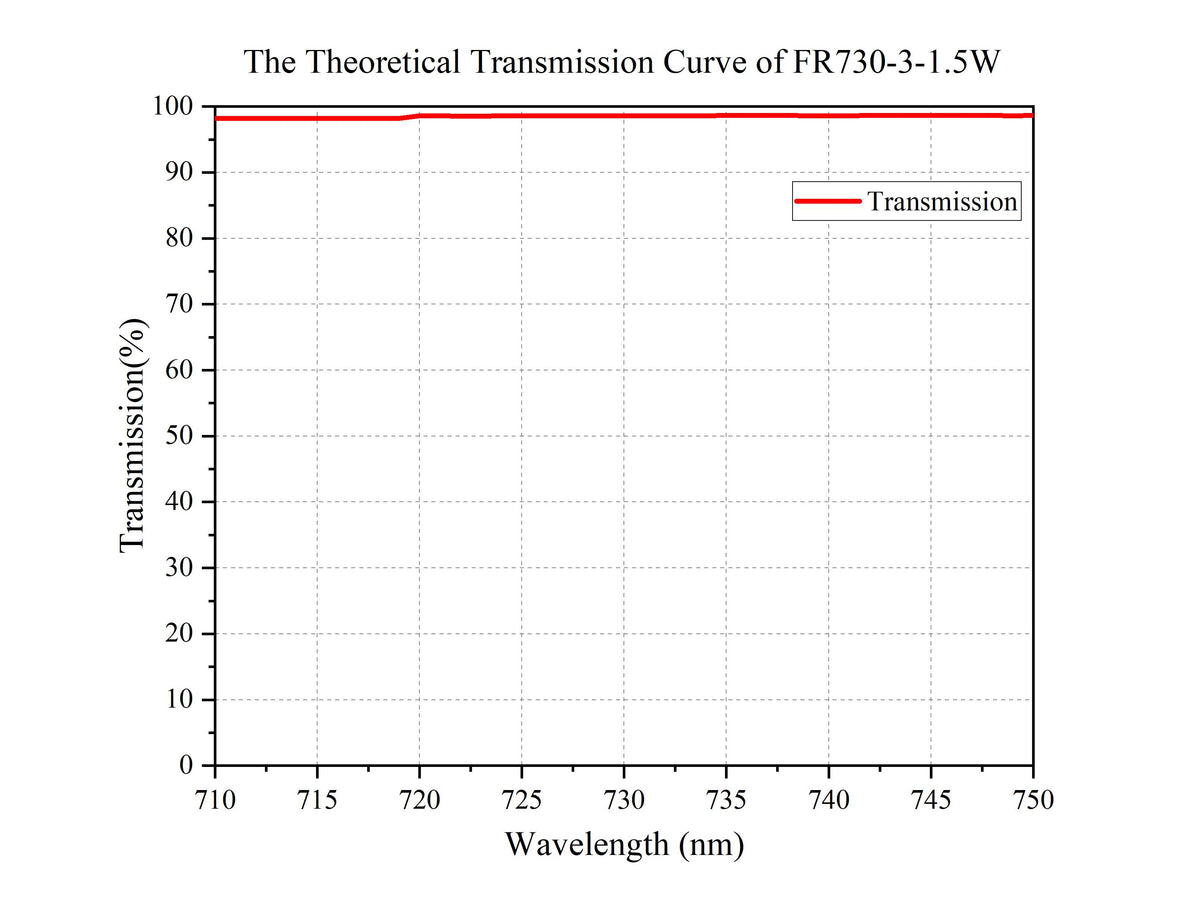

Faraday Rotators FR730-3-1.5W	`FR730-3-1.5W`	Ø3.0 mm	730 nm±10 nm	730 nm	View

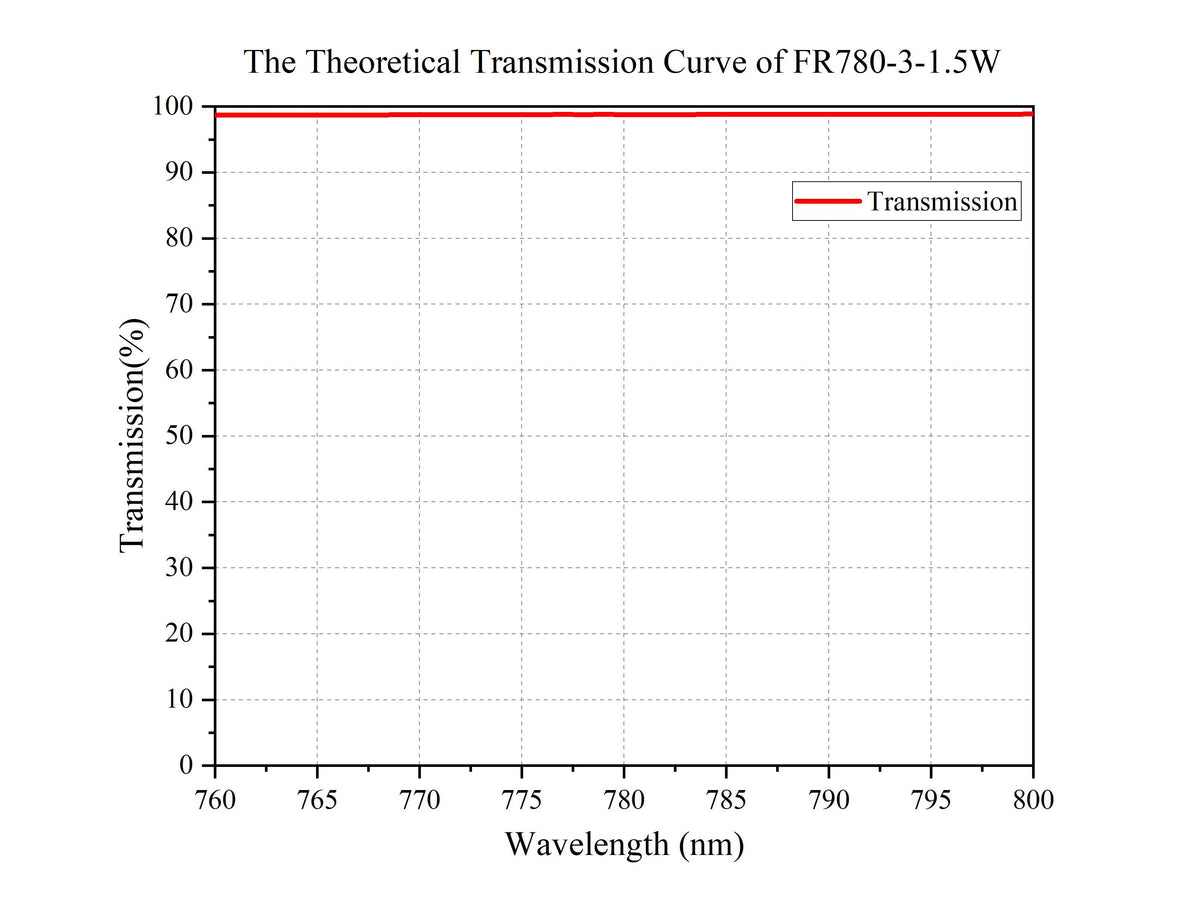

Faraday Rotators FR780-3-1.5W	`FR780-3-1.5W`	Ø3.0 mm	780 nm±10 nm	780 nm	View

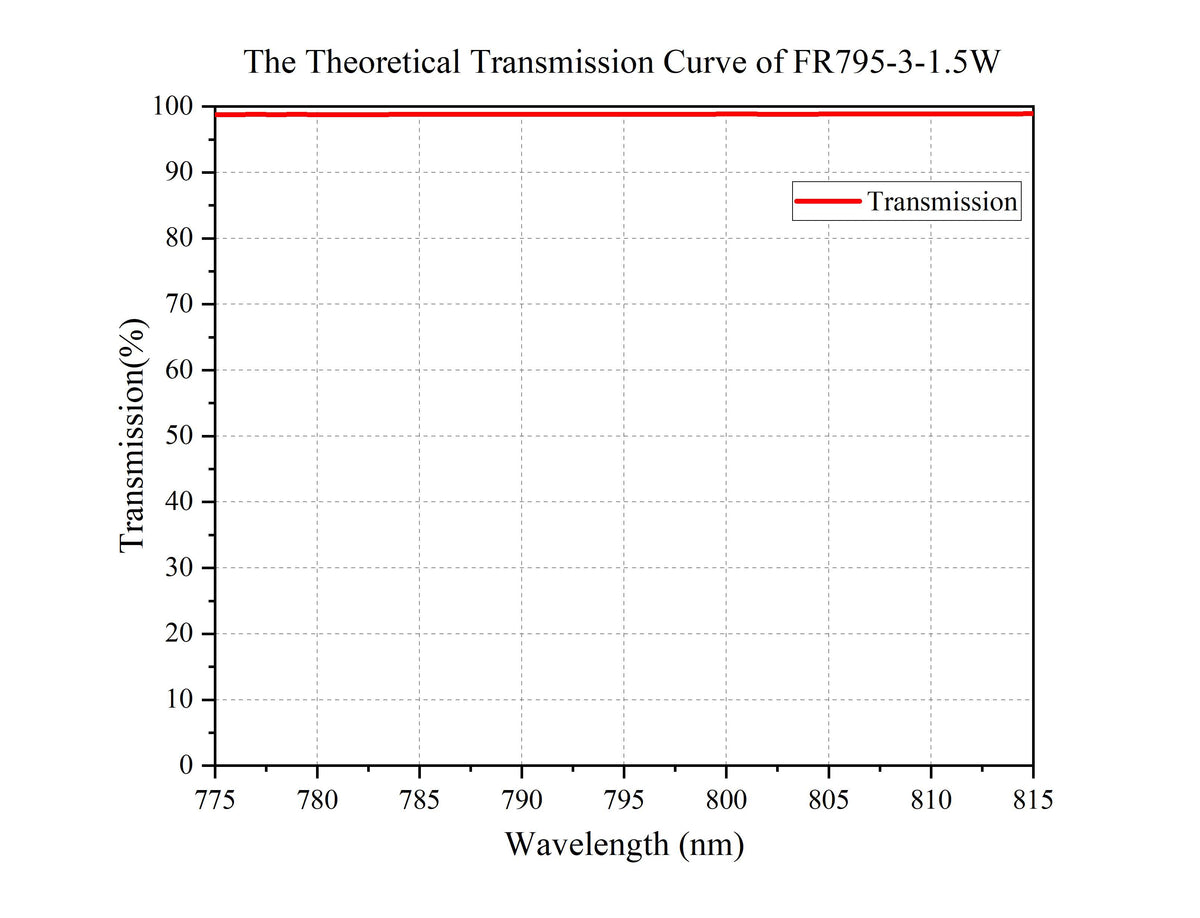

Faraday Rotators FR795-3-1.5W	`FR795-3-1.5W`	Ø3.0 mm	795 nm±10 nm	795 nm	View
Faraday Rotators FR850-3-1.5W	`FR850-3-1.5W`	Ø3.0 mm	850 nm±10 nm	850 nm	View

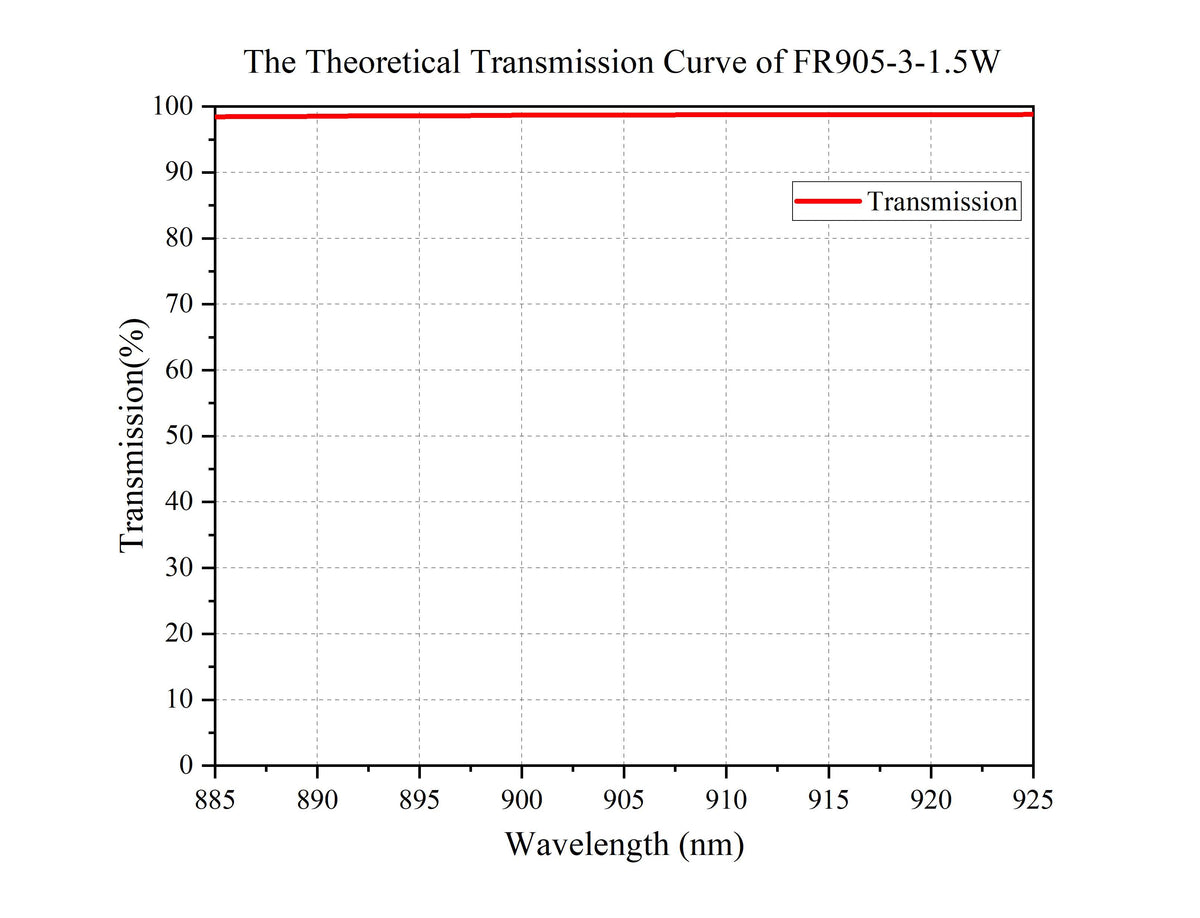

Faraday Rotators FR905-3-1.5W	`FR905-3-1.5W`	Ø3.0 mm	905 nm±10 nm	905 nm	View

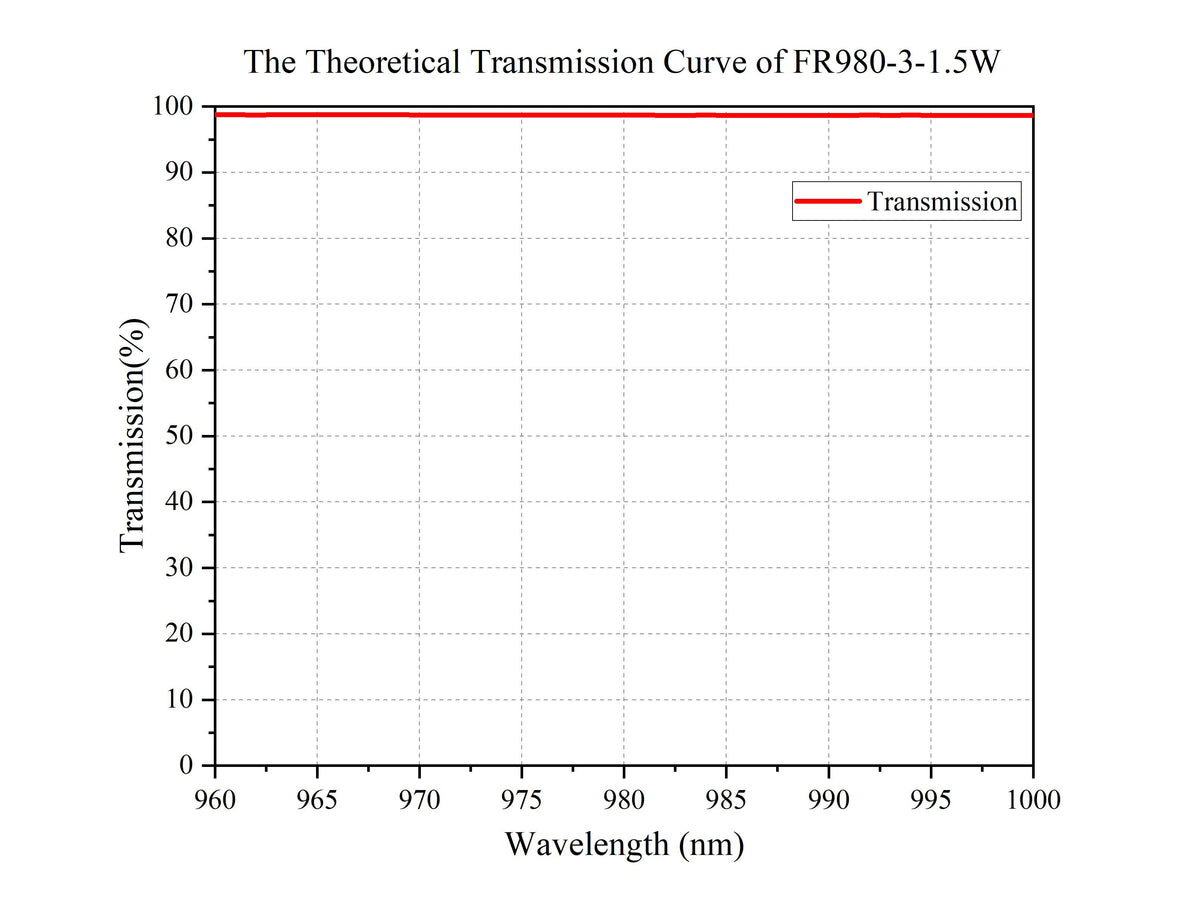

Faraday Rotators FR980-3-1.5W	`FR980-3-1.5W`	Ø3.0 mm	980 nm±10 nm	980 nm	View

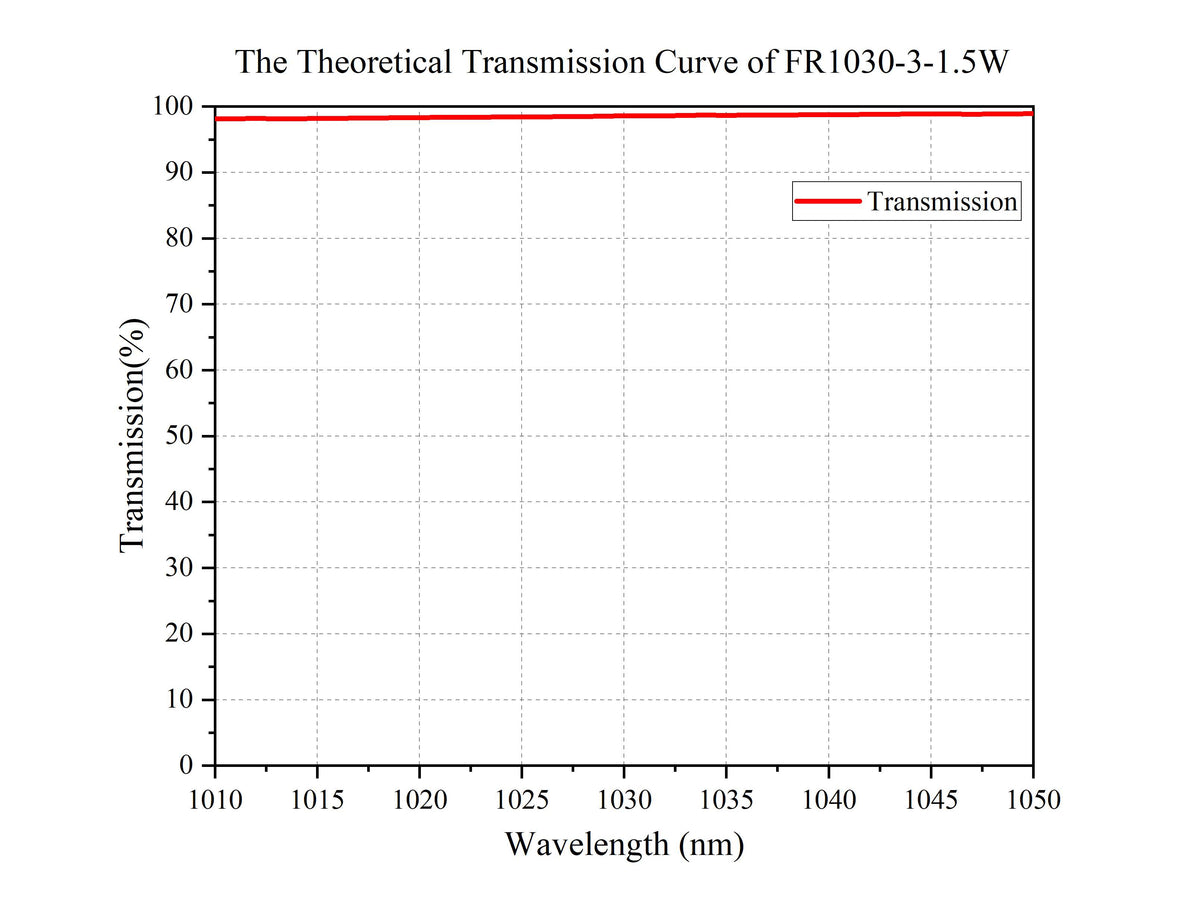

Faraday Rotators FR1030-3-1.5W	`FR1030-3-1.5W`	Ø3.0 mm	1030 nm±10 nm	1030 nm	View

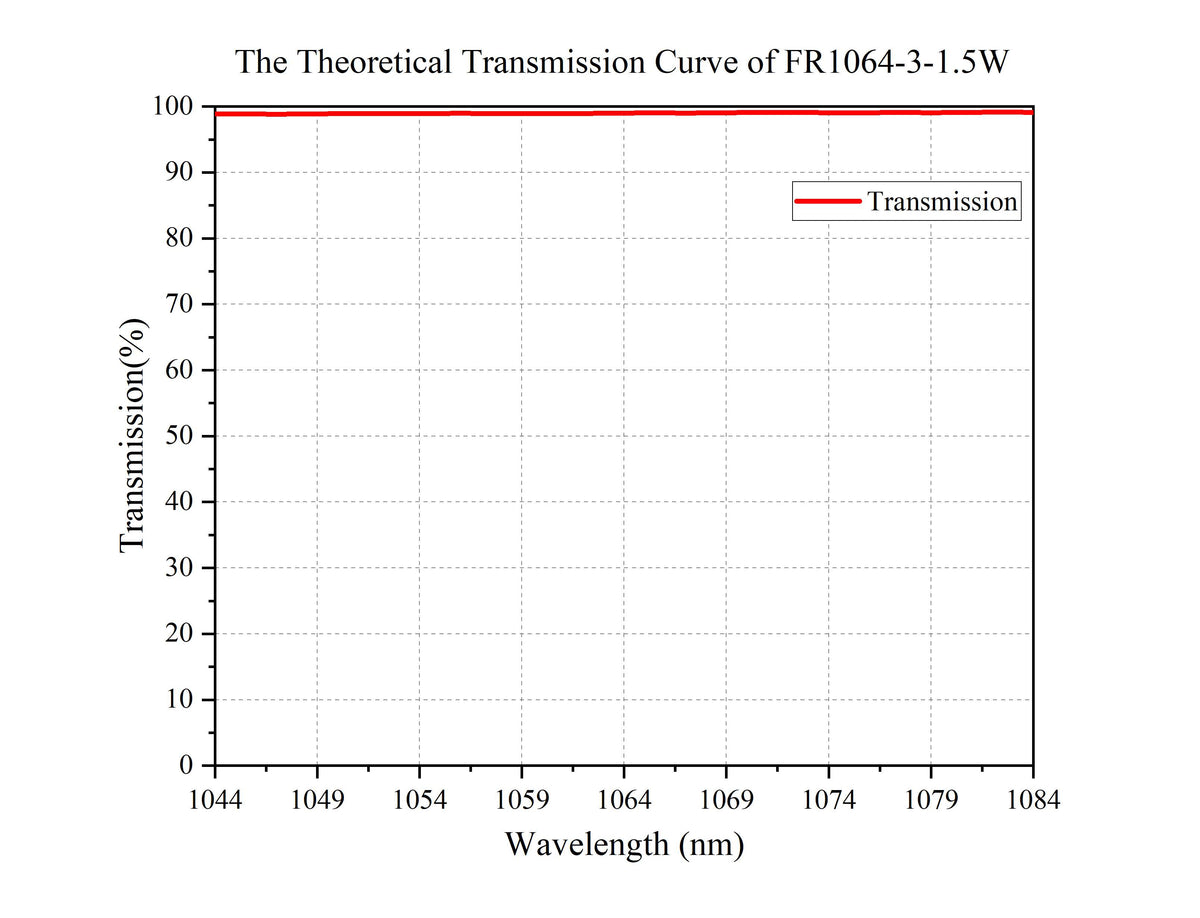

Faraday Rotators FR1064-3-1.5W	`FR1064-3-1.5W`	Ø3.0 mm	1064 nm±10 nm	1064 nm	View
Faraday Rotators FR635-3-1.5W	`FR635-3-1.5W`	Ø3.0 mm	635 nm±10 nm	635 nm	View
