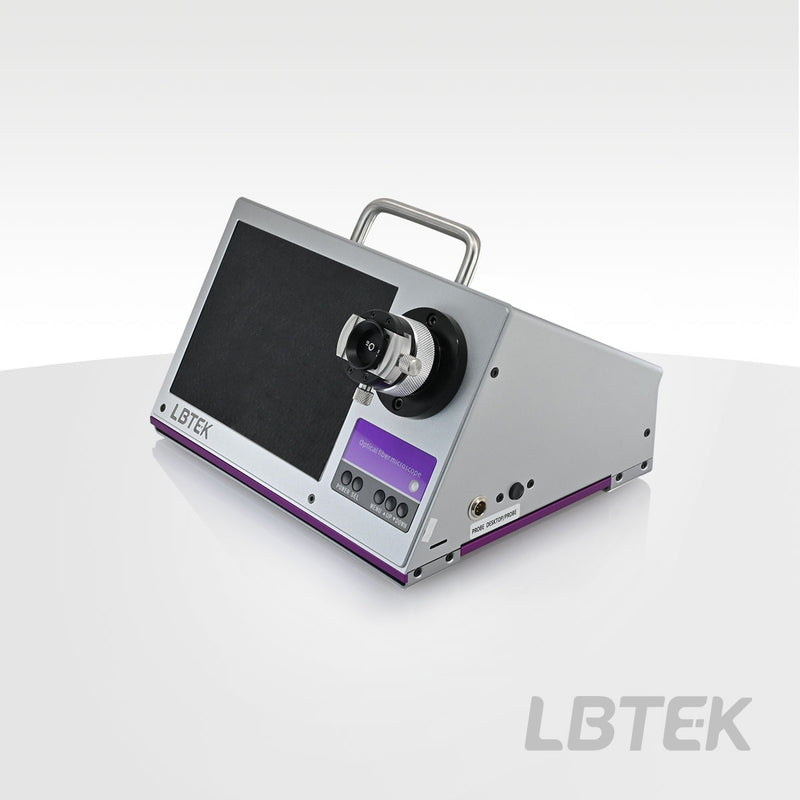

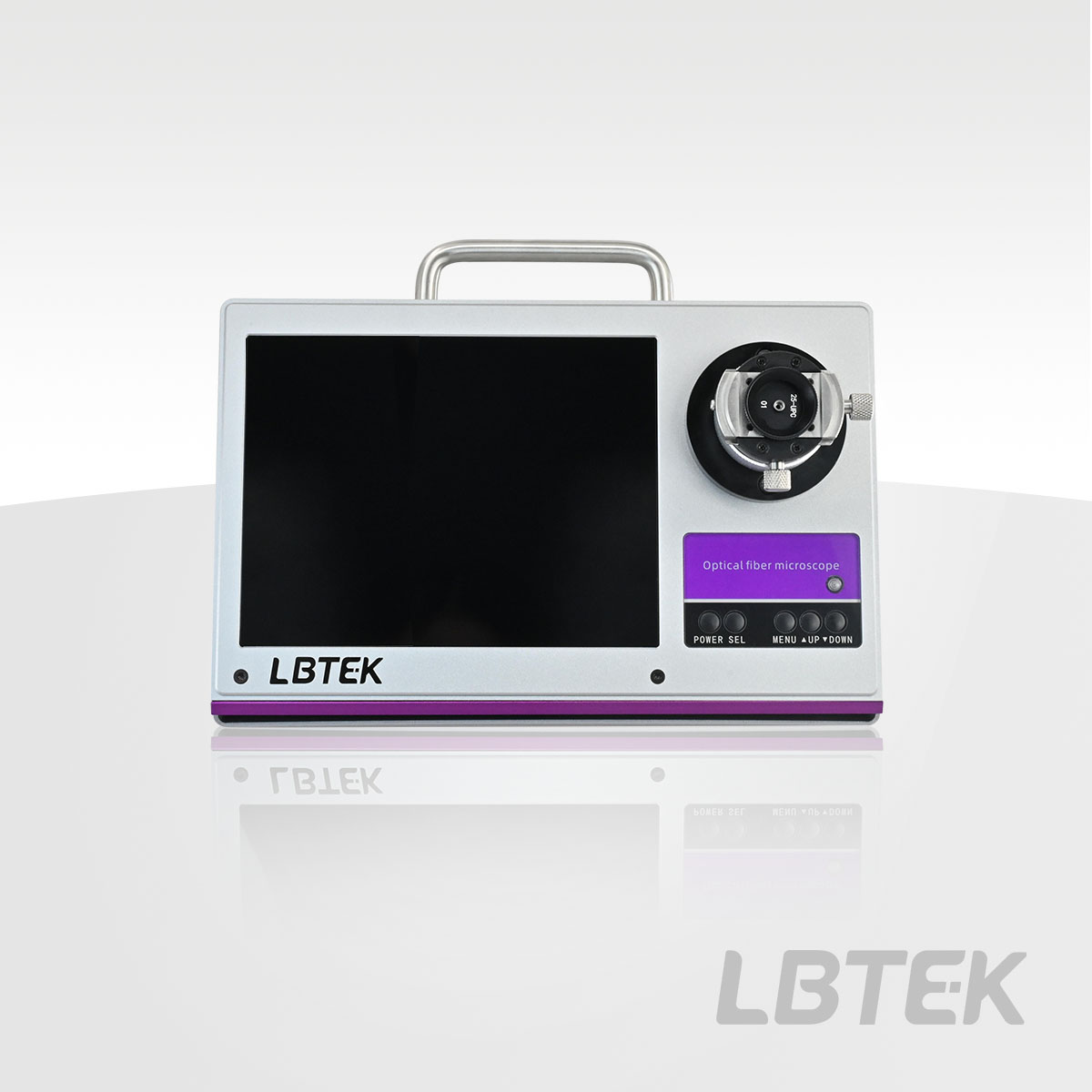

Fiber Endface Inspection Microscopes WLT-D400

The LBTEK Benchtop Fiber Endface Inspection Microscope is equipped with a high-definition, high-resolution TFT display, capable of producing high-quality, low-distortion imaging of fiber endfaces and their surroundings. This microscope features a high-intensity illumination system and 200X/400X magnification, sufficient to provide clear images of both the fiber core and surrounding cladding. The LBTEK benchtop fiber endface inspection microscope offers two types of ferrule adapters: Ø2.5 mm and Ø1.25 mm. The Ø2.5 mm ferrule adapter is suitable for FC and SC fiber jumpers, while the Ø1.25 mm ferrule adapter is designed for LC fibers. Note: The fiber endface inspection microscope must not be used to inspect fibers connected to active light sources. For operating instructions, please refer to the electronic manual under details.

• 200X/400X magnification selectable
• High-definition 8-inch TFT screen
• With Ø2.5 mm/Ø1.25 mm two types of ferrule adapters
• Compatible with SC, FC, LC connectors
• Anti-static interference
